Lanview LVO-101010 optický rozvádzač ODF, LC SM OS2, 12 vlákien, 1HE

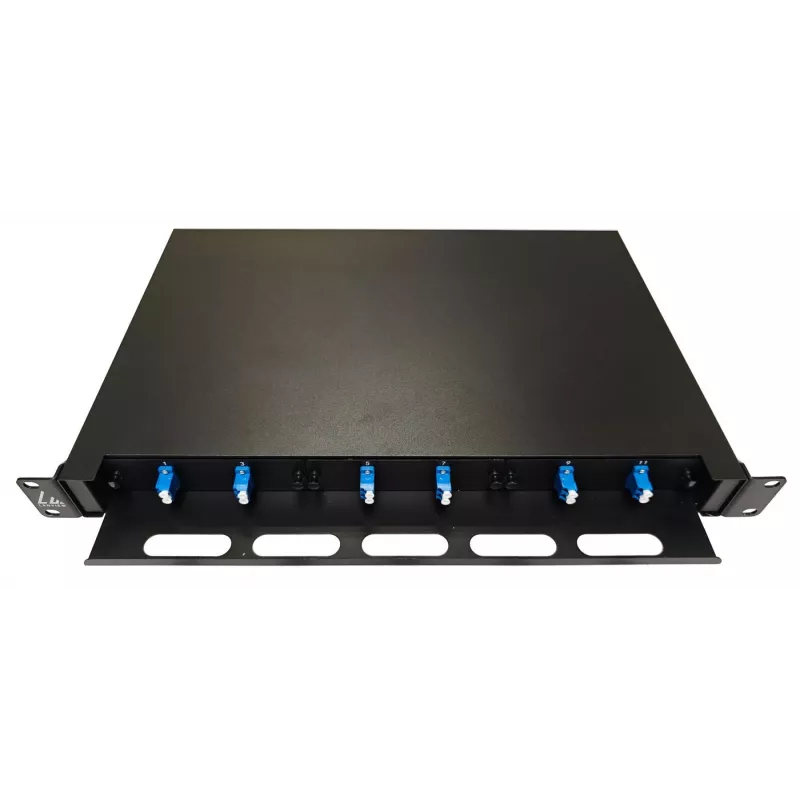

1U indoor 19-inch sliding rack panel ODF with 12-core, 6-port LC duplex configuration. The panel comes fully loaded with LC/UPC singlemode duplex adapters and includes 1 m LSZH colour-coded LC/UPC G.657.A2 pigtails (0.9 mm) for straightforward connection and fibre management.

Advantages

The sliding 1U design provides easy access for installation and maintenance while keeping a compact 19-inch footprint suitable for standard racks. Preloaded LC/UPC SM duplex adapters and colour-coded G.657.A2 pigtails reduce installation time and minimise the need for on-site termination. LSZH jacketed pigtails improve safety in indoor environments.

Suitable for

• Telecommunication equipment rooms
• Data centre patching and fibre management
• FTTx and building backbone installations
• LAN closets and network distribution panels

Key specifications

• Form factor: 1U, 19-inch sliding panel
• Fibre count: 12 cores (6 LC duplex ports)
• Adapters: LC/UPC singlemode duplex, fully loaded
• Pigtails: LC/UPC G.657.A2, 0.9 mm, 1 m, LSZH, colour-coded
• Indoor use

How to use

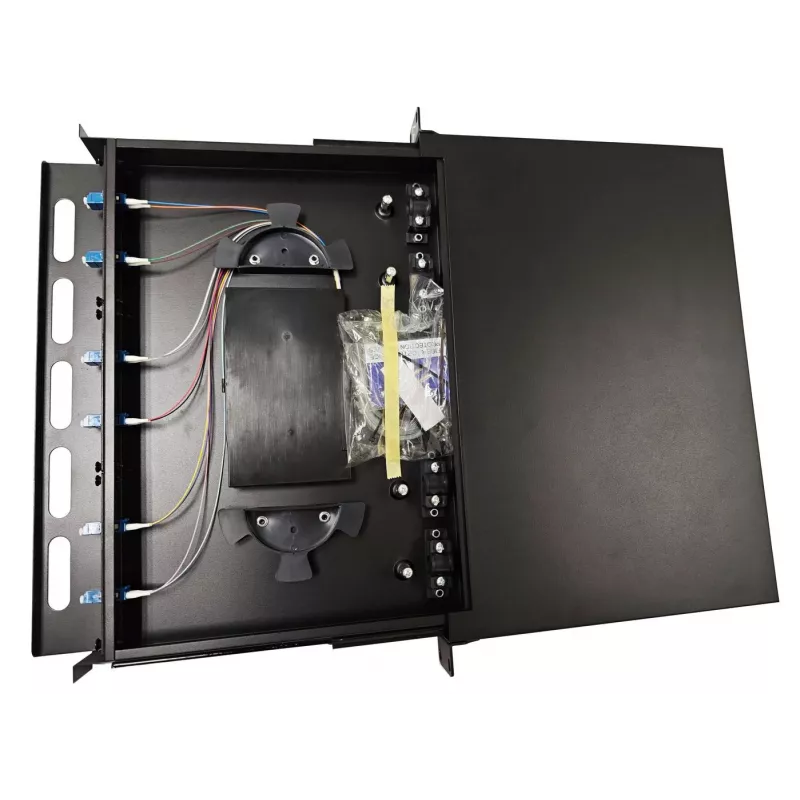

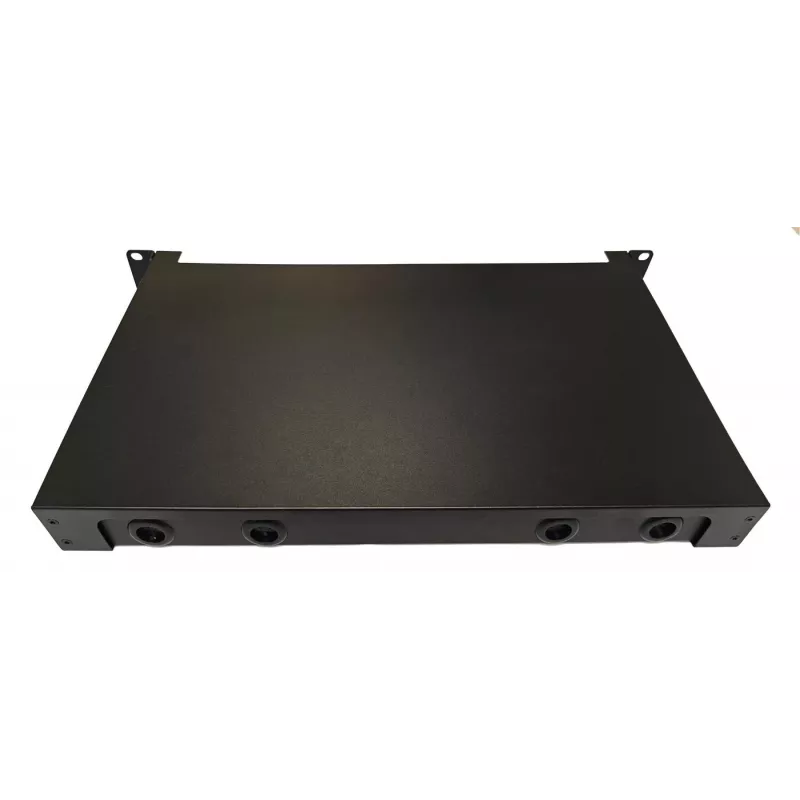

Mount the 1U sliding panel in a standard 19-inch rack. Route incoming backbone fibres to the rear or specified entry points and connect to the preloaded LC/UPC adapters. Use the provided colour-coded LC/UPC G.657.A2 pigtails to splice to feeder fibres or to connect directly to equipment patch cords. Slide the panel out to access adapters and pigtails during installation or service, then secure the panel back in place.

Recommendations

Handle fibres and pigtails using appropriate ESD and fibre-cleaning procedures. Use compatible singlemode LC/UPC patch cords and maintain bend-radius guidelines for G.657.A2 fibres. Keep the unit in a clean, dry indoor environment and avoid exposure to mechanical strain on pigtails.
