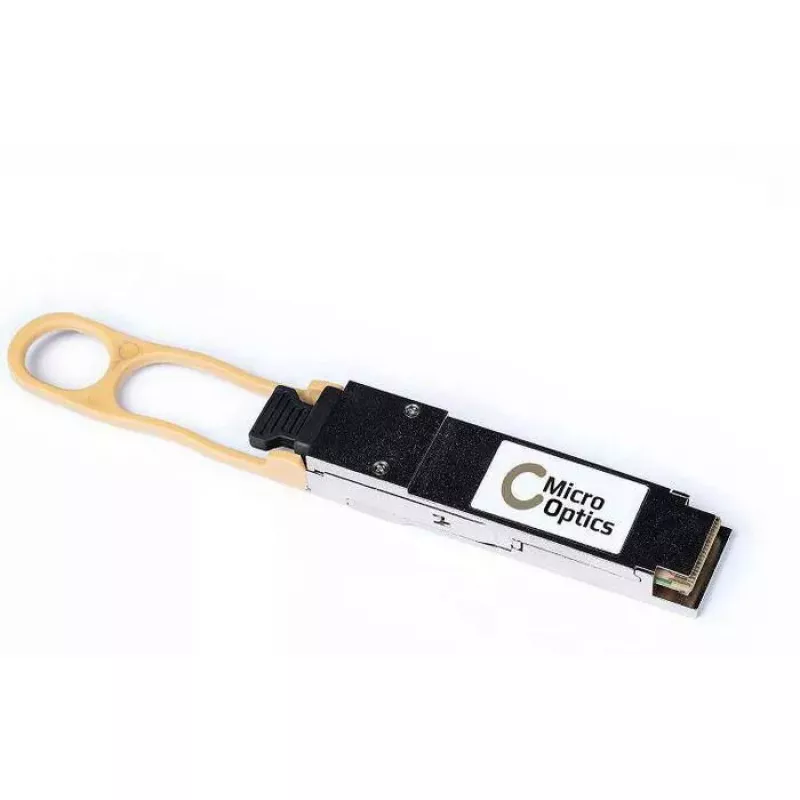

Lanview MO-G-QSFP28-100G-SR4 sieťový transceiver modul optické vlákno 100.000 Mbit/s 850 nm

The Lanview MO-G-QSFP28-100G-SR4 is a 100G multimode fiber optic transceiver module operating at 850 nm, designed for high-density data center and enterprise networking environments. It complies with RoHS and MSA standards and is compatible with QSFP28-100G-SR4 interfaces, providing a straightforward upgrade path for existing hardware that supports short-reach 100 Gigabit Ethernet links.

Advantages

This transceiver offers 100G data rate capability in a QSFP28 form factor, ensuring compatibility with a wide range of switches and routers that accept QSFP28-100G-SR4 modules. The 850 nm multimode design supports short-reach connections over multimode fiber, simplifying interconnects in racks and across adjacent equipment. Compliance with RoHS and MSA ensures industry-standard interoperability and environmental conformity.

Suitable for

• 100 Gigabit Ethernet short-reach links in data centers
• Server-to-switch and switch-to-switch connections within the same facility
• High-density aggregation and spine-leaf architectures

Key specifications

• Brand: Lanview
• Model / MPN: MO-G-QSFP28-100G-SR4
• Data rate: 100 Gbps
• Wavelength: 850 nm
• Form factor: QSFP28 (compatible with QSFP28-100G-SR4)
• Standards: RoHS, MSA compatible
• EAN: 5715063211649

How to use

Install the MO-G-QSFP28-100G-SR4 module into a QSFP28 port on a compatible switch, router, or network interface card according to the host equipment instructions. Connect the appropriate multimode fiber cable (per SR4 pinout and MPO/MTP connector requirements) between endpoints. Verify link status and configure the network device as required for 100G operation.

Recommendations

Use high-quality multimode fiber and MPO/MTP cabling that meets the required insertion loss and polarity specifications for SR4 applications. Ensure equipment firmware and compatibility lists support third-party QSFP28-100G-SR4 modules if vendor lock-in checks are in place. Keep the module and connectors clean to maintain signal integrity.
