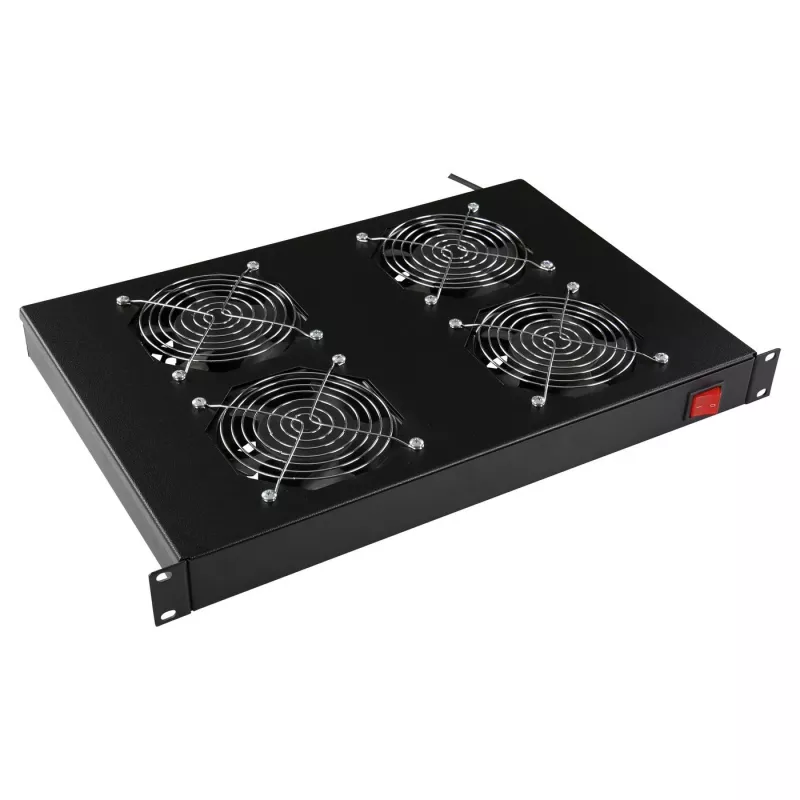

LANVIEW RAF315BL 1U racková ventilátorová jednotka s analógovým termostatom, 4 ventilátory

Unlike typical rack cooling solutions that rely on digital controllers or software, the LANVIEW RAF315BL offers direct mechanical temperature control via an analog thermostat. This 1U fan tray packs four ball-bearing fans into a rugged steel housing, delivering 765 m³/h of airflow to keep your network cabinet, server room, or AV rack within safe operating temperatures. The thermostat dial adjusts from 0°C to 60°C, allowing the fans to activate automatically when heat builds up—no network access or configuration needed. A manual on/off switch provides the flexibility to run the fans continuously for maximum cooling. Finished in black, it blends seamlessly with other rack-mounted equipment.

Highlights

• Four fans deliver a total airflow of 765 m³/h (approx. 450 CFM)
• Analog thermostat with adjustable range from 0°C to 60°C
• Compact 1U 19-inch rackmount form factor
• Ball bearing fans for extended service life
• IEC C14 power inlet for easy connection
• Manual on/off switch for continuous operation

In daily use

Install the RAF315BL in a free 1U slot of your 19-inch rack and connect it to a standard 230V AC outlet via the IEC C14 connector. Simply rotate the thermostat dial to your desired activation temperature; when the ambient temperature rises, the four fans will automatically start to push hot air out of the cabinet. A manual on/off switch provides the option to operate the fans continuously if needed. The robust steel housing in black blends seamlessly with other rack-mounted equipment.

Full specifications

• Number of fans: 4
• Thermostat type: Analog
• Thermostat temperature range: 0°C – 60°C
• Airflow: 765 m³/h (approx. 450 CFM)
• Noise level: 48 dB(A)
• Input voltage: 230V AC
• AC input frequency: 50/60 Hz
• Power consumption: 64 W
• Housing material: Steel
• Color: Black
• Power connector: IEC C14
• Fan bearing type: Ball bearing
• Operating temperature range: -10°C to 70°C
• Humidity range: 10% - 90% RH (non-condensing)
• Certifications: CE, RoHS
• Control features: Automatic (Thermostat), Manual On/Off

Final note

For reliable, maintenance-free rack ventilation without the complexity of digital controls, the LANVIEW RAF315BL is a straightforward and effective choice.
