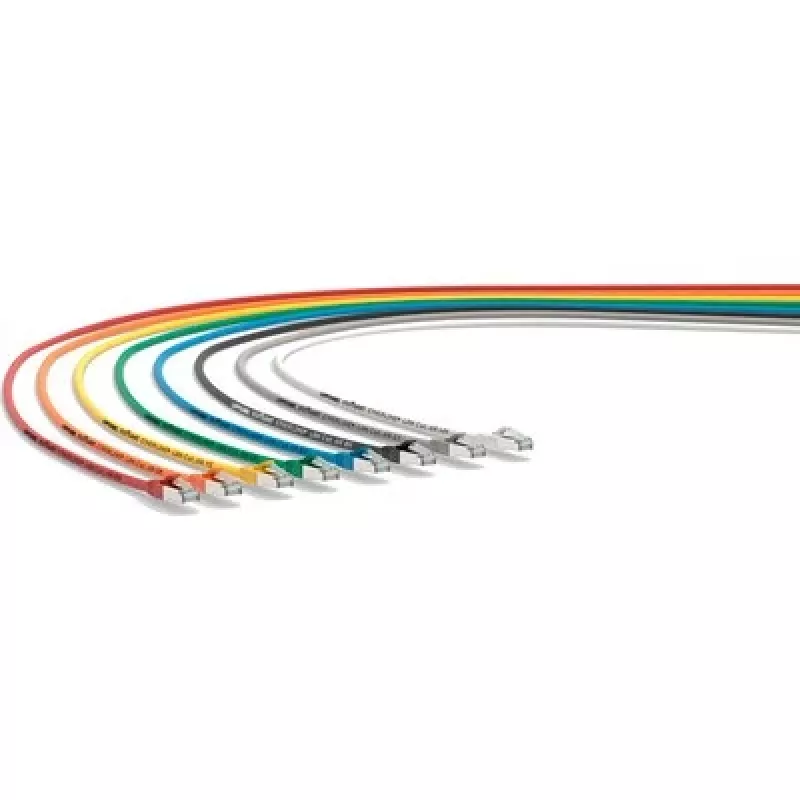

LAPP ETHERLINE LAN Cat.6A S/FTP patch kábel, 15 m, čierna 24441325

This LAPP ETHERLINE patch cable stands out with its Cat.6A rating and S/FTP shielding, delivering 10 Gigabit Ethernet over 15 metres without compromise. The black LSZH jacket and gold-plated RJ45 connectors make it a reliable choice for high-density installations where performance and safety matter.

Highlights

• Cat.6A performance up to 500 MHz
• S/FTP shielding: pairs in metal foil plus overall braid
• 10GBASE-T support for 10 Gigabit Ethernet
• Halogen-free LSZH jacket for low smoke and toxicity
• Gold-plated RJ45 connectors for reliable contact
• Flexible stranded copper conductors (AWG 26/7)

In daily use

This 15-metre cable is ideal for connecting servers, switches, and workstations in office or industrial environments. Its robust shielding protects against electromagnetic interference, while the LSZH jacket reduces hazardous emissions in the event of fire. The cable supports Power over Ethernet up to PoE++ (IEEE 802.3bt), so it can power devices like cameras or access points without a separate power supply.

Full specifications

• Cable length: 15 m
• Cable standard: Cat.6A (Class EA)
• Cable shielding: S/FTP (PiMF)
• Connector type: RJ45 (both ends)
• Connector plating: Gold
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Conductor material: Copper
• Conductor construction: Stranded
• Conductor gauge: AWG 26/7
• Number of pairs: 4
• Wiring standard: TIA/EIA-568B
• Bandwidth: 500 MHz
• Data transfer rate: 10 Gbps
• Flame retardancy: IEC 60332-1-2 compliant
• Halogen-free: Yes (IEC 60754-1/2 compliant)
• Low smoke: Yes (IEC 61034-2 compliant)
• Operating temperature: -20°C to +60°C
• PoE support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)

Final note

For demanding 10G networks, this LAPP cable provides the shielding and performance needed to maintain signal integrity over longer runs.
