Lenovo AUZX interná Ethernet karta 1000 Mbit/s

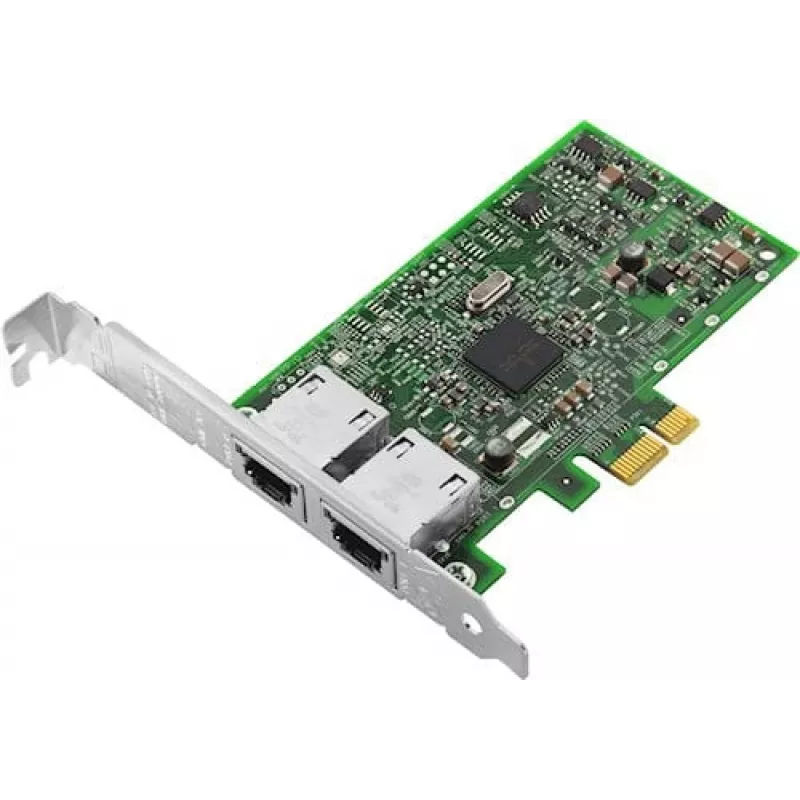

The Lenovo AUZX Internal Ethernet Card is a wired PCI Express network adapter that provides a maximum data transfer rate of 1000 Mbit/s. Designed for installation in compatible servers and workstations, the card supports standard Ethernet features and energy-efficient networking, offering a compact green-coloured design suitable for various system builds.

Advantages

The card delivers stable gigabit connectivity via a PCI Express interface and supports IEEE 802.1Q VLAN tagging and IEEE 802.3az energy-efficient Ethernet for reduced power consumption. Its single-port internal design and standard networking compliance make it straightforward to deploy in compatible Lenovo ThinkSystem and System x platforms as well as other PCIe-capable systems.

Suitable for

• Upgrading or adding wired network connectivity in servers and workstations
• Environments requiring stable gigabit Ethernet connections
• Systems where low-power network operation is desirable

Key specifications

• Brand: Lenovo
• Model / MPN: 7ZT7A00482
• EAN: 0889488433582
• Interface: PCI Express (host interface)
• Connectivity technology: Wired Ethernet
• Maximum data transfer rate: 1000 Mbit/s
• Networking standards: IEEE 802.1Q, IEEE 802.3az
• Product colour: Green

How to use

Power down the host system, open the chassis and insert the Lenovo AUZX card into an available PCI Express slot according to the server or workstation manual. Secure the card, close the chassis, and power on the system. Install any required drivers provided by the operating system or Lenovo to enable full functionality. Configure network settings such as IP addressing and VLANs as needed through the host OS or management tools.

Recommendations

Install the card in a compatible PCIe slot and verify firmware and driver compatibility with your operating system and server model. For optimal performance, use quality cabling and network infrastructure rated for gigabit Ethernet.
