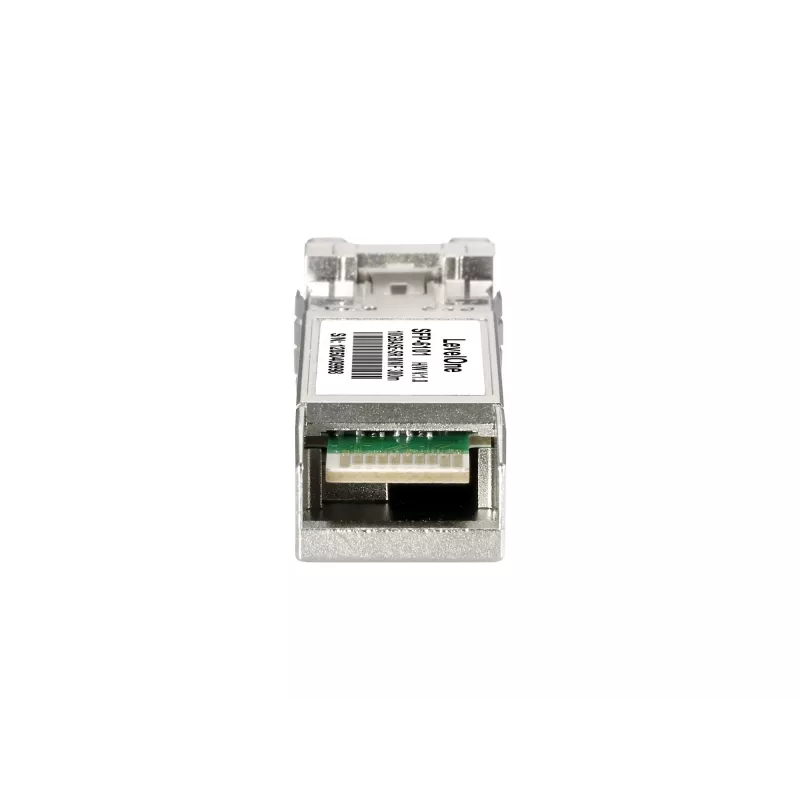

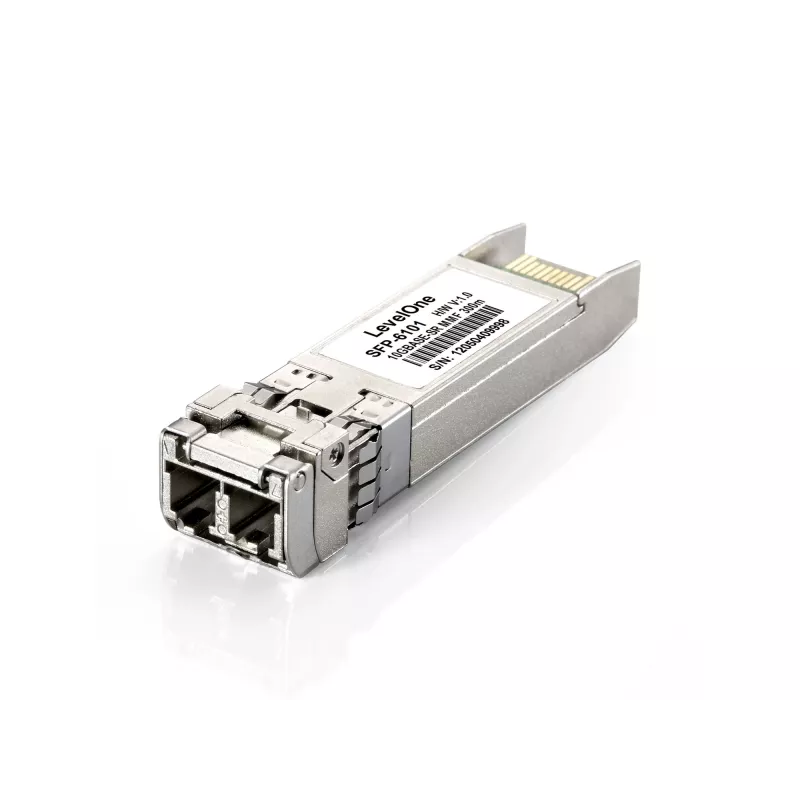

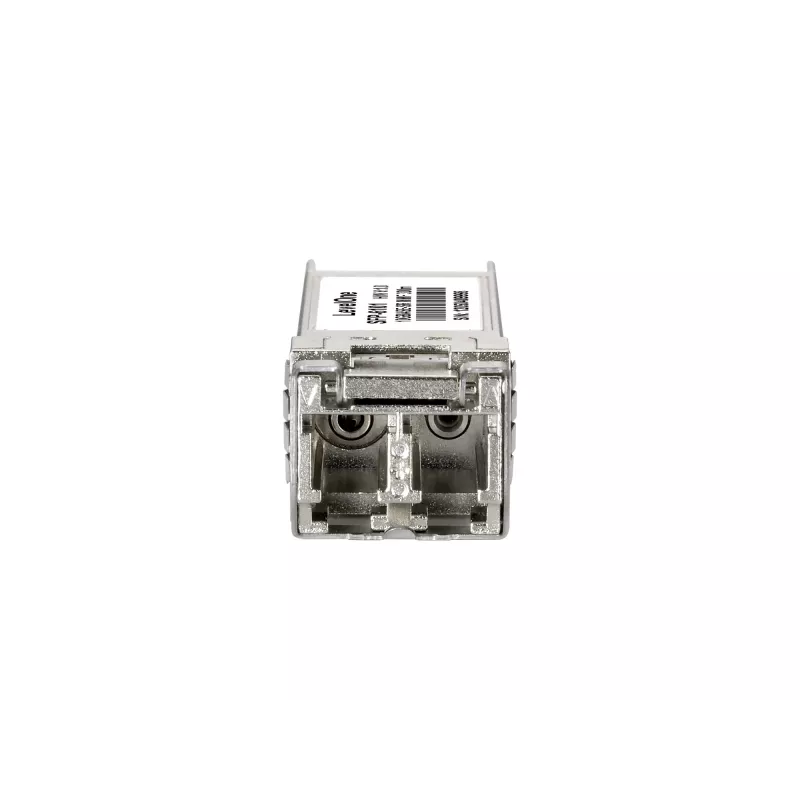

LevelOne 10Gbps multimódový SFP+ transceiver, 300m, 850nm

The LevelOne SFP+ Transceiver is a hot-swappable 10Gbps optical module designed for short-reach multimode fiber links. It transmits serial data at 10 Gbps over duplex multimode fiber using an 850 nm wavelength and supports distances up to 300 m. The compact module (57 mm × 12 mm × 13.7 mm) draws 3.3 V input power and is CE/FCC certified for use in data centers, enterprise networks and storage area networks.

Advantages

This SFP+ transceiver complies with the SFP Multi-Sourcing Agreement (MSA) for interoperability with MSA-compliant devices and supports Digital Optical Monitoring (DOM) / Digital Diagnostics Monitoring Interface (DDMI) for real-time status and diagnostic readouts. The module is hot-swappable for uninterrupted service, uses a duplex LC connector and is engineered for reduced power consumption at ultra-high speeds.

Suitable for

• 10GbE short-reach multimode fiber links (up to 300 m)
• Data centers and server interconnects
• Enterprise network aggregation and distribution
• Storage area network (SAN) connectivity

Key specifications

• Interface type: SFP+
• Wavelength: 850 nm (multimode)
• Maximum data transfer rate: 10,000 Mbit/s (10 Gbps)
• Maximum distance: 300 m (MMF)
• Connector: duplex LC
• Operating temperature: 0 °C to 70 °C
• Dimensions: 57 mm × 12 mm × 13.7 mm
• Input voltage: 3.3 V
• Certifications: CE, FCC
• Brand / MPN / EAN: LEVELONE / 551103 / 4015867180594

How to use

Install the SFP+ transceiver into an SFP+ slot on a compatible switch, router or network device following the device manufacturer’s hot-swap procedure. Connect duplex multimode fiber with LC connectors, ensuring correct orientation of transmit and receive fibers. After insertion, verify link status and DOM/DDMI readings through the host device management interface to confirm proper operation.

Recommendations

Use clean, undamaged multimode fiber and appropriate LC connectors; follow ESD precautions during handling, operate within the specified temperature range (0 °C to 70 °C), and confirm compatibility with the host device’s SFP+ implementation and MSA compliance for reliable performance.
