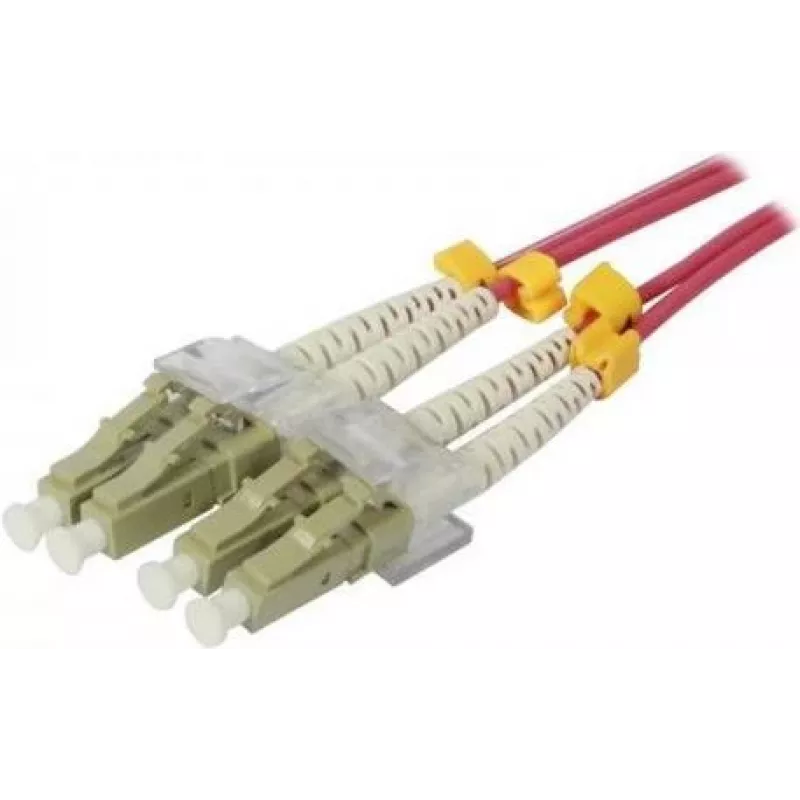

SYNERGY21 optický patch kábel 15 m LSZH OM4 LC duplex fialový (S216770)

The SYNERGY21 S216770 is a high-performance fiber optic patch cable designed for demanding network environments. With a length of 15 meters and OM4 multimode fiber, it ensures reliable high-speed data transmission for data centers, enterprise networks, and telecommunications applications. The cable features LC duplex connectors on both ends, a violet LSZH (Low Smoke Zero Halogen) jacket for safety, and complies with international standards.

Advantages

This cable offers low insertion loss and high return loss, ensuring minimal signal degradation. The OM4 fiber supports high bandwidth over long distances, making it ideal for 40G and 100G Ethernet applications. The LSZH jacket reduces toxic smoke in case of fire, enhancing safety in confined spaces.

Suitable for

• Data center interconnects
• Enterprise network cabling
• Telecommunications infrastructure
• High-speed Ethernet (10G, 40G, 100G)

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode
• Fiber Class: OM4
• Connector Type A: LC Duplex
• Connector Type B: LC Duplex
• Cable Length: 15 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Violet
• Number of Fibers: 2
• Core/Cladding Diameter: 50/125 µm
• Insertion Loss (Typical): < 0.3 dB
• Return Loss (Typical): > 30 dB
• Attenuation @ 850nm: 2.3 dB/km
• Attenuation @ 1300nm: 0.6 dB/km
• Bandwidth @ 850nm (OFL): 4700 MHz*km
• Bandwidth @ 1300nm (OFL): 500 MHz*km
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Cable Diameter: 3.0 mm
• Standards Compliance: IEC 60793, TIA/EIA-568-C.3, RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC duplex interfaces. Pair with SYNERGY21 patch panels and enclosures for a complete cabling solution.
