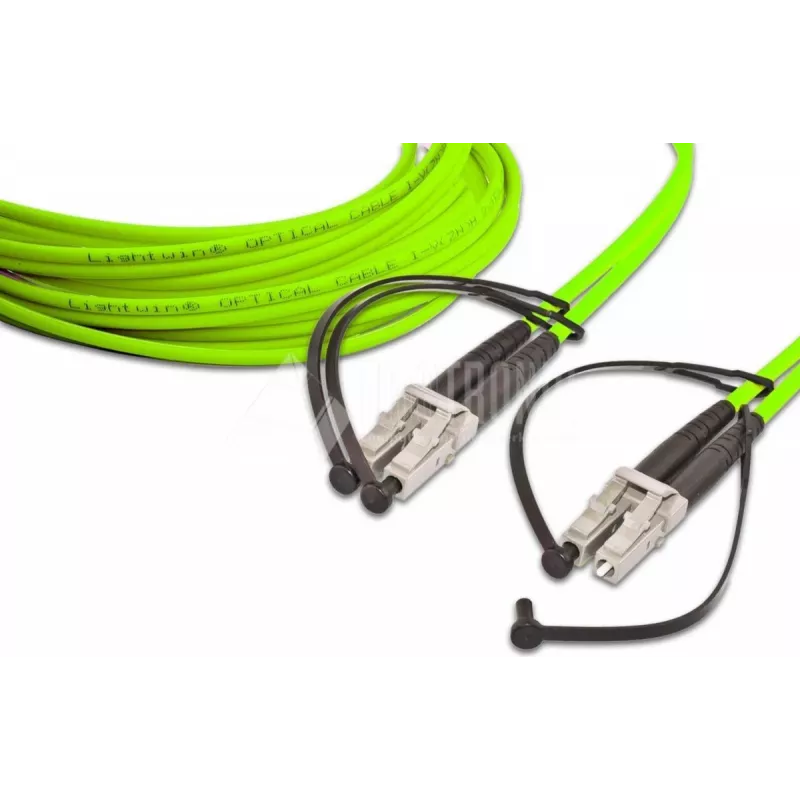

Lightwin LDP-50 LC-LC 5.0 OM5 optický patch kábel, 5m, žltý, duplex, 50/125µm, LSZH

Engineered for next-generation data centers, this OM5 fiber optic patch cable supports up to 400 Gbps over 150 meters using SWDM4 technology, making it a future-proof backbone for high-density networking. The duplex LC connectors with UPC polish ensure low insertion loss and reliable connectivity in demanding environments.

Overview

The Lightwin LDP-50 LC-LC 5.0 OM5 is a 5-meter multimode fiber patch cable designed for high-speed data transmission in data centers, SANs, and enterprise LANs. It features OM5 laser-optimized fiber with a 50/125µm core/cladding diameter, enabling extended reach for 40G, 100G, and 400G Ethernet applications. The cable is terminated with duplex LC connectors on both ends, providing a secure and efficient connection for modern network equipment.

What stands out

• OM5 fiber supports SWDM4 wavelengths from 850nm to 953nm, allowing four simultaneous channels over a single fiber pair.
• Low insertion loss of less than 0.3 dB ensures minimal signal degradation.
• LSZH jacket material emits low smoke and zero halogen, enhancing safety in enclosed spaces.
• Yellow jacket color provides easy identification of OM5 multimode fiber.
• Duplex LC connectors with UPC polish are compatible with high-density patch panels and transceivers.

Technical details

• Cable type: Fiber optic patch cable, multimode OM5
• Connector type: LC Duplex to LC Duplex, UPC polish
• Cable length: 5 meters
• Fiber core/cladding diameter: 50/125 µm
• Number of fibers: 2 (duplex)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Yellow
• Insertion loss (typical): < 0.3 dB
• Return loss (typical): > 30 dB
• Maximum bandwidth: 100 Gbps up to 150m, 400 Gbps up to 150m with SWDM4
• Wavelength support: 850nm to 953nm
• Attenuation @ 850nm: 2.5 dB/km
• Attenuation @ 953nm: 2.3 dB/km
• Operating temperature: -20°C to 70°C
• Standards compliance: TIA/EIA-568-C.3, ISO/IEC 11801, EN 50173

Our verdict

For network architects planning for 100G and beyond, the Lightwin LDP-50 OM5 cable delivers the performance and reliability needed to maximize infrastructure investments. Its LSZH jacket and low insertion loss make it a smart choice for both performance and safety.
