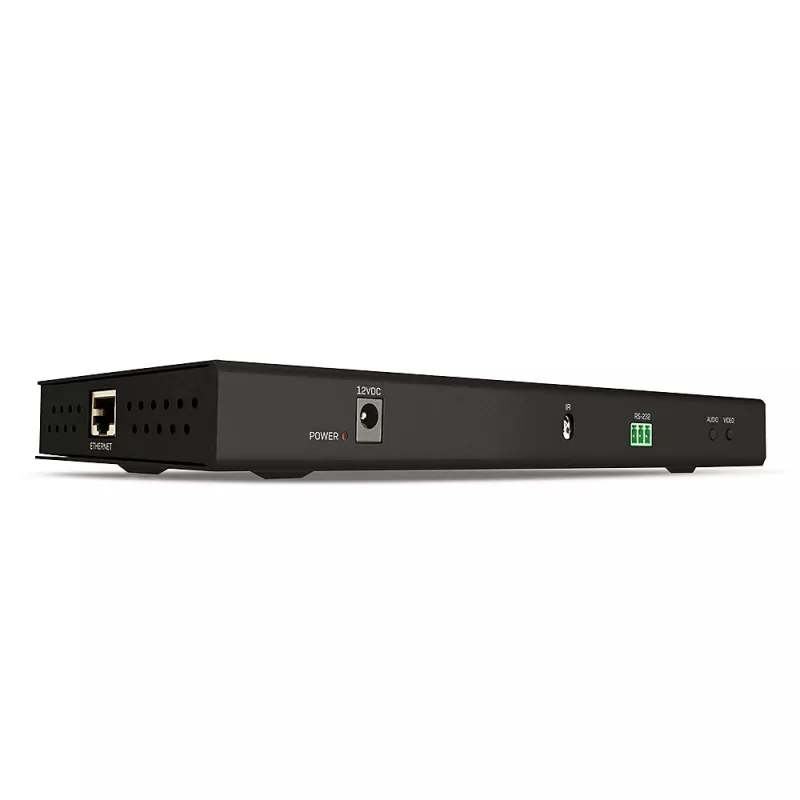

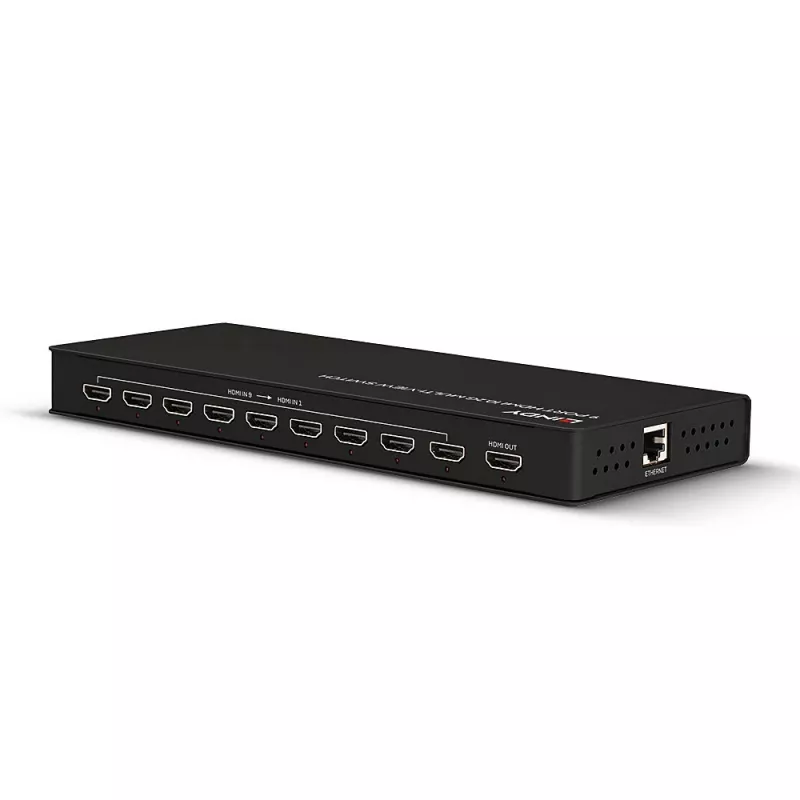

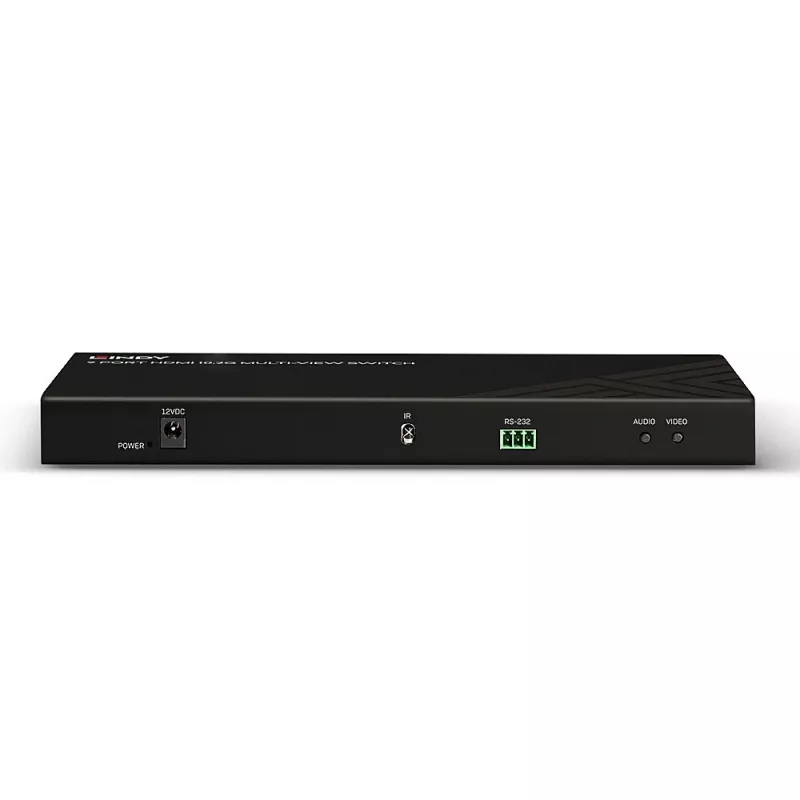

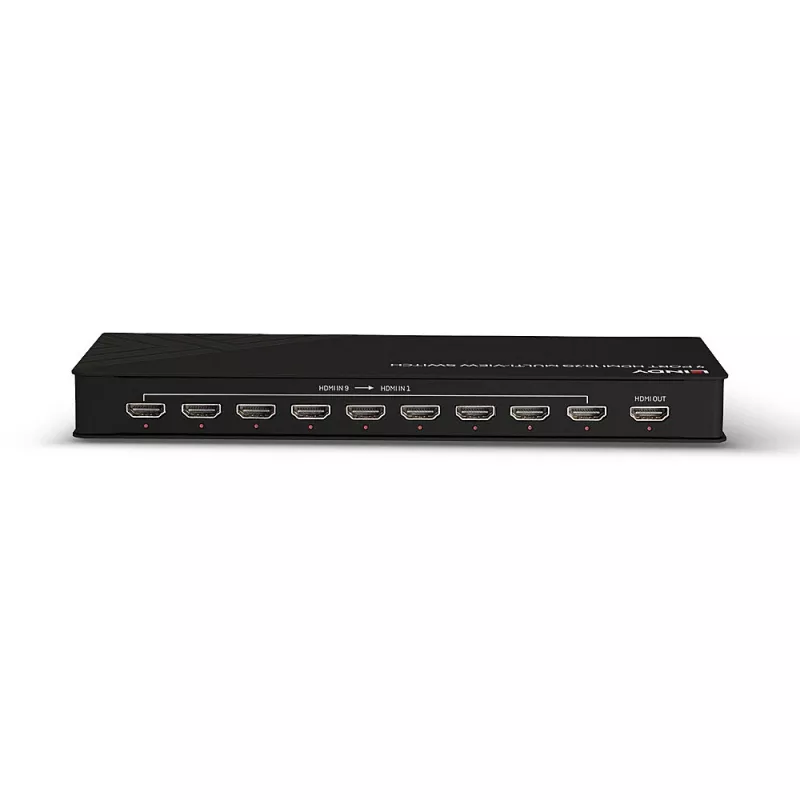

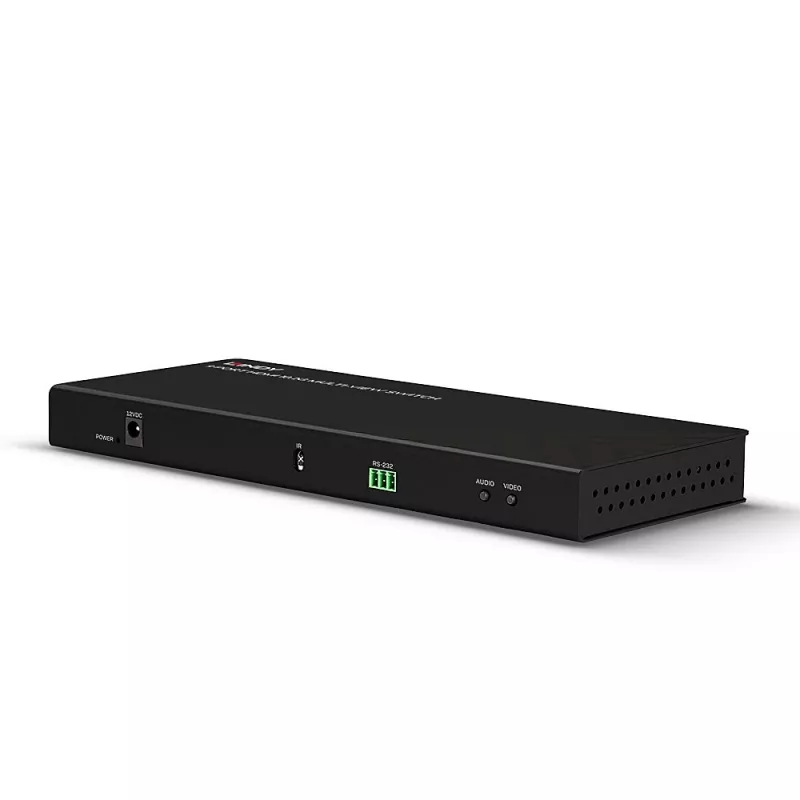

Lindy 9 port HDMI 10.2G multi-view switch čierny 30Hz

Connects 9 HDMI inputs and view on a single HDMI display
Supports resolutions up to 3840x2160@30Hz 4:4:4 8bit
Simple switching via push button, IR remote or RS-232
Seamless switching between sources
2 year warranty

HDMI Multi-view switches are professional solutions for showing one or more sources of HDMI content on a single display.

The Lindy HDMI 4K30 Multi-view Switch is a high performance solution for switching between a single or multiple HDMI source devices and outputting to a single HDMI display or projector. As well as standard switching between up to 9 devices, content can be viewed from all connected devices in a variety of layouts in the display, ideal for a wide range of scenarios.

These scenarios include the connection of two source devices in split screen layouts, which provide a useful layout for small scale CCTV or supporting content in retail stores, to the connection of 9 inputs for use in traffic monitoring or TV broadcasting facilities.

Resolutions up to 4K UHD 3840x2160@30Hz are supported providing an optimum viewing experience in detailed digital signage, security or broadcasting installations.

Switching can be easily controlled by the user via the push button on the main unit, or using the IR remote control, which also allows for hassle free switching between layouts modes. The switch also allows for output resolution scaling to ensure a consistent image quality within a setup, as well as independent audio switching from the connected HDMI devices, great for adding music or alternative commentary to video content from a separate HDMI source. Both features can also be easily controlled using the IR remote. RS-232 serial switching can also be used for control via a PC connection.

Seamless switching guarantees there is almost no downtime when alternating between connections, ensuring there is no interruption of content, meaning nothing is missed by the viewer when experiencing live sports or breaking news headlines.

Lindy 9 Port HDMI 10.2G Multi-view Switch. Video port type: HDMI. Material: Metal, Product colour: Black, Maximum refresh rate: 30 Hz. Certification: CE, UKCA, FCC, RoHS & REACH. Width: 252 mm, Depth: 25 mm, Height: 105 mm. Package width: 280 mm, Package depth: 55 mm, Package height: 195 mm

How to use

Connect up to nine HDMI source devices to the HDMI input ports and connect the HDMI output to your display or projector. Use the front-panel push button for basic switching, the supplied IR remote to select inputs and layout modes at a distance, or an RS-232 connection for control from a PC or control system. Configure audio routing and output resolution scaling via the remote to match the display and audio setup. Select desired multi-view layouts to show one or multiple sources simultaneously on the connected display.

Recommendations

For stable operation at 4K30 ensure high-quality HDMI cables rated for 10.2 Gbps, place the unit in a ventilated location, and use RS-232 control for integration into professional control systems. Test layout and audio settings before live operation to avoid interruptions during events.
