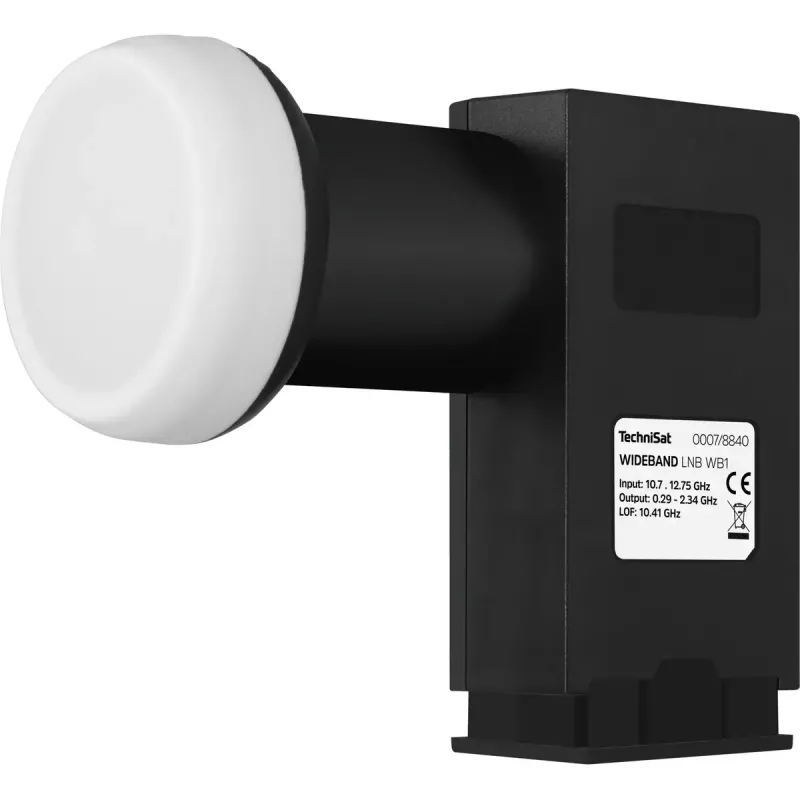

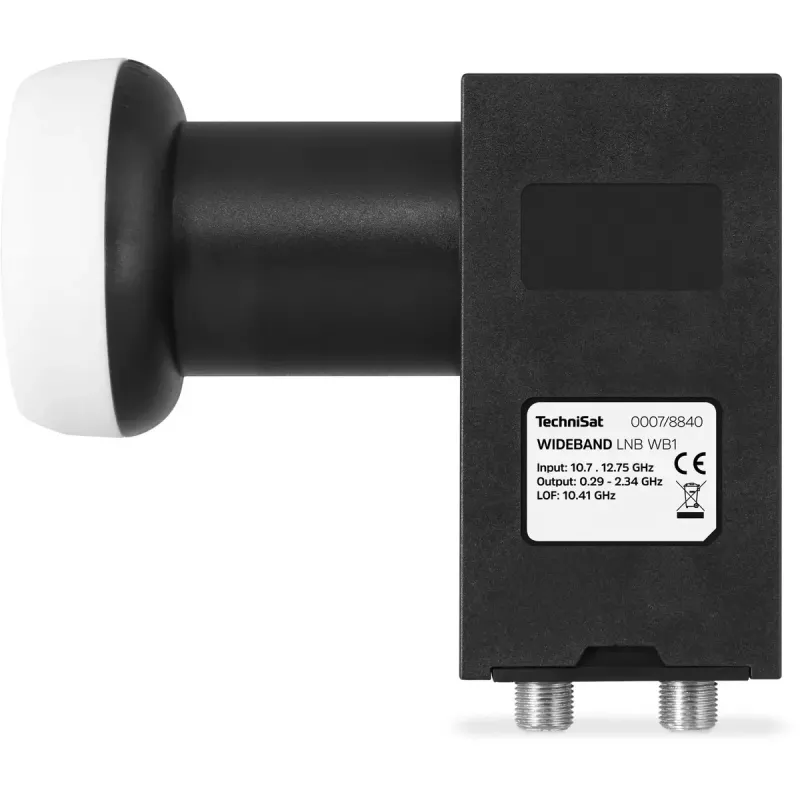

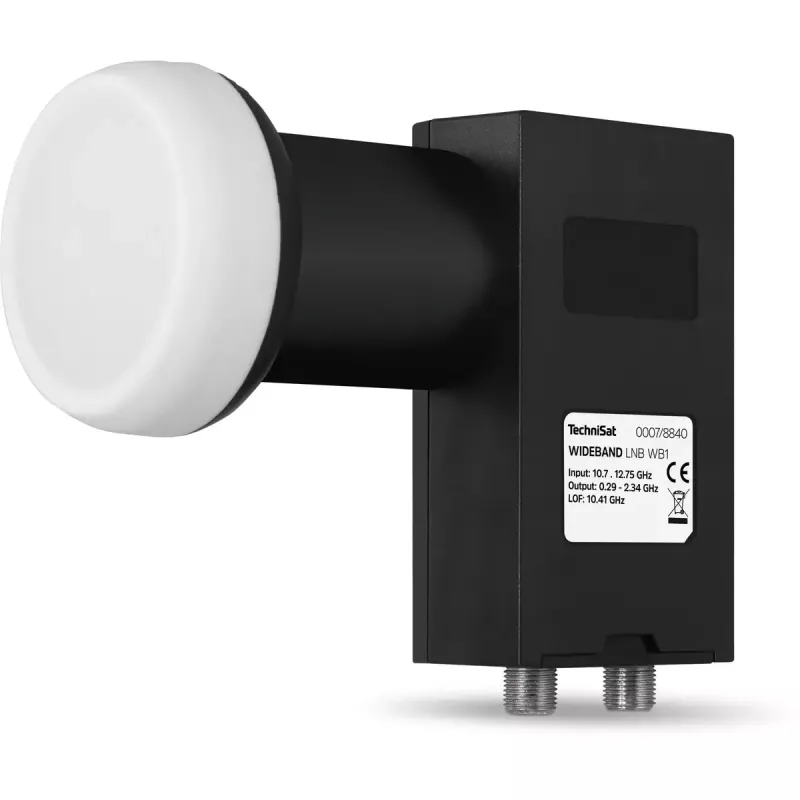

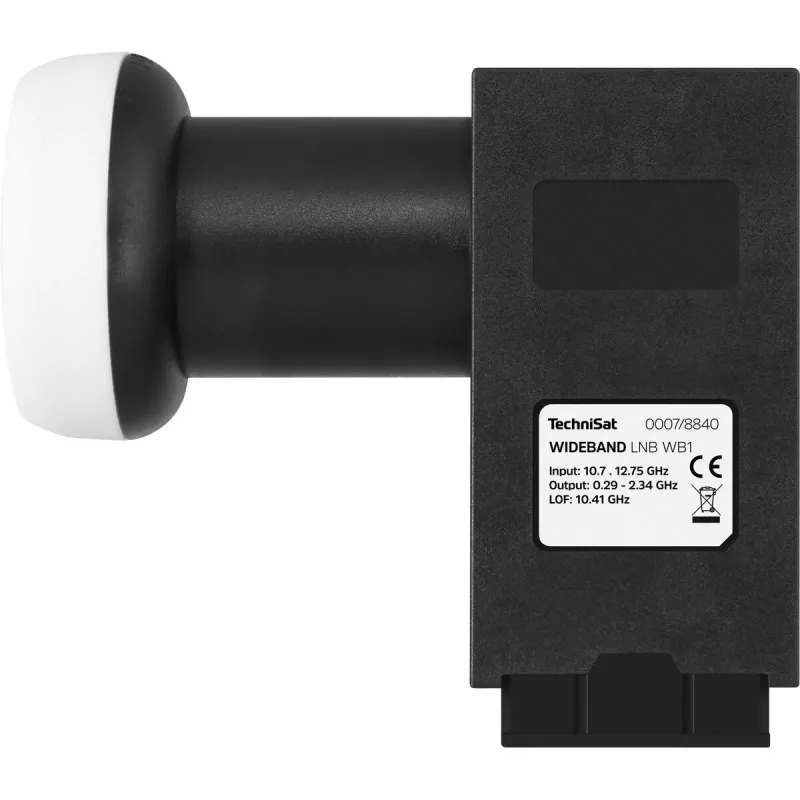

LNB TechniSat Wideband WB1

The TechniSat Wideband LNB WB1 is a low-noise block downconverter engineered for reliable satellite signal reception. It features an F-type RF connector, a 4 cm feedhorn diameter and compact housing (60 mm × 110 mm). Designed in black finish, the WB1 is compatible with multiswitch setups that support wideband signals and fits standard satellite installations.

Advantages

The WB1 offers low-noise performance and a compact form factor that simplifies mounting and alignment. Its F-type connector and standardized dimensions ensure compatibility with most satellite dish feeds. When used with a compatible TECHNIROUTER supporting EN50607 (SCR2), two WIDEBAND LNBs can distribute signals from two satellites without restriction, enabling multifeed reception.

Suitable for

• Home satellite reception with a single-dish setup
• Multifeed installations using TECHNIROUTER devices that support EN50607 (SCR2)
• Small installations where compact LNB dimensions are required

Key specifications

• Model: TechniSat Wideband WB1 (MPN 0007/8840)
• EAN: 4019588788404
• Connector: F-type (RF)
• Feedhorn diameter: 4 cm
• Dimensions: 60 mm (W) × 110 mm (D)
• Colour: Black
• Weight: 0.146 kg

How to use

Mount the WB1 at the focal point of a compatible satellite dish following the dish manufacturer's alignment instructions. Connect the F-type cable to the receiver or a TECHNIROUTER device. If integrating into a multifeed setup, install the second WB1 and configure the TECHNIROUTER according to the EN50607 (SCR2) protocol to enable distribution from two satellites.

Recommendations

For best results, use shielded coaxial cables and weatherproof connectors. When using multifeed reception, verify that the TECHNIROUTER model supports EN50607 (SCR2) and follow the router's manual for proper configuration and power supply arrangements.
