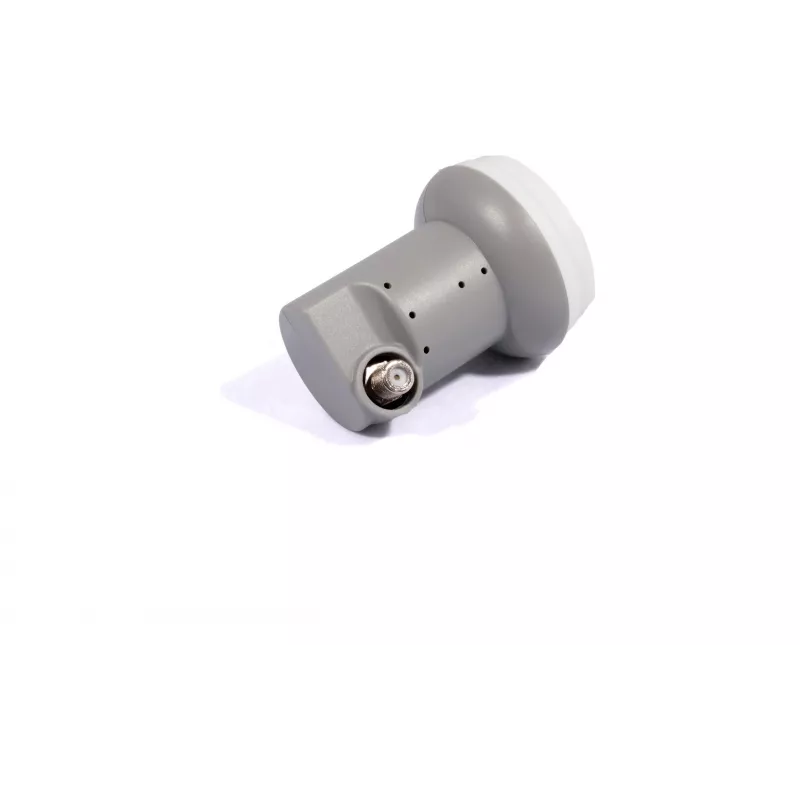

CORAB C110SNG single univerzálne LNB

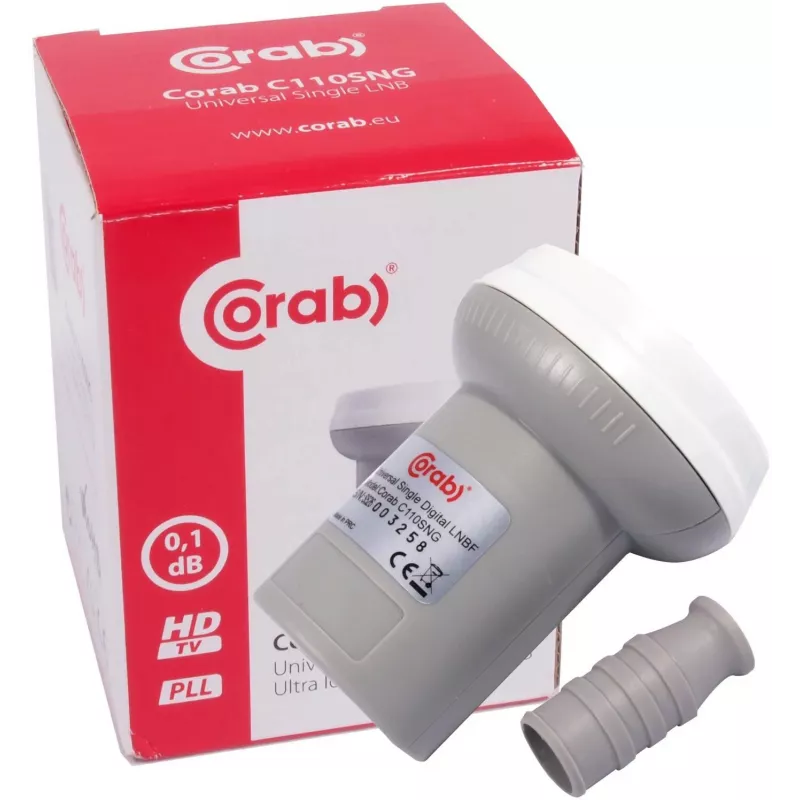

The CORAB C110SNG is a high-performance Single Universal LNB designed for reliable satellite signal reception. With a low noise figure of 0.1 dB and wide frequency range support, it ensures excellent signal quality for your satellite TV or data applications. The LNB features a single F-Type output and is built to withstand harsh outdoor conditions with its weather-protected design.

Advantages

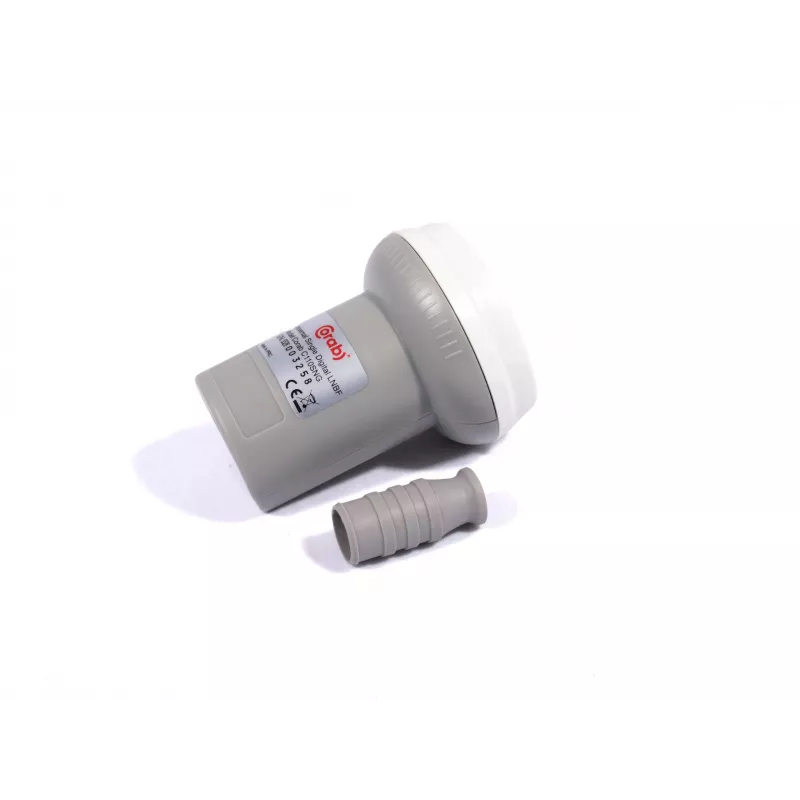

Ultra-low noise figure (0.1 dB) for superior signal clarity. Universal compatibility with both 13V/18V vertical/horizontal polarization switching and 22 kHz tone band switching. Robust weather protection with a sliding cover ensures long-lasting performance in outdoor environments.

Suitable for

• Single receiver satellite TV installations
• Direct-to-home (DTH) systems
• Satellite data links requiring one output

Key specifications

• LNB Type: Single Universal
• Number of Outputs: 1
• Noise Figure: 0.1 dB
• Input Frequency Range: 10.7 - 12.75 GHz
• Output Frequency Range: 950 - 2150 MHz
• Low Band LO Frequency: 9.75 GHz
• High Band LO Frequency: 10.6 GHz
• Conversion Gain: 50 - 60 dB
• Feed Horn Diameter: 40 mm
• Polarization Switching Voltage (Vertical): 13 V DC
• Polarization Switching Voltage (Horizontal): 18 V DC
• Band Switching Signal: 22 kHz Tone
• Current Consumption: Max 120 mA
• Operating Temperature: -30°C to +60°C
• Output Connector Type: F-Type

Recommendations

For optimal performance, pair with a high-quality satellite dish and ensure proper alignment. The C110SNG is ideal for standard single-receiver setups where reliability and signal quality are paramount.
