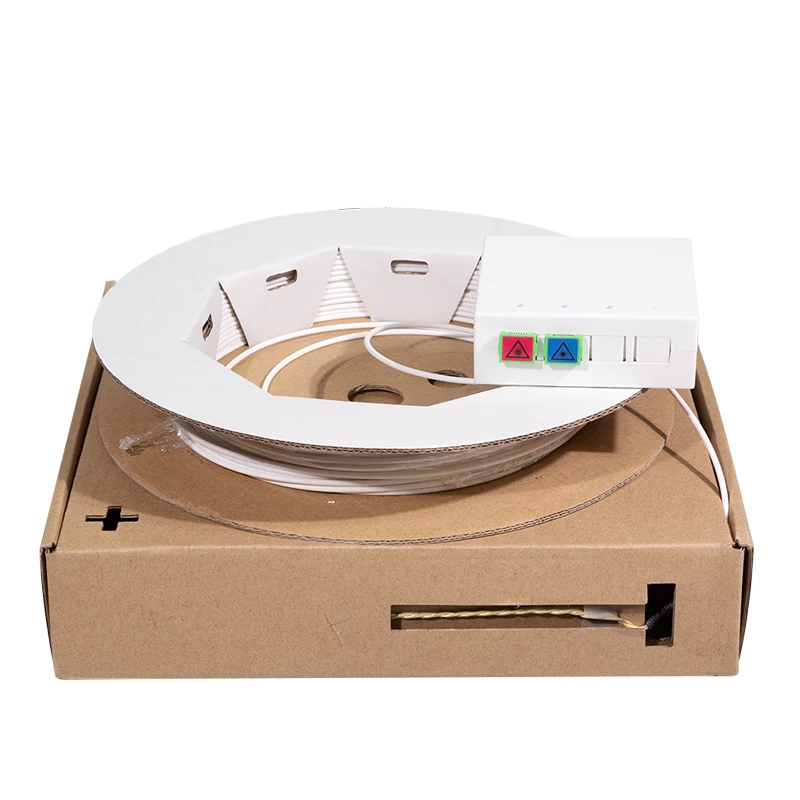

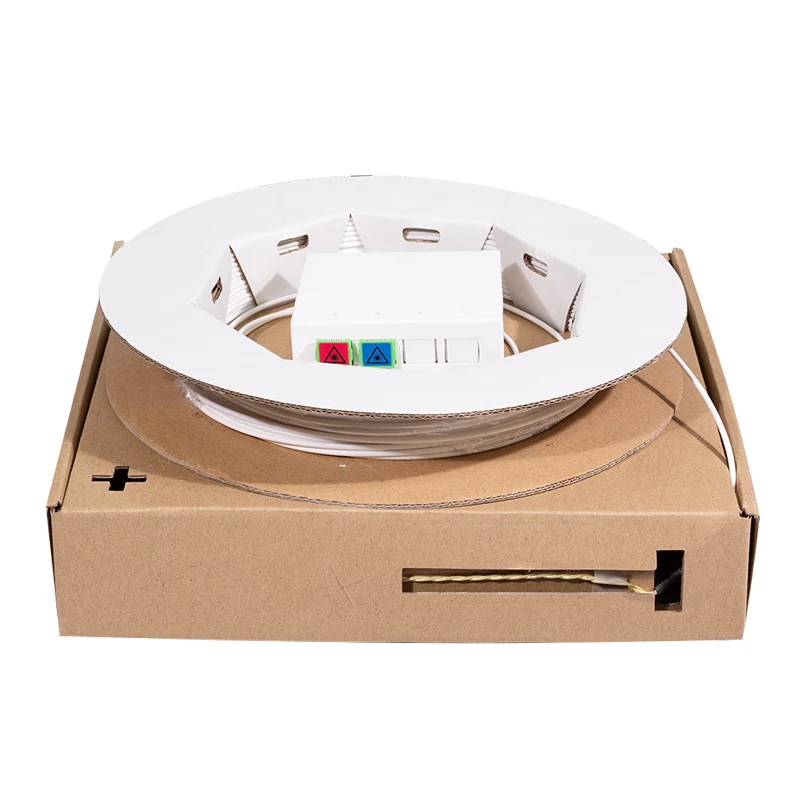

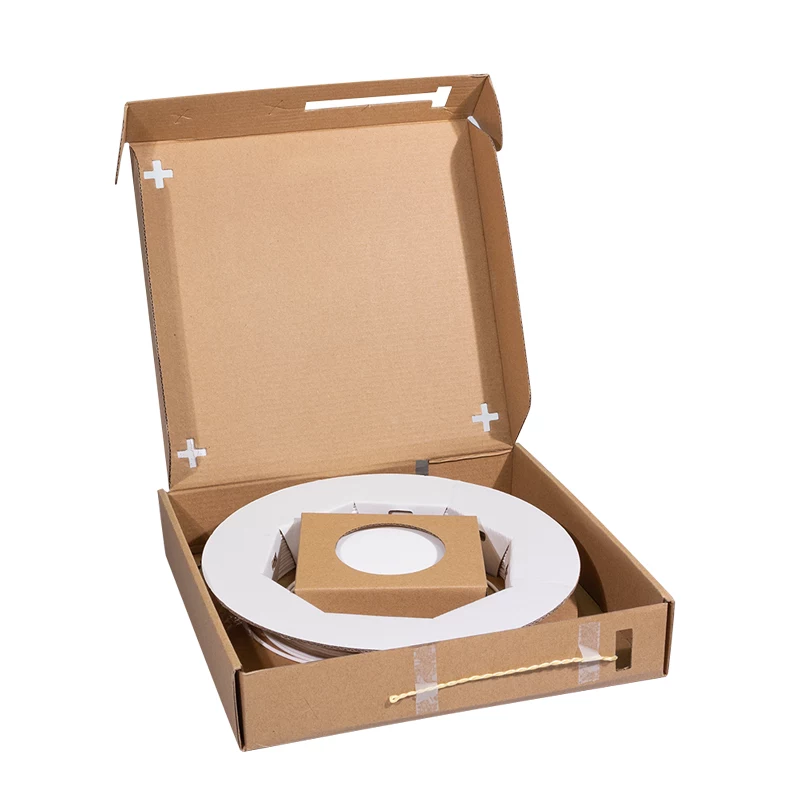

LogiLink FB2SC40 sklenené patch kábel Singlemode OS2 biely 40m

The LogiLink FB2SC40 is a high-quality fiber optic patch cable designed for reliable singlemode OS2 connections. With a length of 40 meters and duplex SC/SC connectors, it is ideal for FTTH installations and indoor cabling. The white LSZH jacket ensures safety and easy identification.

Advantages

Low smoke zero halogen (LSZH) jacket for enhanced safety; low insertion loss and high return loss for optimal signal integrity; durable 3.0 mm cable diameter for easy installation.

Suitable for

• FTTH connection boxes
• Indoor fiber optic cabling
• Data center and enterprise networks

Key specifications

• Fiber mode: Singlemode OS2
• Connectors: 2 x SC/APC simplex couplings
• Cable length: 40 m
• Core/cladding: 9/125 µm
• Jacket material: LSZH
• Color: White
• Insertion loss: ≤0.3 dB
• Return loss: ≥50 dB
• Attenuation: 0.35 dB/km @1310nm, 0.25 dB/km @1550nm
• Operating temperature: -20°C to 70°C

Recommendations

For optimal performance, use with compatible SC/APC devices and avoid sharp bends. Suitable for indoor use only.
