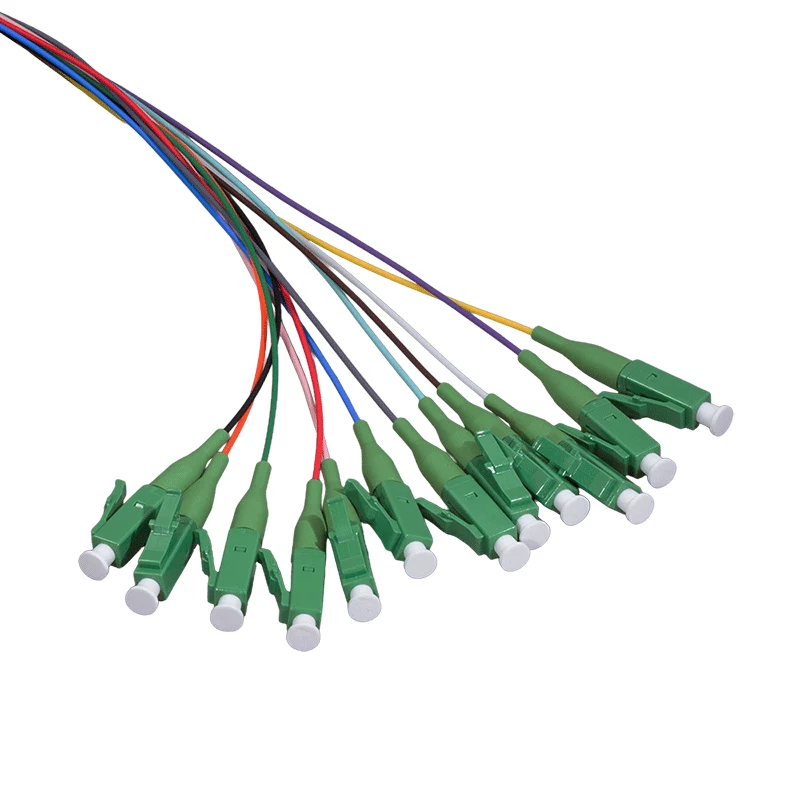

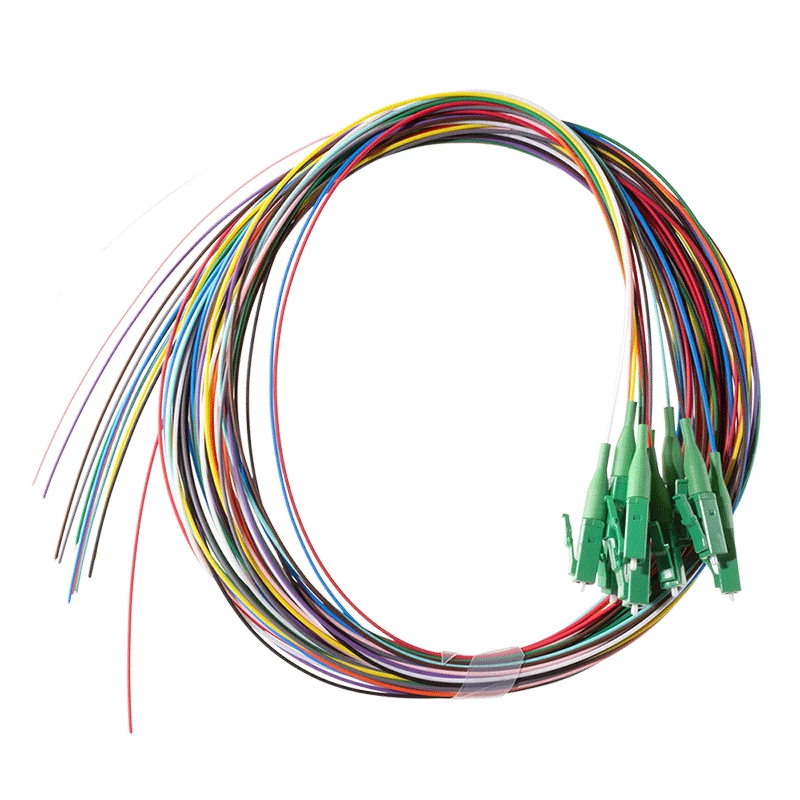

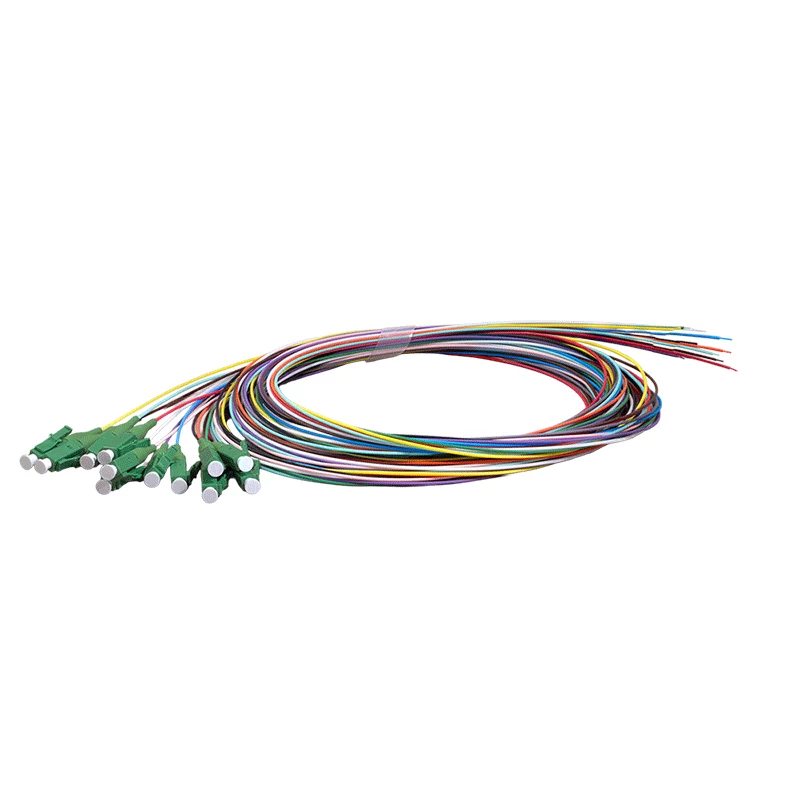

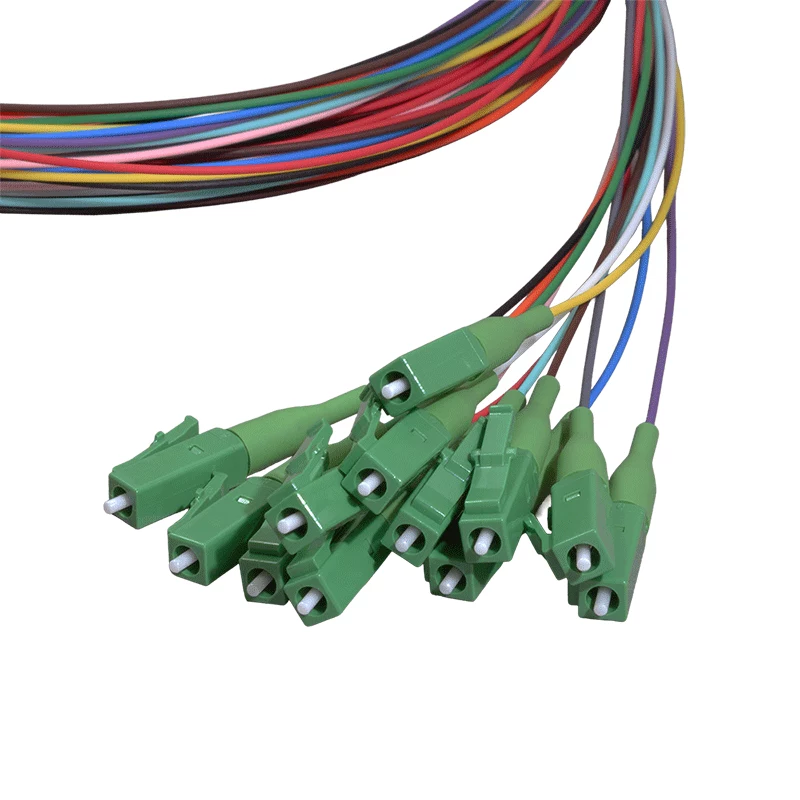

LogiLink Fiber Pigtail set 12 x LC/APC OS2 (G657.A1), 2m, farebný, zelený konektor

In data centers and telecommunication rooms, technicians often need to splice multiple fibers quickly and reliably. This 12-fiber pigtail set with LC/APC connectors provides a ready-to-use solution for fusion splicing to multi-fiber trunk cables or for terminating in patch panels. Each pigtail is 2 meters long, color-coded according to TIA/EIA-598-C for easy identification, and terminated with a green LC/APC connector that ensures low back reflection.

Key specifications

• 12 single-mode OS2 pigtails, ITU-T G.657.A1 bend-insensitive fiber
• LC/APC connectors (green) with typical insertion loss ≤0.3 dB and return loss ≥60 dB
• 2-meter length with 0.9 mm buffer, individually color-coded
• LSZH jacket (yellow) for low smoke and halogen-free safety
• Operating temperature: -20°C to +70°C
• Compliant with RoHS and CE

Why choose it

The angled physical contact (APC) polish minimizes reflections, making these pigtails ideal for high-speed networks and analog video. The bend-insensitive G.657.A1 fiber allows tighter bends without significant loss, simplifying installation in crowded enclosures. The LSZH jacket enhances safety in indoor environments.

Ideal use cases

• Fusion splicing to distribution cables in data centers
• Terminating fibers in patch panels or wall outlets
• FTTx and telecommunication network build-outs
• Indoor applications where low smoke and halogen-free materials are required

Good to know

Each set includes 12 pigtails with standard fiber color codes: blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua.
