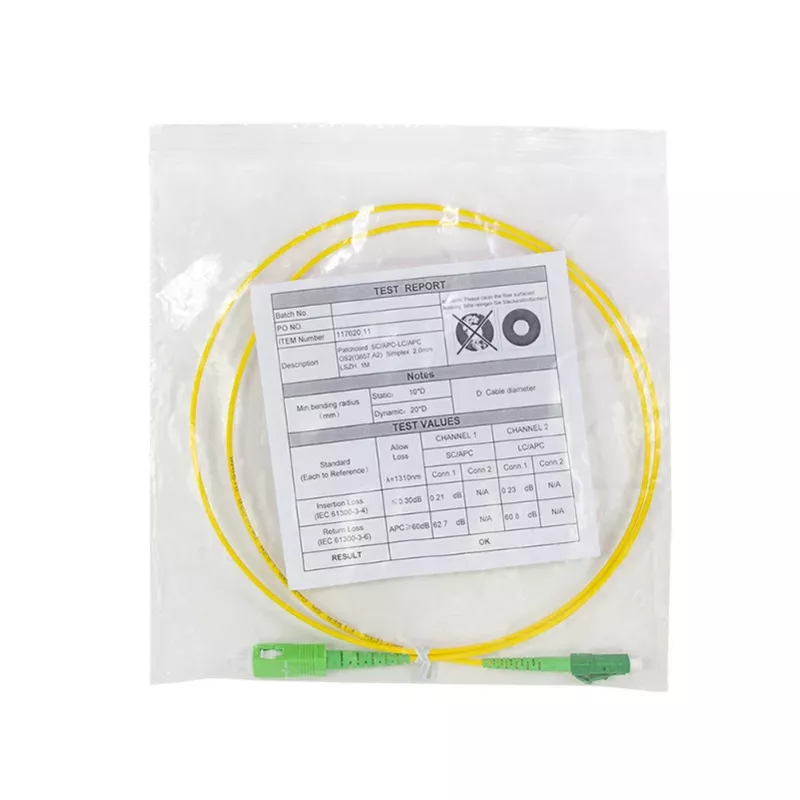

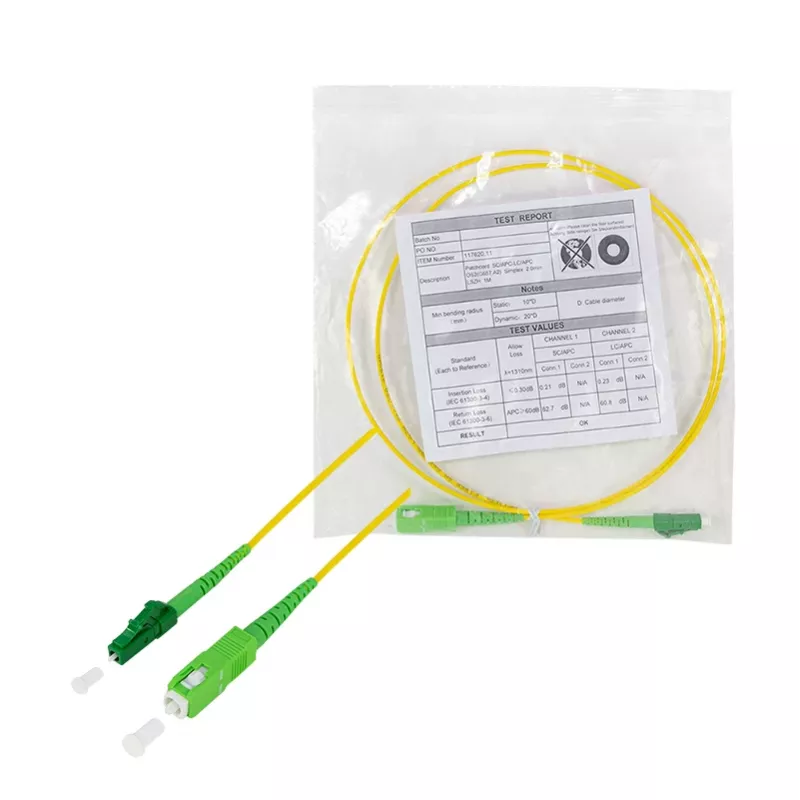

LogiLink FPSLS50 jednovidové OS2 optické patch kábel, SC/APC na LC/APC, 9/125 µm, 50 m, žltý

Long-distance fiber connections often suffer from signal loss and reflection, especially when mating different connector types. The LogiLink FPSLS50 solves this by combining SC/APC and LC/APC connectors on a 50-meter OS2 singlemode cable, ensuring low insertion loss and high return loss for stable, high-speed links.

Who is it for

Network engineers and installers who need a reliable, ready-to-use patch cable for connecting equipment with SC/APC and LC/APC ports, such as in FTTH, data centers, or telecom rooms.

Main features

• 50 m length for extended reach
• SC/APC to LC/APC connectors with angled polish for minimal back reflection
• 9/125 µm OS2 singlemode fiber for long-haul transmission
• Yellow LSZH jacket for easy identification and low smoke emission
• Simplex construction with 3 mm cable diameter

Specifications

• Fiber type: Singlemode OS2
• Core/cladding diameter: 9/125 µm
• Connector A: SC/APC
• Connector B: LC/APC
• Cable length: 50 m
• Jacket color: Yellow
• Jacket material: LSZH
• Cable diameter: 3 mm
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 60 dB
• Operating wavelengths: 1310 nm, 1550 nm
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C

Tips

Always inspect and clean the connector end faces before installation to maintain optimal performance. Use proper bend radius management to avoid signal degradation.
