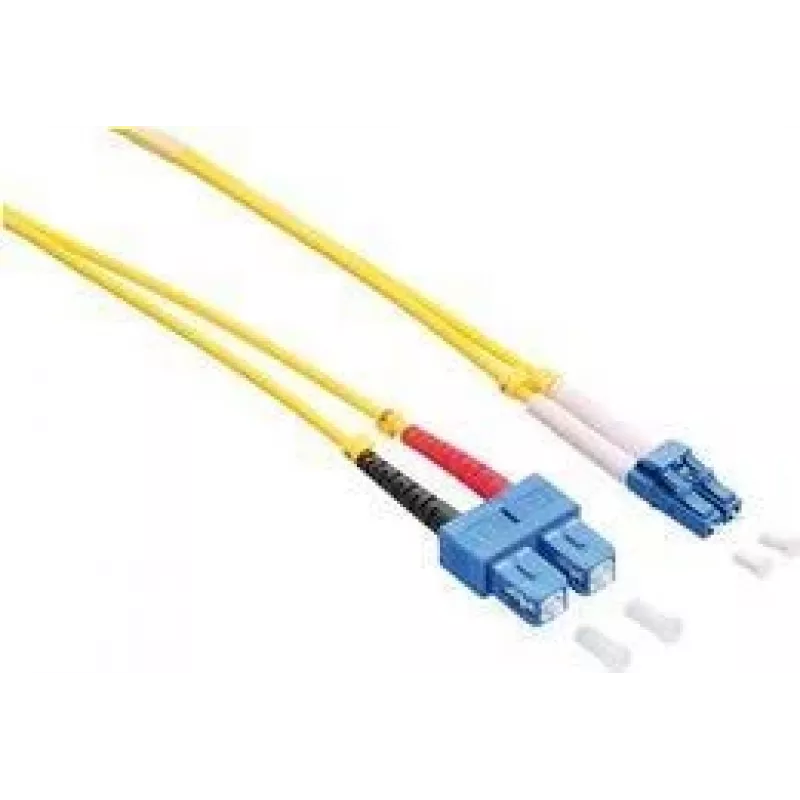

LogiLink optický patch kábel LC na SC single-mode OS2 duplex 10 m LSZH žltý

The LogiLink FP0LS10 is a high-performance fiber optic patch cable designed for reliable single-mode connections in data centers, LAN networks, and telecommunication systems. With LC to SC connectors, duplex structure, and OS2 classification, this 10-meter cable ensures low signal loss and high bandwidth for long-distance transmissions.

Advantages

Low insertion loss (≤0.3 dB) and high return loss (≥50 dB) guarantee excellent signal integrity. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, reducing toxic fumes in case of fire. The yellow color enables easy identification in cable management systems.

Suitable for

• Data center interconnects
• Local area networks (LAN)
• Telecommunication networks
• FTTx applications
• Single-mode fiber optic patching

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Connector Type A: LC Male
• Connector Type B: SC Male
• Fiber Mode: Single-Mode
• Fiber Class: OS2
• Core/Cladding Diameter: 9/125 µm
• Cable Structure: Duplex
• Cable Length: 10 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Yellow
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 50 dB
• Operating Wavelengths: 1310 nm, 1550 nm
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km
• Connector Polish: UPC
• Ferrule Material: Zirconia Ceramic
• Compliance: RoHS, CE, TIA/EIA-568-C.3, IEC 60793-2-50
• Minimum Bend Radius: 30 mm

Recommendations

For optimal performance, use with compatible single-mode SFP modules and ensure proper handling to avoid damage to the fiber core. Ideal for structured cabling environments requiring high-speed, low-latency connections.
