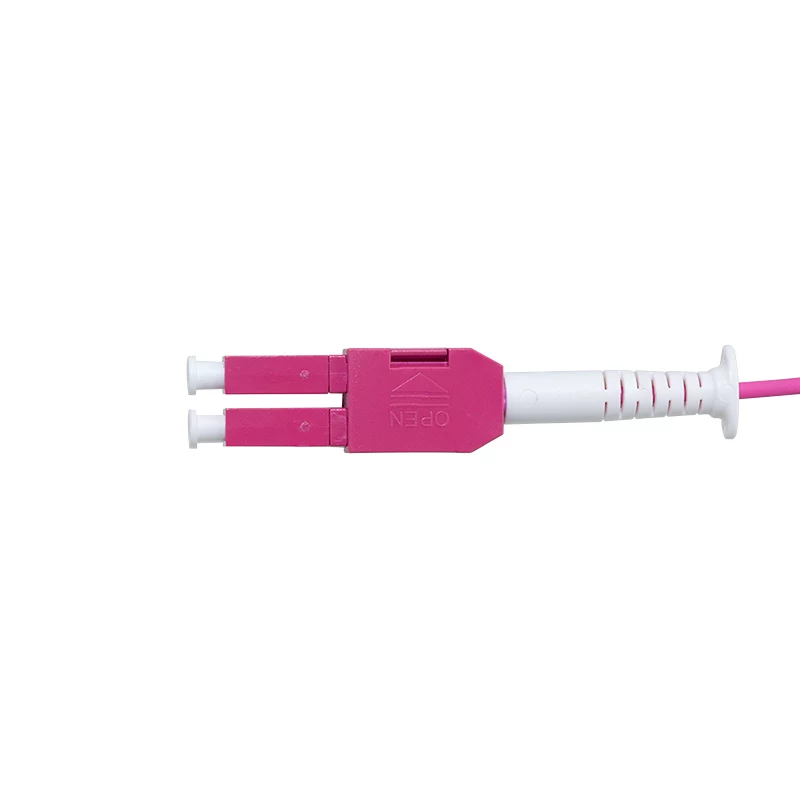

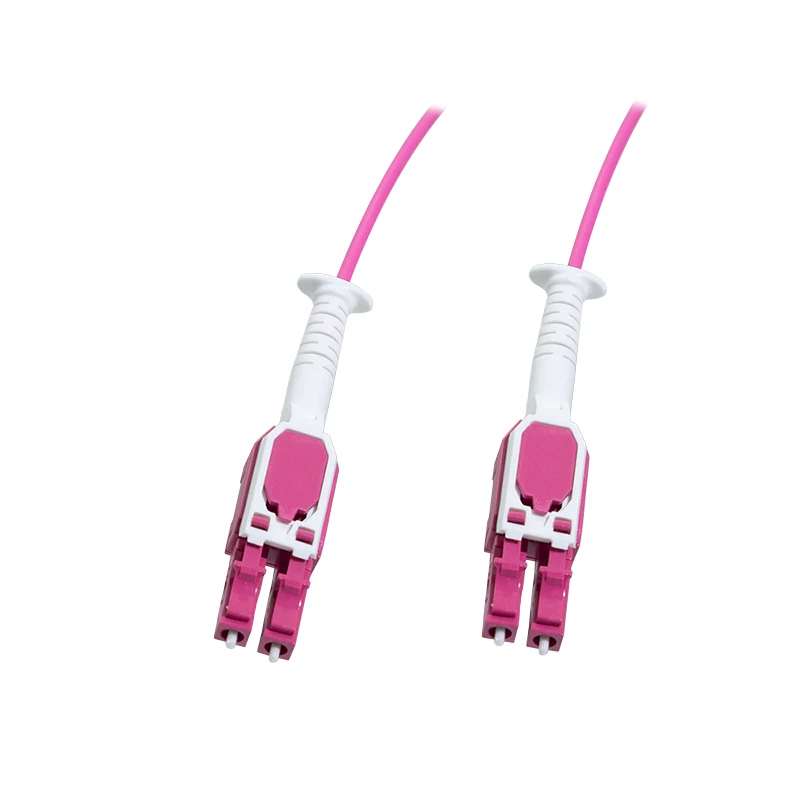

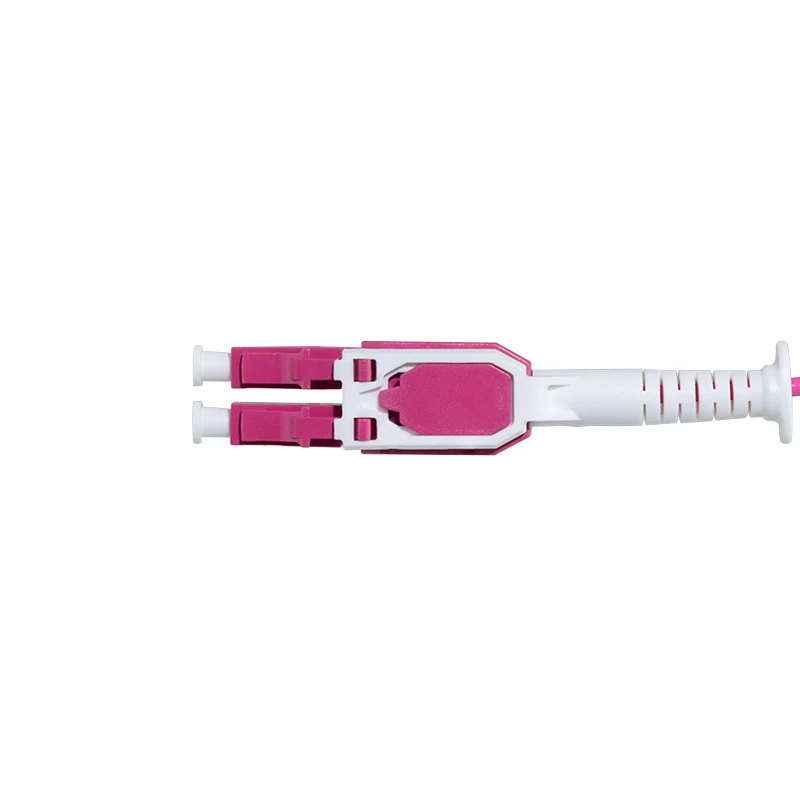

LogiLink Uniboot Push-Pull optický patch kábel LC-LC OM4, 5,0 m

High-density fiber patching gets a radical rethink with this LogiLink uniboot push-pull cord. Instead of two separate boots and a bulky duplex clip, a single round jacket carries both OM4 fibers, while the integrated push-pull tab releases both LC connectors from a patch panel with one finger. That means no more fumbling in fully loaded racks where side access is impossible.

Highlights

• Uniboot duplex construction: one cable, one boot, two fibers — ideal for dense patching fields
• Push-pull latching mechanism for tool-free insertion and extraction in tight spaces
• OM4 laser-optimized multimode fiber (50/125 µm) with 4700 MHz·km bandwidth at 850 nm
• Low insertion loss ≤ 0.3 dB and return loss ≥ 30 dB per mated pair
• LSZH (Low Smoke Zero Halogen) aqua jacket for safe use in enclosed or public areas
• Zirconia ceramic ferrules ensure precise alignment and long-term durability

In daily use

The 5-meter length bridges short equipment runs in data centers, server rooms, and enterprise wiring closets. Because the uniboot design keeps both fibers in a single round jacket, airflow is improved and cable management becomes less of a puzzle. The push-pull tab is molded directly into the connector body — no separate clip to lose — and it works with standard LC adapters and transceivers. Whether you are patching switches to patch panels, linking storage arrays, or connecting high-speed uplinks, this cord handles 10/40/100 Gigabit Ethernet over short reaches while remaining backward-compatible with existing multimode infrastructure.

Full specifications

• Cable type: Fiber optic patch cord, duplex uniboot
• Fiber type: OM4 multimode, 50/125 µm core/cladding
• Connectors: LC to LC, push-pull latching, zirconia ceramic ferrules
• Length: 5.0 m
• Jacket: LSZH, aqua
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Bandwidth: 4700 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Operating temperature: -20 °C to +70 °C
• Standards: IEC 60793-2-10 Type A1a.3, TIA/EIA-492AAAD
• Applications: 10GbE, 40GbE, 100GbE

Final note

A single finger is all it takes to release both fibers — no side access, no special tools, no lost duplex clips. The LogiLink uniboot push-pull cord turns dense patching into a one-hand job.
