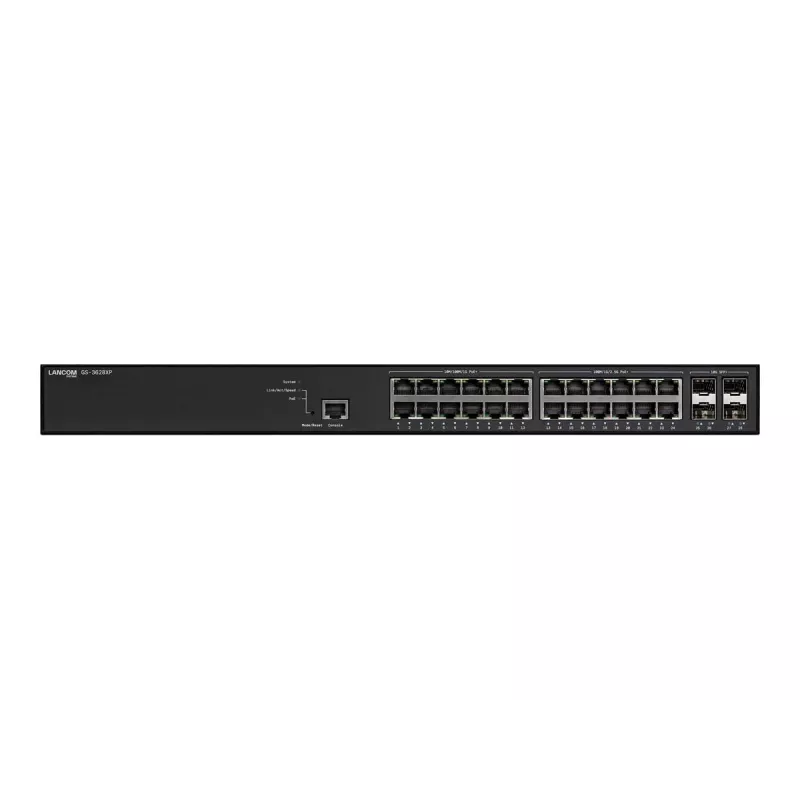

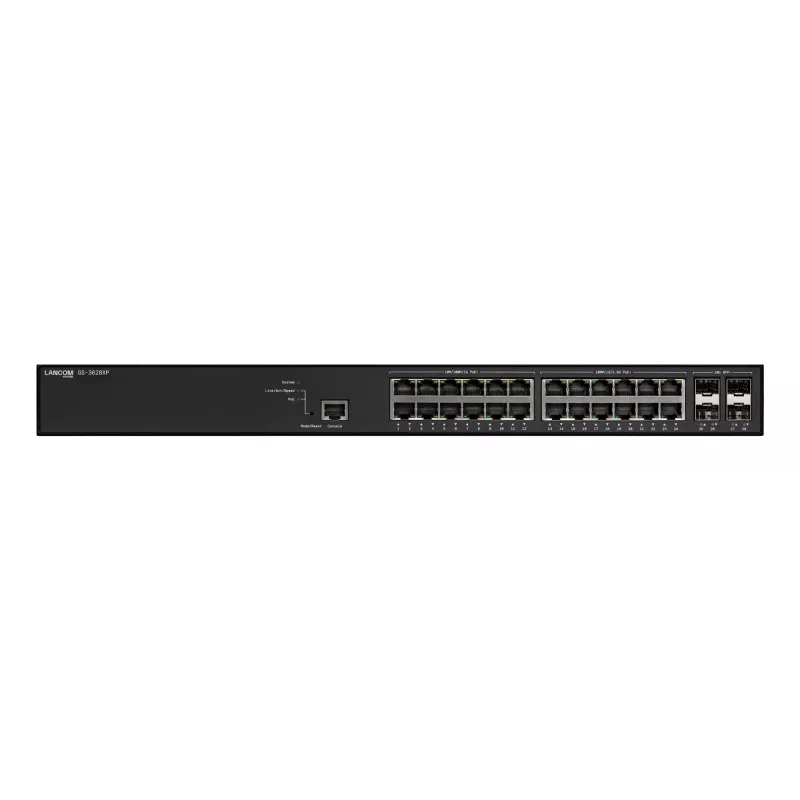

Managed LANCOM GS-3628XP switch, 24× 2,5G RJ-45 portov, PoE, L2/L3, 1U racková montáž

The LANCOM GS-3628XP is a managed L2/L3 rackmount switch offering 24 RJ-45 ports with multi-gigabit capability (100/1000/2500 Mbps) and integrated Power over Ethernet (PoE/PoE+). Designed for enterprise and branch deployments, the device includes a console RJ-45 port, support for common IEEE Ethernet and VLAN standards, basic Layer-3 functions such as static routing and DHCP server, and a 1U form factor for standard racks. With a black metal housing and a compact 1U design, it provides centralized connectivity and power delivery for networked devices.

Advantages

The switch combines multi-gigabit access ports and PoE+ power delivery in a managed L2/L3 platform, enabling consolidated data and power distribution from a single rack-mounted unit. Built-in static routing and DHCP reduce router load by offloading internal routing tasks, while cloud management simplifies configuration and rollout across multiple deployments. Security and remote administration are supported by IEEE 802.1X port control, TACACS+, SSH, SSL and SNMPv3. The design supports integration with modern Wi‑Fi 6 access points and other high-throughput endpoints.

Suitable for

• Wired access and aggregation in small and medium enterprise networks
• Powering and connecting Wi‑Fi 6 access points and high-throughput endpoints
• Branch office and multi-site deployments managed from the cloud
• Environments requiring centralized PoE+/PoE power delivery without extra electrical installations

Key specifications

• 24 RJ‑45 switching ports with multi‑gigabit support (100/1000/2500 Mbps)
• 4 SFP+ uplink ports supporting up to 10 Gbps
• Managed L2/L3 functionality with static routing and DHCP server
• PoE support: IEEE 802.3af and IEEE 802.3at (PoE+), total PoE budget 370 W
• Supported standards: IEEE 802.1Q, 802.1D, 802.1X, 802.1s, 802.1ad, 802.1ak, 802.3x, 802.3u, 802.3ab and related Ethernet standards
• MAC address table capacity: 32 entries
• Secure management: TACACS+, SSH, SSL, SNMPv3
• Dual‑stack IPv4/IPv6 support with IPv6 features such as stateless autoconfiguration and neighbor discovery
• 1U rackmount form factor; product colour: black; weight: 4.9 kg

How to use

Install the GS-3628XP into a standard 19" rack using the included 1U mounting hardware and connect AC mains power. Connect endpoint devices to the RJ‑45 ports; PoE/PoE+ power is provided automatically to compatible devices up to the available budget. Use the console RJ‑45 port for initial local configuration or access the web interface/CLI for detailed settings. For centralized deployment, register the device in the LANCOM Management Cloud to apply configuration templates, VLAN assignments and firmware updates across multiple devices.

Recommendations

Plan PoE power distribution according to device requirements and the switch's 370 W total budget. Reserve higher‑power ports for energy‑intensive devices such as Wi‑Fi 6 access points and cameras, and group VLAN and static routes to optimize internal traffic flows. Use secure management protocols (SSH, SSL, SNMPv3, TACACS+) and IEEE 802.1X authentication to control port access. Combine the switch with compatible SFP+ modules for 10 Gbps uplinks where higher backbone throughput is needed.
