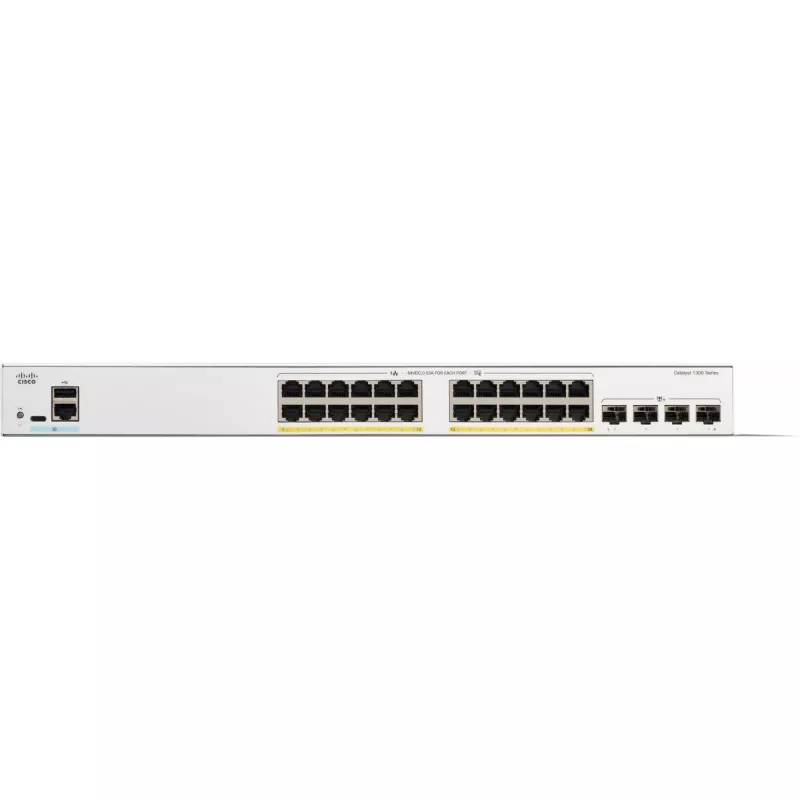

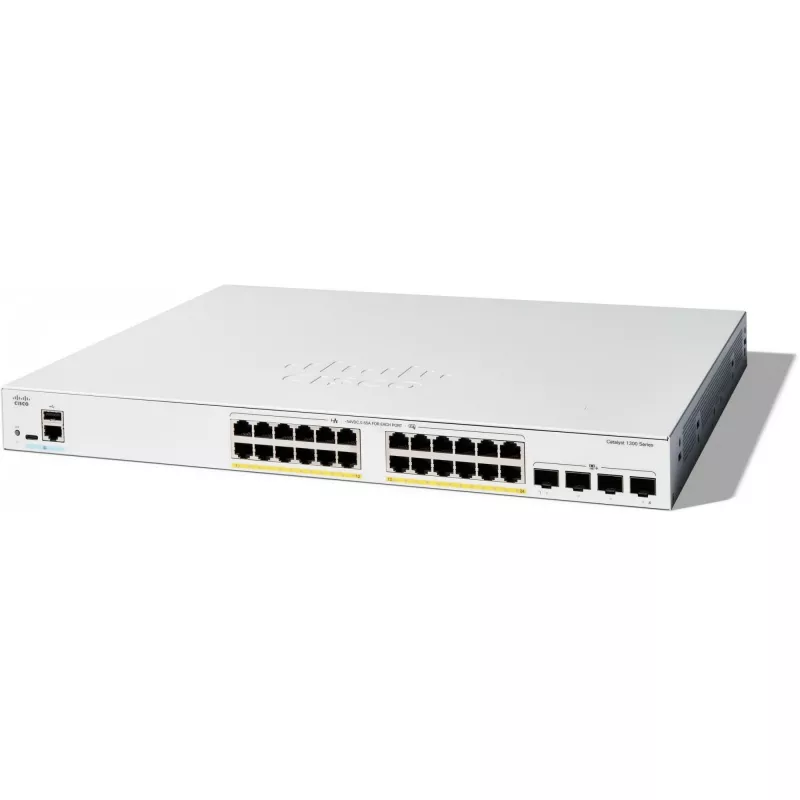

Managed Switch Cisco Catalyst 1300-24FP-4X 24 portov GE Full PoE 4x10GE SFP+

The Cisco Catalyst 1300-24FP-4X is a managed switch that provides 24 Gigabit Ethernet RJ-45 ports with full PoE/PoE+ support and four 10GE SFP+ uplink ports. Designed for small and branch office environments, the switch offers Layer 2/3 features, an intuitive web dashboard and a switching capacity of 128 Gbit/s to support reliable wired connectivity and advanced network functions.

Advantages

The switch delivers full PoE/PoE+ on all 24 ports, enabling centralized power delivery to IP phones, wireless access points and other powered devices. Managed switching capabilities and wide standards support (including IEEE 802.1Q, 802.1x and 802.3at) enable VLAN segmentation, access control and robust interoperability. Compact rackable design and four 10GE SFP+ uplinks provide flexible aggregation options and higher uplink bandwidth.

Suitable for

• Small and branch office networks
• Powering IP phones and access points via PoE/PoE+
• Edge switching with VLANs and access control
• Aggregation to core switches using 10GE SFP+ uplinks

Key specifications

• Ports: 24 × Gigabit Ethernet (10/100/1000) RJ-45 with full PoE/PoE+
• Uplinks: 4 × 10GE SFP+
• Switching capacity: 128 Gbit/s
• Switch type: Managed
• Networking standards: IEEE 802.1D/Q/ab/s/w/x, IEEE 802.3 family (including 802.3af/at/an/ae/az)
• Colour: Grey
• Weight: 4.6 kg

How to use

Mount the switch in a standard 19-inch rack or place it on a stable surface. Connect client devices to the Gigabit RJ-45 ports and uplink to the network core using the SFP+ ports with compatible 10GE transceivers. Access the built-in web dashboard or use standard management protocols to configure VLANs, PoE power allocation, security policies and Layer 2/3 features. Monitor port status and power consumption from the management interface.

Recommendations

Use appropriate SFP+ transceivers for your fiber or DAC connections and ensure PoE budget planning to avoid exceeding the switch’s available power for connected devices.
