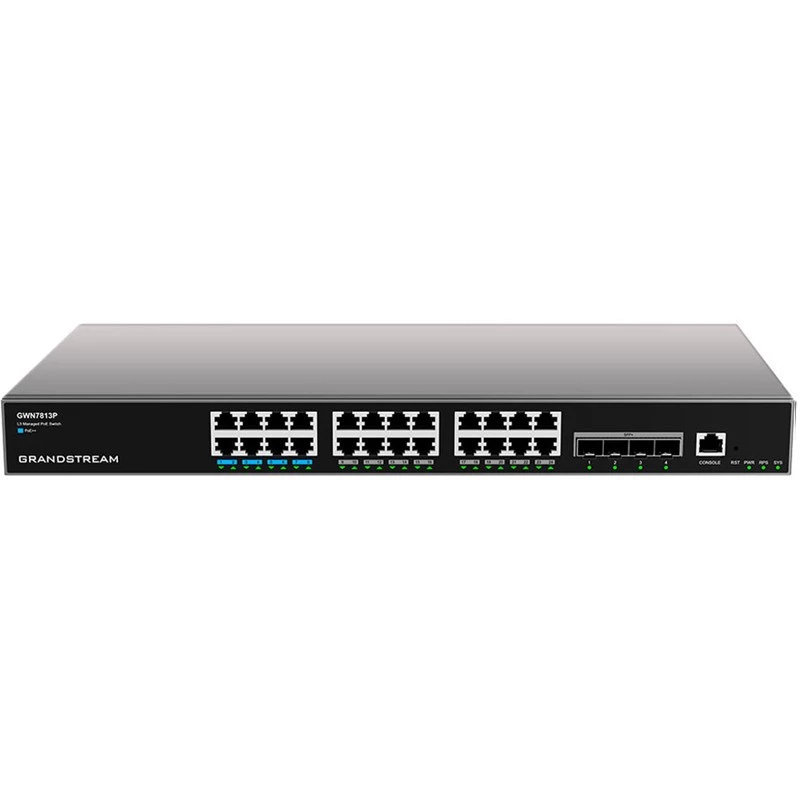

Managed Switch Grandstream GWN7813P

The Grandstream GWN7813P is a managed Layer 3 Gigabit Ethernet switch with 24 Gigabit RJ-45 ports and integrated Power over Ethernet (PoE). It provides a switching capacity of 128 Gbit/s and a MAC address table of up to 16,000 entries, supporting multiple IEEE networking standards to deliver reliable, high-performance connectivity for business networks. The switch can be managed via Grandstream’s cloud and on-premises management platforms or through its embedded controller in the device web interface.

Advantages

The GWN7813P combines full Layer 3 management capabilities with PoE support and a high switching capacity, enabling scalable, secure, and efficient network deployments. It supports centralized management through GWN.Cloud and GWN Manager as well as an embedded controller for local discovery and provisioning. Compliance with common IEEE standards ensures interoperability with existing network equipment.

Suitable for

• Small to medium-sized enterprise networks requiring managed Layer 3 switching
• Office environments that need centralized management and monitoring
• Deployments with PoE devices such as IP phones, wireless access points, and cameras
• Networks that require high switching capacity and support for 10G uplinks

Key specifications

• Model: Grandstream GWN7813P (MPN: GWN7813P, EAN: 6947273704096)
• Switch type: Managed Layer 3
• Ports: 24 x Gigabit Ethernet (10/100/1000) RJ-45
• PoE: Yes (802.3af/802.3at)
• Switching capacity: 128 Gbit/s
• MAC address table: up to 16,000 entries
• 10G support: Yes
• Networking standards: IEEE 802.3ab/z/x/u/i/at/af/ad/802.1x/802.1w/802.1s/802.1p/802.1Q/802.1D
• Color: Grey
• Weight: 4.69 kg

How to use

Install the GWN7813P in a standard rack or on a stable surface and connect power and network cables to the appropriate ports. Use GWN.Cloud or GWN Manager for centralized configuration and monitoring, or access the device web interface to use the built-in embedded controller for discovery, provisioning and local management. Configure VLANs, routing, QoS and PoE settings according to your network design and connect end devices to the Gigabit ports.

Recommendations

For reliable operation, ensure adequate ventilation and place the switch in a temperature-controlled environment. Keep firmware up to date and use GWN.Cloud or GWN Manager to monitor performance, alerts and system logs. When deploying PoE devices, verify per-port and total PoE budget to avoid power overcommitment.
