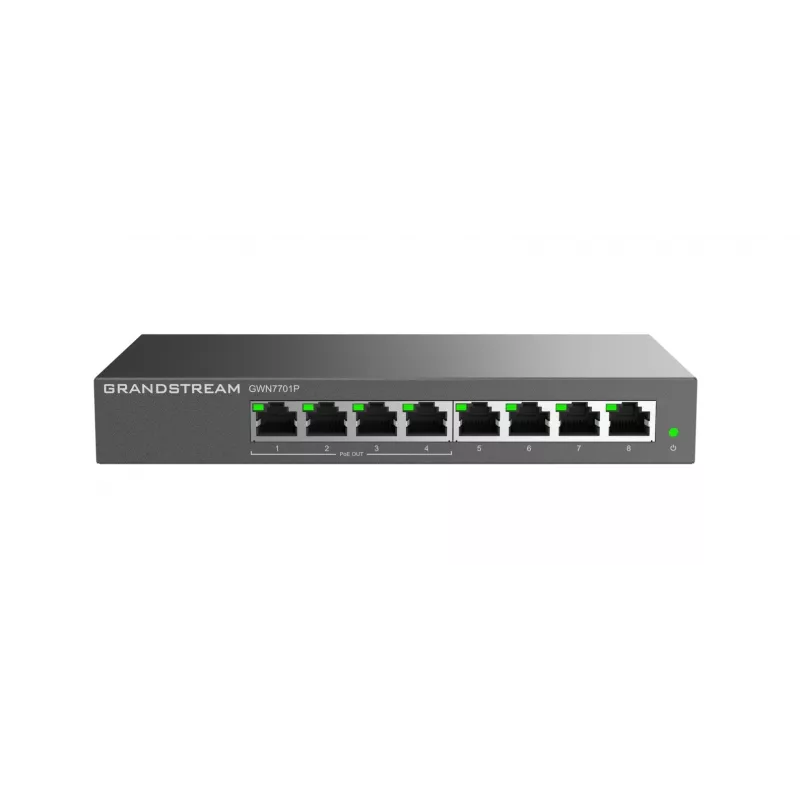

Unmanaged Switch Grandstream Networks GWN7701P

The Grandstream Networks GWN7701P is an unmanaged Gigabit Ethernet switch with 8 RJ-45 ports and integrated Power over Ethernet (PoE). Designed for simple plug-and-play deployment in home offices and small to medium businesses, it delivers high-speed 10/100/1000 Mbps connectivity, supports auto-negotiation and auto MDI/MDIX, and meets IEEE 802.3af/at PoE standards. The switch has a compact desktop or wall-mountable design and a switching capacity of 16 Gbit/s, with a DC input voltage range of 48–53.5 V.

Advantages

The GWN7701P requires no configuration and supports automatic link speed detection and cable type correction, simplifying installation. Its PoE-capable ports supply compliant IEEE 802.3af/at power to devices such as IP phones, IP cameras, and Wi-Fi access points. The unmanaged design and sturdy black enclosure make it suitable for quick expansion of wired networks while maintaining reliable Gigabit performance.

Suitable for

• Home office networks requiring multiple wired Gigabit connections
• Small and medium business LAN expansions
• Powering PoE endpoints like IP phones, cameras, and access points
• Environments needing a compact desktop or wall-mounted switch

Key specifications

• Switch type: Unmanaged
• Ports: 8 x RJ-45 Gigabit Ethernet (10/100/1000 Mbps)
• PoE: IEEE 802.3af/at compliant (dynamic PoE output)
• Switching capacity: 16 Gbit/s
• Networking standards: IEEE 802.3x, 802.1p, 802.3ab, 802.3af, 802.3at, 802.3i, 802.3u
• DC input voltage: 48 – 53.5 V
• Colour: Black
• Weight: 0.44 kg

How to use

Place the GWN7701P on a stable surface or mount it on a wall using the provided hardware. Connect power using a compatible 48–53.5 V DC adapter. Plug Ethernet cables into the RJ-45 ports; the switch will automatically detect link speeds and correct cable types via auto-negotiation and auto MDI/MDIX. Connect PoE-powered devices to the PoE-enabled ports to supply power and data over a single cable. No additional configuration is required for typical deployments.

Recommendations

For reliable operation, install the switch in a well-ventilated, dry area away from direct heat sources. Verify PoE power budgets when connecting multiple high-consumption devices to ensure total power requirements do not exceed the switch’s available PoE output. Use quality shielded or unshielded Cat5e/Cat6 cables for optimal Gigabit performance.
