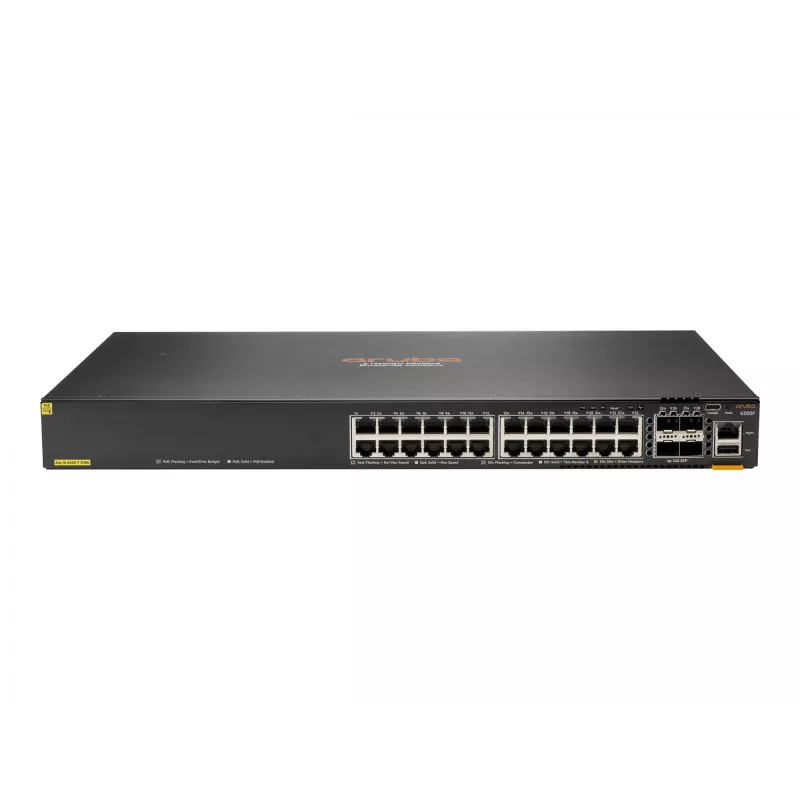

Managed Switch HPE Aruba Networking CX 6200F 24G PoE 4SFP+ 370W

The HPE Aruba Networking CX 6200F 24G PoE 4SFP+ 370W (JL725B) is a managed Layer 3 access switch designed for enterprise branch offices, campuses and SMB networks. It provides 24 Gigabit Ethernet RJ‑45 ports, four SFP+ uplink slots, 370 W of PoE budget and a switching capacity of 128 Gbit/s. The switch uses Aruba Gen7 ASIC architecture and supports features for programmability, analytics and automated configuration verification.

Advantages

The Aruba CX 6200F delivers low-latency, wire-speed switching with distributed architecture and hardware acceleration. Built-in analytics (Aruba Network Analytics Engine and Time Series Database) and support for Aruba NetEdit and the Aruba CX Mobile App simplify monitoring, validation and deployment. Virtual Stacking Framework (VSF) supports stacking up to eight switches and the platform offers robust PoE support for powered devices.

Suitable for (tasks / use cases)

• Enterprise branch office and campus access switching
• Small and medium business networks requiring managed L3 features
• Connecting and powering wireless access points, IP cameras and other PoE IoT devices
• Environments needing automated configuration, telemetry and troubleshooting

Key specifications

• Ports: 24 x Gigabit Ethernet (10/100/1000) RJ‑45
• Uplinks: 4 x SFP+
• PoE budget: 370 W (IEEE 802.3at / 802.3af support)
• Switching capacity: 128 Gbit/s
• Switch type: Managed, Layer 3
• 10G support: Yes
• Weight: 5.1 kg
• Standards: IEEE 802.1p, 802.1Q, 802.1x, 802.3af/at, 802.3ae, 802.3ad, 802.3ab, 802.1s, 802.1w, 802.3z, 802.3x, 802.3az, etc.
• MPN: JL725B

How to use

Install the CX 6200F in a standard 19" rack using the supplied mounting brackets and connect power. Attach uplink SFP+ transceivers to the SFP+ slots and connect core switches or aggregation devices. Connect access devices to the 24 Gigabit RJ‑45 ports. Use the Aruba CX Mobile App for initial discovery and basic stacking, and Aruba NetEdit or the switch CLI/REST APIs for configuration, automation and deployment. Monitor telemetry and analytics via the built-in Network Analytics Engine and Time Series Database to detect and troubleshoot issues.

Recommendations

For deployment, ensure PoE budget planning to match powered device requirements (APs, cameras). When using stacking, follow Aruba VSF guidelines to limit stack length and member count (up to 8) and use recommended transceivers for long-distance front-plane stacking. Keep firmware and Aruba management tools updated to benefit from analytics, automation and security features.
