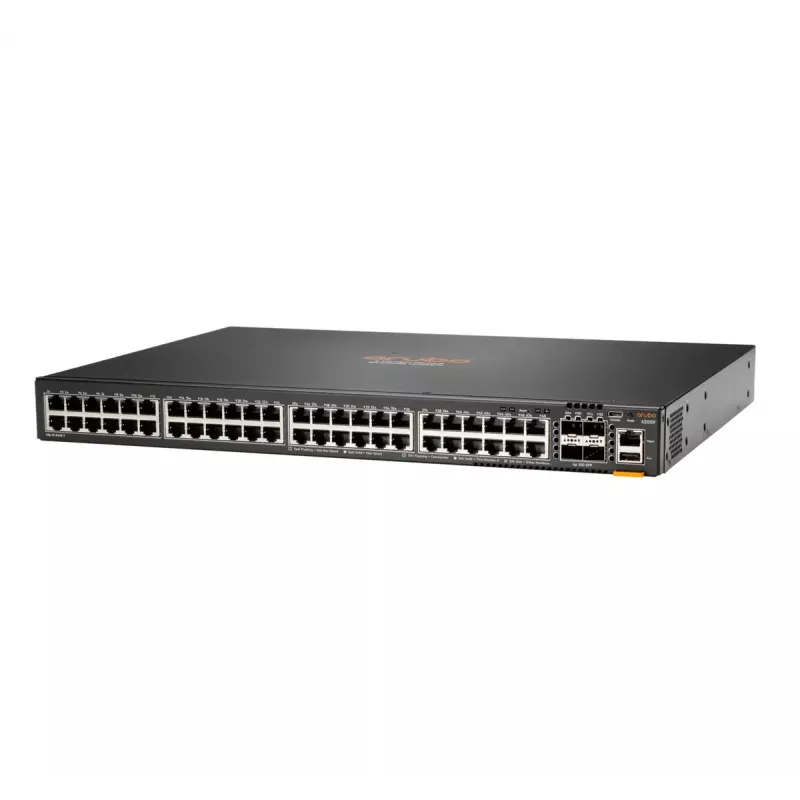

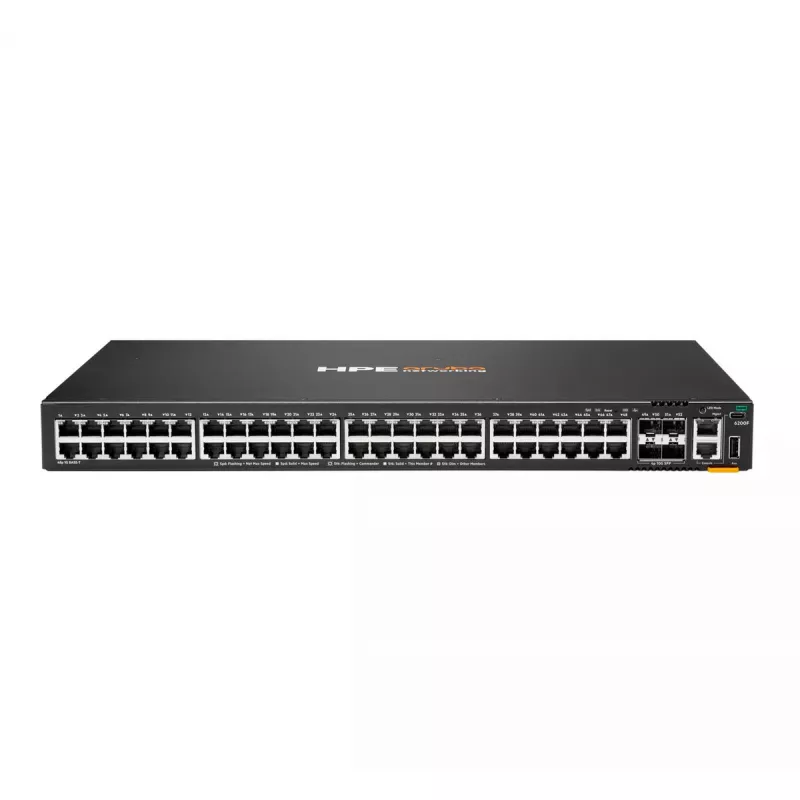

Managed switch HPE Aruba Networking CX 6200F 48G 4SFP+ L3 Gigabit Ethernet

The HPE Aruba Networking CX 6200F (JL726B) is a managed L3 access switch with 48 Gigabit Ethernet RJ-45 ports and 4 SFP+ uplink slots. Designed for enterprise branch offices, campuses and SMB networks, the CX 6200F delivers wire-speed switching and routing, a switching capacity of 176 Gbit/s, and support for Aruba Virtual Switching Framework (VSF) stacking of up to 8 units. Built-in Aruba Gen7 ASICs, high-speed uplinks and up to 740W PoE provide the performance and power to support wireless access points, IP cameras and other IoT devices while integrated analytics and automation simplify monitoring and configuration.

Advantages

The CX 6200F combines high port density with L3 features and stackability to scale access-layer deployments. Aruba Gen7 ASIC architecture ensures low latency and non-blocking performance, while VSF stacking and SFP+ uplinks enable flexible expansion. Embedded telemetry, the Aruba Network Analytics Engine and compatibility with Aruba NetEdit and the Aruba CX Mobile App streamline troubleshooting, mass configuration and conformance checks. Support for up to 740W of PoE enables centralized power for multiple powered devices.

Suitable for

• Enterprise branch offices requiring managed L3 switching
• Campus access edge for wired and wireless aggregation
• SMB networks needing high port density and PoE support
• Deployments that require stacking and centralized management

Key specifications

• Model: HPE Aruba Networking CX 6200F (JL726B)
• Ports: 48 x Gigabit Ethernet (10/100/1000) RJ-45
• Uplinks: 4 x SFP+ (10Gbps)
• Switching capacity: 176 Gbit/s
• Layer: Managed L3 switch
• PoE: Up to 740W total PoE budget (IEEE 802.3at Class 4 support)
• Stacking: Aruba Virtual Switching Framework (VSF), up to 8 switches
• Architecture: Aruba Gen7 ASICs, wire-speed switching and routing
• Weight: 5.1 kg
• Standards: IEEE 802.1Q, 802.1x, 802.1p, 802.3ad, 802.3az, 802.3x and others

How to use

Mount the CX 6200F in a standard 19-inch rack and connect power and network cabling according to site design. Use the Aruba CX Mobile App for initial discovery and basic stacking, or connect to Aruba NetEdit for automated configuration and validation across multiple switches. Configure VLANs, routing, QoS and access policies through the Aruba CX operating system (OS) using the CLI, REST APIs or NetEdit workflows. If PoE devices are used, verify power budget allocation and port-level settings to ensure adequate power for access points and IoT devices.

Recommendations

For optimal performance, deploy the CX 6200F in the access layer with VSF stacking for high availability and simplified management. Monitor telemetry and NAE alerts to detect and resolve issues proactively, and use Aruba NetEdit to validate configuration changes before wide deployment.
