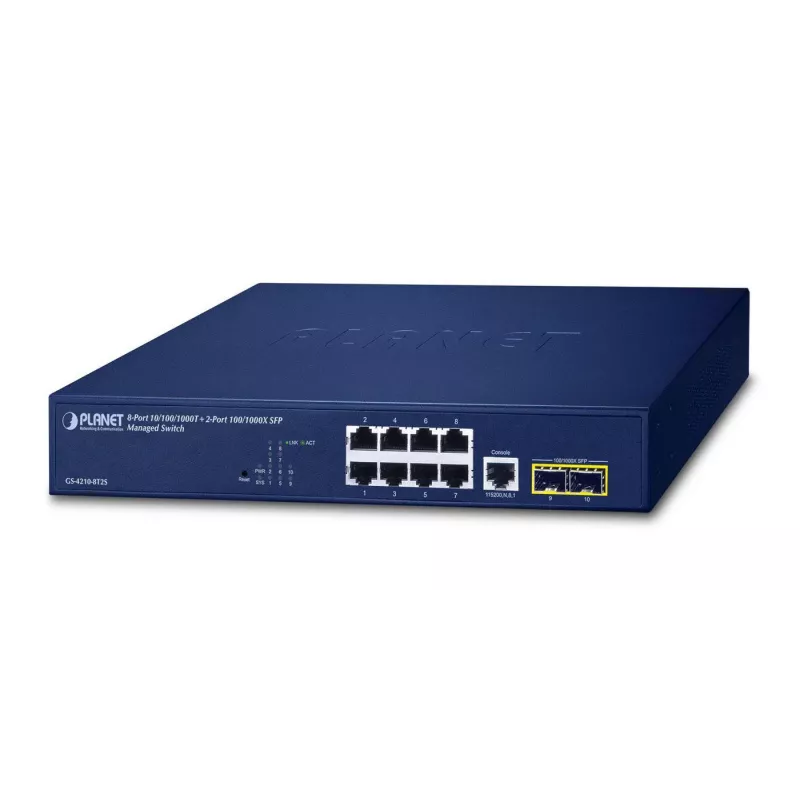

Managed switch PLANET GS-4210-8T2S

PLANET GS-4210-8T2S is an 8-port Gigabit managed Ethernet switch with two SFP uplink slots, designed to build a full Gigabit backbone and extend networks over fiber. The switch offers 8 10/100/1000BASE-T copper ports, 2 100/1000BASE-X SFP fiber interfaces, a 20 Gbit/s switching capacity, support for IPv4/IPv6 dual stack, and a fanless metal housing suitable for desktop or rack deployment.

Advantages

The GS-4210-8T2S combines advanced L2/L4 switching, comprehensive security features and redundant ring protection in a compact, fanless design. It supports IPv6/IPv4 management, robust QoS and traffic control, SFP digital diagnostic monitoring (DDM) and multiple management interfaces (Web, CLI, SNMPv3), making it suitable for business and SOHO networks that require secure, reliable fiber uplinks and efficient traffic handling.

Suitable for

• Small and medium business core or edge network switches
• SOHO networks requiring fiber uplinks to backbone or monitoring centers
• Environments needing silent, fanless operation (office, meeting rooms)
• Deployments requiring redundant ring protection and fast recovery (industrial or campus)

Key specifications

• Ports: 8 × 10/100/1000BASE-T RJ-45; 2 × 100/1000BASE-X SFP
• Switching capacity: 20 Gbit/s
• MAC address table: 8,000 entries
• Management: Web GUI, CLI (console/Telnet), SNMP (including SNMPv3), SSHv2, TLSv1.2
• Layer features: L2/L4 ACL, 802.1Q VLAN, Q-in-Q, MSTP, ERPS (G.8032), LLDP
• Security: DHCP Snooping, Dynamic ARP Inspection, 802.1x (port- and MAC-based), RADIUS, TACACS+
• QoS & traffic: DSCP, per-port bandwidth control, storm control, IGMP/MLD snooping
• SFP: 100BASE-FX and 1000BASE-SX/LX support, SFP auto-detection, SFP-DDM monitoring
• Form factor & weight: 1U rack-capable / desktop-sized metal housing, weight ~1.315 kg

How to use

Install the GS-4210-8T2S on a desktop or mount in a 1U rack. Connect copper devices to the 8 Gigabit RJ-45 ports and insert SFP transceivers into the two mini-GBIC slots for fiber uplinks. Configure basic settings via the built-in Web GUI or CLI; set VLANs, link aggregation, QoS and security policies according to network design. For long-distance fiber links, choose appropriate SFP modules (multi-mode or single-mode) and verify SFP-DDM parameters through the management interface.

Recommendations

Use SFP modules that match your fiber type and distance requirements, enable SNMPv3 or SSH/TLS for remote management, and activate DHCP Snooping and Dynamic ARP Inspection when connecting untrusted devices. Apply VLAN segmentation and ACLs to separate sensitive traffic and enable ERPS or MSTP to ensure fast recovery in ring topologies.
