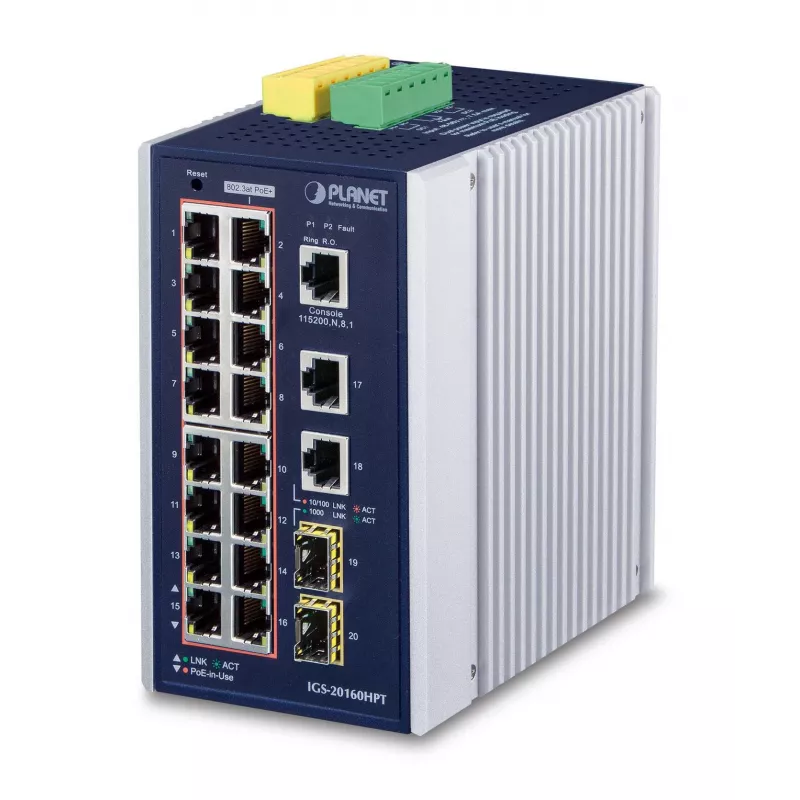

Managed switch PLANET IGS-20160HPT

The PLANET IGS-20160HPT is a managed L2/L3 industrial Gigabit Ethernet switch with 18 ports and integrated Power over Ethernet (PoE+). Housed in an IP30 metal case for harsh environments, it provides 16 10/100/1000BASE-T PoE+ ports (each up to 36 W) and dual 100/1000/2500BASE-X SFP slots, a total PoE budget of 320 W, and Layer 3 routing with OSPFv2 support. The device offers comprehensive IPv4/IPv6 management, strong cybersecurity features, redundant ring and rapid recovery technologies, and extended operating temperature for reliable industrial deployments.

Advantages

The IGS-20160HPT delivers industrial-grade reliability with an IP30 rugged metal enclosure and a wide operating temperature range (-40 to 75 °C). It combines Layer 2 and Layer 3 functions including VLAN, ACL, QoS, and OSPFv2 dynamic routing, plus advanced PoE management (PoE schedule, scheduled power recycling, intelligent alive check) to support high-power cameras and wireless APs. Built-in security (SSHv2, TLS, SNMPv3, DHCP Snooping, IP Source Guard, ARP Inspection, 802.1x, RADIUS/TACACS+) and redundancy mechanisms (ITU-T G.8032 ERPS, MSTP, dual power input) improve uptime and reduce operational risk.

Suitable for

• Outdoor and indoor IP surveillance systems with PoE cameras (including PTZ)
• Wireless network deployments requiring high-power PoE access points
• Industrial automation and SCADA/Modbus TCP integration
• Carrier and telecom edge applications requiring IEEE 1588 timing

Key specifications

• Ports: 16 × 10/100/1000BASE-T PoE+; 2 × multi-rate SFP (100/1000/2500BASE-X)
• PoE standard and power: IEEE 802.3at PoE+, up to 36 W per port, total PoE budget 320 W
• Switching capacity: 46 Gbit/s; MAC table: 32,000 entries
• Layer 3: IPv4/IPv6 static routing, OSPFv2 dynamic routing
• Security: SSHv2, TLS, SNMPv3, DHCP Snooping, IP Source Guard, ARP Inspection, 802.1x, RADIUS, TACACS+
• Redundancy and recovery: ITU-T G.8032 ERPS, MSTP (802.1s), recovery time as fast as 10 ms in ring topology
• Management: Web GUI, console, Telnet, SNMP (v3 supported)
• Industrial features: Digital Input/Output for external alarm, Modbus TCP support, 1588 timing support
• Physical: IP30 metal case, operating temperature -40 to 75 °C, wall/rail mounting, weight 1.548 kg

How to use

Install the switch in the intended industrial location using the provided wall- or DIN-rail mounting options and connect the DC 48–56 V power inputs with redundant supplies if required. Connect PoE devices and fiber uplinks to the appropriate SFP slots. Configure basic network settings and PoE behavior via the web GUI or console; enable VLANs, Layer 3 routing or OSPFv2 as needed. Use the ONVIF detection feature in the GUI to discover and manage IP cameras, and set PoE schedules, alive-check and scheduled power recycling to maintain connected devices.

Recommendations

Use redundant power sources and configure ring protection (ERPS) or MSTP for critical networks. Enable SNMPv3 or SSH/TLS for secure remote management, and apply PoE scheduling and alive-check functions to reduce power consumption and automate recovery of unresponsive PoE devices.
