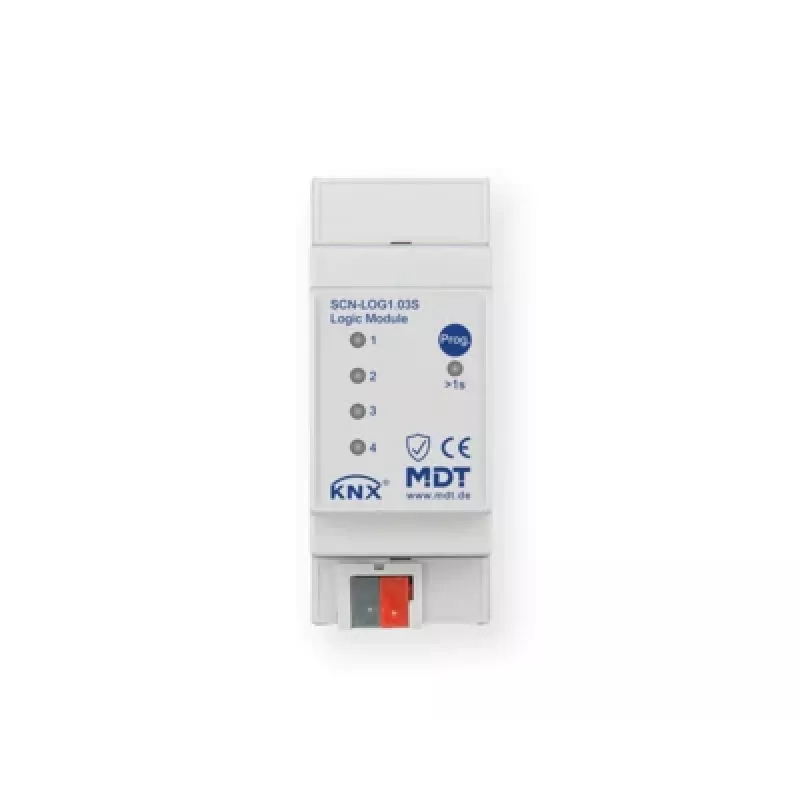

MDT KNX logický modul 2TE REG Secure, 200 logických blokov, DIN lišta, KNX Secure

The MDT KNX Logic Module SCN-LOG1.03S acts as the central intelligence for complex building automation, offering 200 versatile logic blocks and secure encrypted communication in a compact 2 TE DIN rail housing. It excels at sophisticated logic operations, scene management, and time-based control, making it an essential component for advanced KNX installations.

Advantages

The module provides extensive logic functions including AND, OR, XOR, NOT, NAND, NOR, flip-flops, multiplexers, comparators, and thresholds. It supports up to 100 scenes with 100 values each and 10 sequencers with 100 steps, enabling sophisticated lighting, shading, and HVAC control. The KNX Secure feature ensures encrypted communication, protecting your installation from unauthorized access. The compact 2 TE (36 mm) width saves space in distribution boards.

Suitable for

• Building automation in residential and commercial buildings
• Complex logic and scene management
• Time-based control with weekly, yearly, and astronomical timers
• Integration with KNX Secure systems

Key specifications

• 200 logic blocks with versatile functions
• 100 scenes, each with 100 values
• 10 sequencers with 100 steps each
• Timer functions: weekly, yearly, astronomical, delay, pulse, staircase light
• KNX bus powered (21-30V DC), current consumption < 10 mA
• DIN rail mounting, width 2 TE (36 mm)
• Configuration via ETS5 or higher, firmware update via ETS
• Operating temperature -5°C to +45°C, IP20 protection

Recommendations

For integrators seeking a reliable and powerful logic controller, the MDT SCN-LOG1.03S offers unmatched flexibility and security for demanding KNX projects.
