MDT technologies Tlačidlo Light 63 2-násobné RGBW, Studio White, Smooth BE-TAL6302.D1

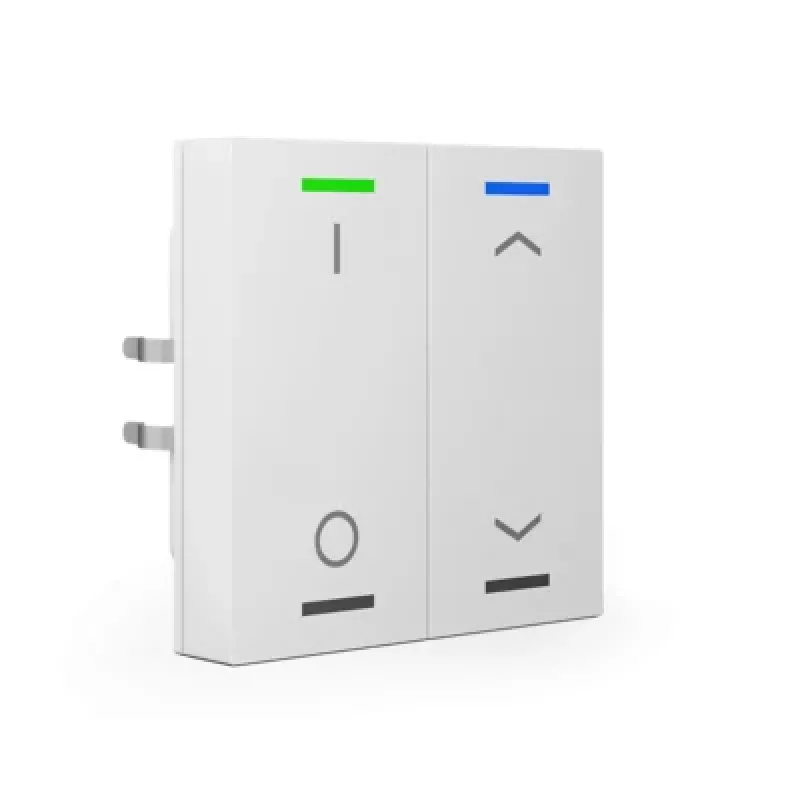

In modern smart homes and building automation projects, the MDT BE-TAL6302.D1 KNX push-button sensor with two buttons and RGBW backlighting provides intuitive control of lighting, blinds, and scenes. Designed for flush mounting in standard 63mm switch ranges, it integrates seamlessly with KNX installations and offers a temperature sensor for room climate monitoring.

Key specifications

• Bus system: KNX (21-30V DC)
• Number of buttons: 2
• Backlight: RGBW, individually adjustable per button
• Integrated temperature sensor
• Functions per button: switching, dimming, blinds, value transmitter, scene recall, sequence (up to 4 functions)
• Logic functions: up to 4 logic blocks (AND, OR, XOR, gating, etc.)
• Colour: Studio White, smooth finish
• Material: plastic
• Protection class: IP20
• Operating temperature: -5°C to +45°C
• Current consumption: max. 10mA from bus
• Configuration: ETS5 or higher

Why choose it

The RGBW backlighting allows colour-coded status indication for each button, enhancing usability in residential and commercial settings. The integrated temperature sensor adds value without extra wiring, and the flexible function assignment makes it suitable for a wide range of control tasks.

Ideal use cases

• Smart lighting control in homes and offices
• Blind and shutter automation
• Scene recall for multi-room ambiances
• Room temperature monitoring via KNX

Good to know

The device is designed for use with 63mm switch ranges and frames. It is configured via ETS software and requires a KNX bus connection. The smooth studio white finish blends with modern interiors.
