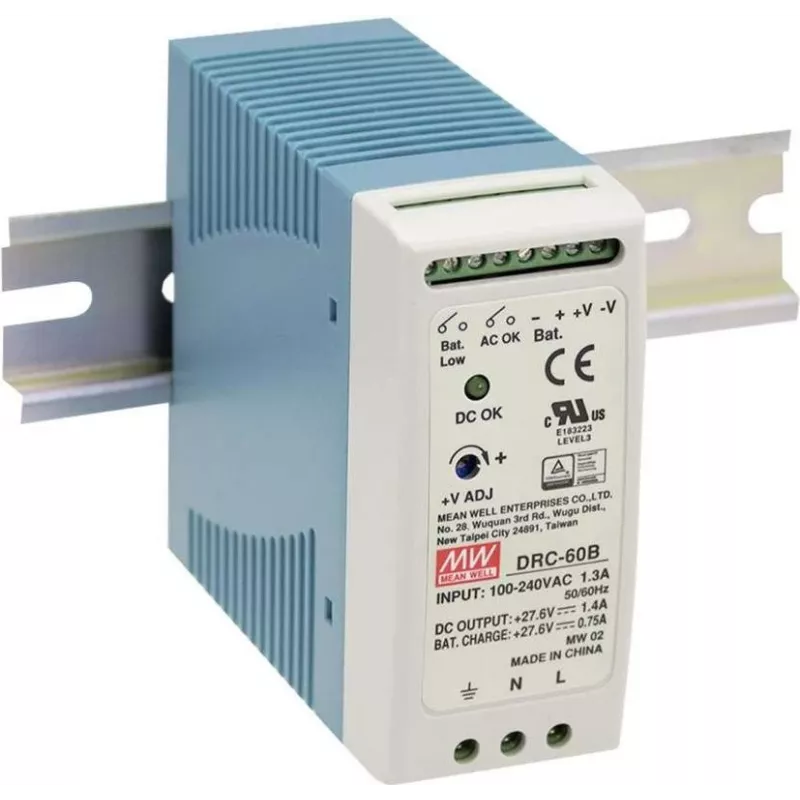

MEAN WELL DRC-60B DIN-lištový UPS modul 60W 13,8V DC pre 12V olovenú batériu

Security installers and access control technicians often need a compact power backup for 12V systems on DIN rails. The MEAN WELL DRC-60B is a 60W DIN rail UPS module that provides 13.8V DC output with battery charging and management for 12V lead-acid batteries. It ensures uninterrupted operation of cameras, locks, and controllers during mains failures, with automatic switchover and protection against deep discharge.

Key specifications

• Output power: 60W
• Load output: 13.8V DC, 3.5A
• Charger output: 13.8V DC, 1.5A
• Input voltage: 90–264V AC (127–370V DC)
• Battery compatibility: 12V lead-acid
• Mounting: DIN rail TS-35/7.5 or 15
• Protections: short circuit, overload, over voltage, battery reverse polarity (fuse)
• Signaling: DC OK, battery low, charger fail
• Efficiency: 86%
• Operating temperature: -30 to +70°C
• Cooling: free air convection
• Isolation: 3kVAC I/P-O/P, 2kVAC I/P-FG, 0.5kVAC O/P-FG
• Ripple & noise: 120mVp-p
• Safety: UL60950-1, TUV EN60950-1, EAC TP TC 004
• EMC: EN55032, EN61000-3-2/-3-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61204-3

Why choose it

This module integrates power supply, charger, and UPS function in one DIN rail unit, saving space and wiring. It protects the battery from over-discharge and provides clear status signals for monitoring. The wide input range and rugged design suit industrial and security environments.

Ideal use cases

• Access control systems
• IP cameras and CCTV
• Building automation
• Industrial control panels
• Alarm systems

Good to know

The DRC-60B is a UPS module, not a complete UPS system; it requires an external 12V lead-acid battery. It is designed for DIN rail mounting and operates silently with convection cooling.
