Mean Well HDR-60-12 12V 60W 5A DIN lištový spínaný napájací zdroj

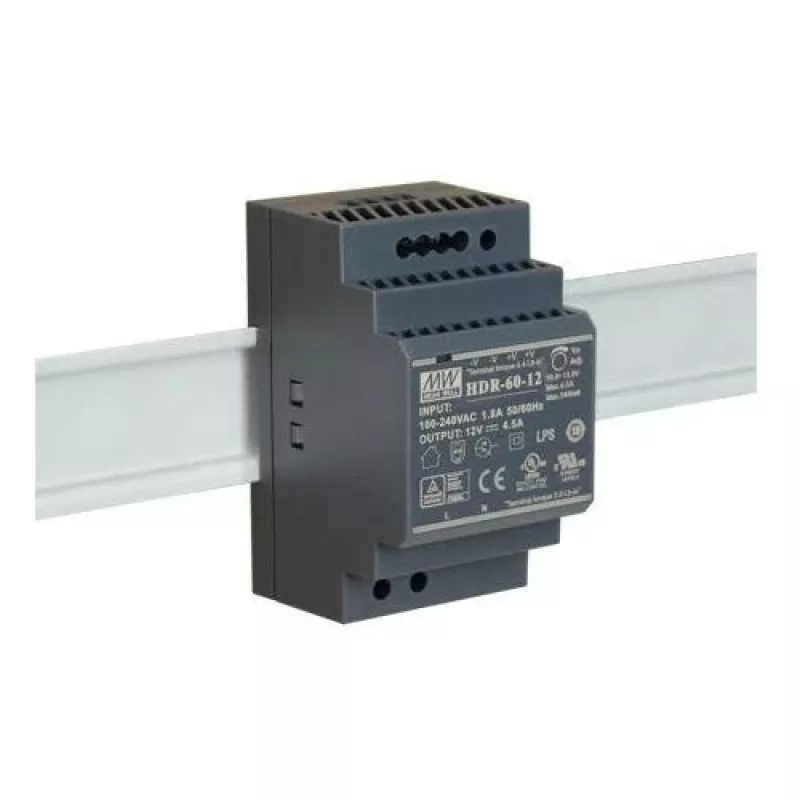

The Mean Well HDR-60-12 is a high-performance DIN rail switching power supply delivering 12V DC output at 60W with a rated current of 5A. Designed for industrial and building automation applications, this compact unit offers reliable power conversion with high efficiency and comprehensive protection features.

Advantages

With an efficiency of up to 88%, the HDR-60-12 minimizes energy loss and heat generation, ensuring long-term reliability. Its free air convection cooling eliminates the need for fans, reducing noise and maintenance. The wide input voltage range (85~264VAC / 120~370VDC) makes it suitable for global use, while the adjustable output voltage (10.8~13.8V) provides flexibility for various loads.

Suitable for

• Industrial control panels
• Building automation systems
• Telecommunication equipment
• LED lighting applications
• Any 12V DC powered devices requiring stable power

Key specifications

• Output: 12V DC, 5A, 60W
• Input: 85~264VAC or 120~370VDC
• Efficiency: 88%
• Mounting: DIN Rail (TS-35/7.5 or TS-35/15)
• Operating Temperature: -30°C to +70°C
• Protection: Short Circuit, Overload, Over Voltage
• Ripple & Noise: 120mVp-p
• Isolation: 3kVAC Input to Output
• Housing: Plastic case
• Certifications: UL 61010-1, TUV EN61010-1, EAC, CE
• EMC: EN55032 Class B, EN61000-3-2, EN61000-3-3, EN55024

Recommendations

For optimal performance, ensure proper ventilation and mounting on a standard DIN rail. This power supply is ideal for applications requiring a compact, reliable 12V source with industrial-grade protection.
