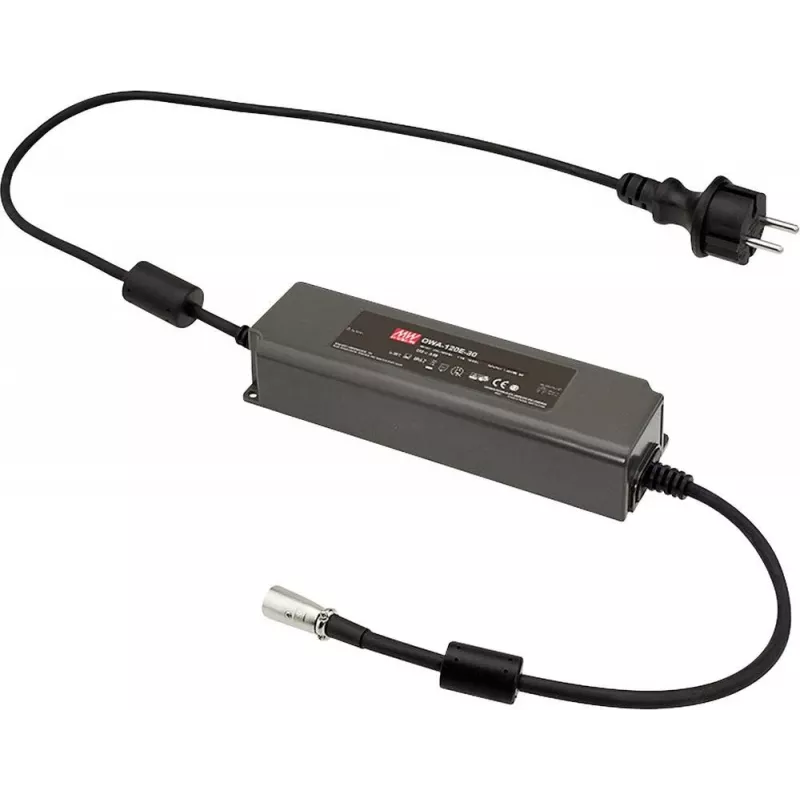

MEAN WELL OWA-120E-24 120W 24V 5A IP67 vonkajší LED napájací zdroj

The MEAN WELL OWA-120E-24 stands apart from typical LED drivers with its fully sealed IP67-rated enclosure, making it ideal for outdoor and wet environments where dust and moisture would compromise standard power supplies. This 120-watt constant voltage driver delivers a stable 24V DC output at up to 5A, with an input range of 180–264VAC that suits a wide variety of mains supplies. Its high efficiency of 90% minimizes energy loss and heat generation, while the wide operating temperature range from -35°C to +70°C ensures reliable performance in harsh climates.

Highlights

• IP67 waterproof and dustproof plastic housing for outdoor and industrial use
• 120W output power with 24V DC constant voltage and 5A rated current
• Wide input voltage range: 180–264VAC, 47–63Hz
• High efficiency up to 90% and low no-load power consumption below 0.15W
• Comprehensive protection: overload, overvoltage, short circuit, and over temperature
• Voltage adjustment range: 22.8–25.2V for fine-tuning output
• Certified to UL, CUL, TUV, CB, and CE safety standards

In daily use

Installation is straightforward thanks to the compact dimensions of 191mm length and 63mm width, and the free air convection cooling eliminates the need for fans, ensuring silent operation. The OWA-120E-24 is perfect for powering LED lighting systems, signage, and other 24V DC equipment in outdoor or challenging environments. Its robust plastic housing resists corrosion and impact, while the wide temperature tolerance allows deployment in freezing cold or scorching heat. The adjustable output voltage lets you compensate for voltage drops over long cable runs, ensuring your LEDs receive the correct voltage for optimal brightness and longevity.

Full specifications

• Brand: MEAN WELL
• Model: OWA-120E-24
• MPN: OWA-120E-24
• EAN: 4021087027311
• Output Voltage: 24V DC (adjustable 22.8–25.2V)
• Rated Current: 5A
• Rated Power: 120W
• Input Voltage: 180–264VAC
• Input Frequency: 47–63Hz
• Efficiency: 90%
• IP Rating: IP67
• Operating Temperature: -35°C to +70°C
• Protection: Overload, Overvoltage, Short Circuit, Over Temperature
• No Load Power Consumption: <0.15W
• Cooling: Free air convection
• Housing Material: Plastic
• Certifications: UL/CUL/TUV/CB/CE (EN60950-1, EN60335-1, EN61558-1/-2-16)
• Dimensions: 191mm (L) x 63mm (W)

Final note

For reliable, efficient, and durable 24V DC power in outdoor or industrial settings, the MEAN WELL OWA-120E-24 is a top-tier choice that combines safety, performance, and longevity.
