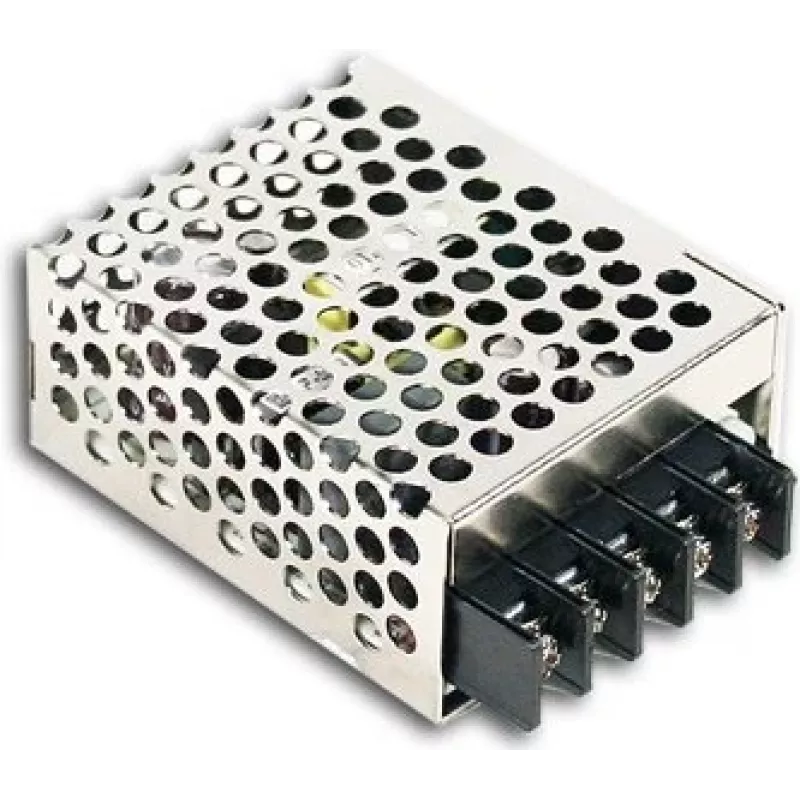

MEAN WELL RS-15-24 15W 24V DC uzavretý spínaný napájací zdroj

The MEAN WELL RS-15-24 is a 15W enclosed switching power supply delivering a stable 24V DC output from a universal AC input. Its compact metallic housing and high efficiency make it an excellent choice for industrial automation, LED lighting, and general electronic applications requiring reliable DC power.

Advantages

With a wide input voltage range of 85–264V AC, this power supply operates globally without switches or adjustments. It offers built-in protections against overvoltage, overload, short circuit, and over temperature, ensuring long-term durability. The unit achieves 83% efficiency and low ripple noise, providing clean power for sensitive devices.

Suitable for

• Industrial control systems
• LED lighting installations
• Test and measurement equipment
• Telecommunication devices
• DIY electronics projects

Key specifications

• Output: 24V DC, 0.63A, 15W
• Input: 85–264V AC, 47–63Hz
• Efficiency: 83%
• Ripple & noise: 150mVp-p
• Protections: Overvoltage, overload, short circuit, over temperature
• Operating temperature: -20 to 70°C
• Isolation: 3kV AC (input to output)
• Housing: Metallic, chassis mount

Recommendations

For reliable 24V DC power in a compact form factor, the MEAN WELL RS-15-24 is a proven solution. Its robust design and comprehensive protections make it suitable for demanding environments. Ensure proper ventilation and adhere to derating guidelines above 50°C ambient temperature.
