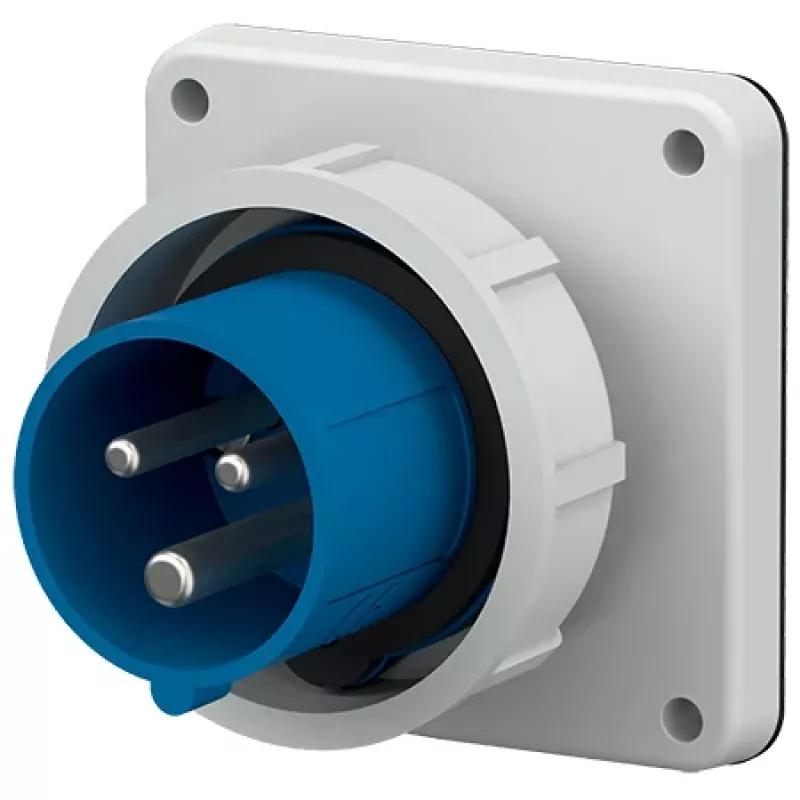

MENNEKES 826 Zabudovaný konektor samec 16A 3-polový 6h 230V IP67 modrý

For industrial and outdoor power connections that demand a secure, weatherproof link, the MENNEKES 826 panel mount plug delivers a dependable 16A, 230V, 3-pole (2P+E) connection with a 6h earth position. Its IP67 rating ensures protection against dust and temporary immersion, making it suitable for harsh environments where reliable power is critical.

Who is it for

This panel mount plug is intended for electricians, panel builders, and maintenance professionals who need to install a robust power inlet on equipment, distribution boards, or enclosures in industrial, agricultural, or outdoor settings. It is ideal for applications requiring frequent connection and disconnection of portable equipment.

Main features

• Rated current: 16 A
• Rated voltage: 230 V AC
• Number of poles: 3-pole (2P+E)
• Earth contact position: 6h
• Ingress protection: IP67
• Connection type: screw terminals
• Housing material: polyamide (PA6)
• Colour: blue
• Flange dimensions: 75 x 75 mm
• Mounting hole spacing: 60 x 60 mm
• Operating temperature range: -25°C to +40°C

Specifications

• Product type: CEE panel mount plug
• Mounting type: flange mount
• Frequency: 50/60 Hz
• Standard compliance: IEC 60309-1, IEC 60309-2

Tips

When installing, ensure the mounting surface is flat and the gasket is properly seated to maintain the IP67 seal. Use appropriate cable glands to preserve the ingress protection rating.
