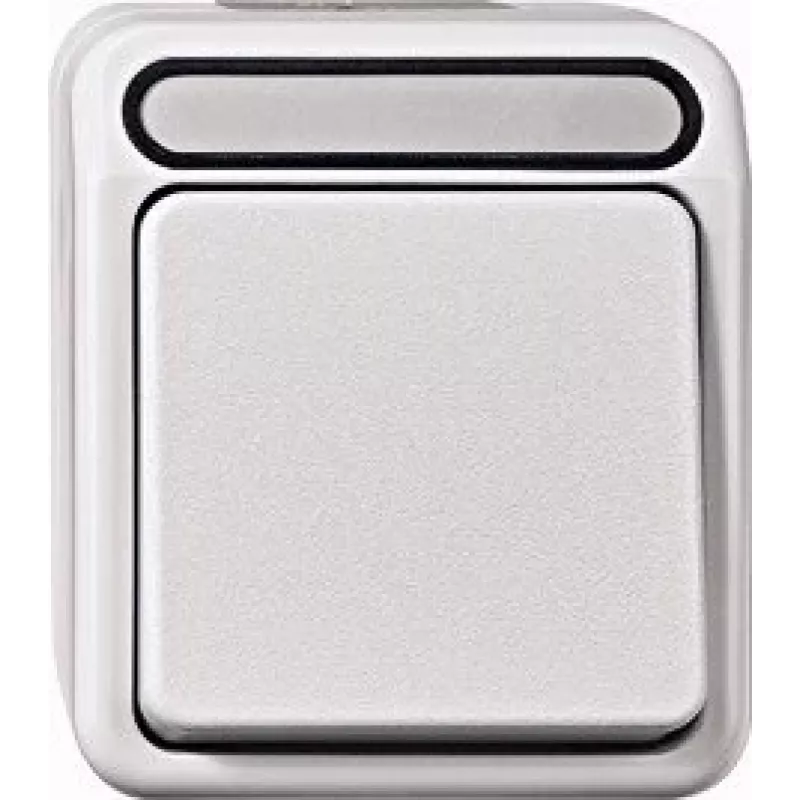

Merten Aquastar 2-pólový kontrolný spínač s kontrolkou, svetlosivý MEG3102-8029

Control switch for damp rooms and protected outdoor areas, featuring a 2-pole on/off function with integrated neon indicator light. Its robust thermoplastic housing and IP44 protection make it ideal for reliable switching in challenging environments.

Advantages

The Aquastar control switch offers a clear visual status indication thanks to the built-in neon lamp, enhancing user convenience and safety. The 2-pole switching ensures complete disconnection of both live and neutral conductors, providing extra safety during maintenance. The surface-mounted design allows for easy installation on various wall types, while the light grey colour blends seamlessly with modern interiors. UV-resistant material prevents discolouration even under direct sunlight, and the wide operating temperature range from -25 to +55 °C guarantees performance in extreme conditions.

Suitable for

• Bathrooms and shower rooms (damp areas)
• Covered outdoor spaces such as terraces and balconies
• Utility rooms and basements
• Commercial kitchens and laundry facilities
• Any application requiring a visible switch status

Key specifications

• Product type: Control switch with indicator light
• Number of poles: 2-pole
• Switch function: On/Off
• Series: Aquastar
• Mounting type: Surface-mounted
• Colour: Light grey
• Current rating: 10 A
• Voltage rating: 250 V AC
• IP protection class: IP44
• Material: Thermoplastic, UV-resistant
• Connection type: Screw terminals
• Max. conductor cross-section: 2.5 mm²
• Indicator light type: Neon lamp
• Operating temperature: -25 to +55 °C

Recommendations

For optimal performance, ensure installation is carried out by a qualified electrician in accordance with local regulations. Use appropriate cable glands to maintain the IP44 rating. Regularly check the neon indicator for proper operation and replace the switch if the lamp fails, as it is not user-serviceable.
