METZ CONNECT 12-portový SC-duplex OM4 optický zvárací patch panel 1U 19 palcová racková montáž 150457BB12-F

With an insertion loss of less than 0.3 dB per connection, this METZ CONNECT splice patch panel ensures your OM4 multimode links perform at the top of their class. The 12 SC-duplex ports give you 24 fibers in a single 1U rack unit, making it a dense yet manageable solution for data centers and enterprise networks.

Overview

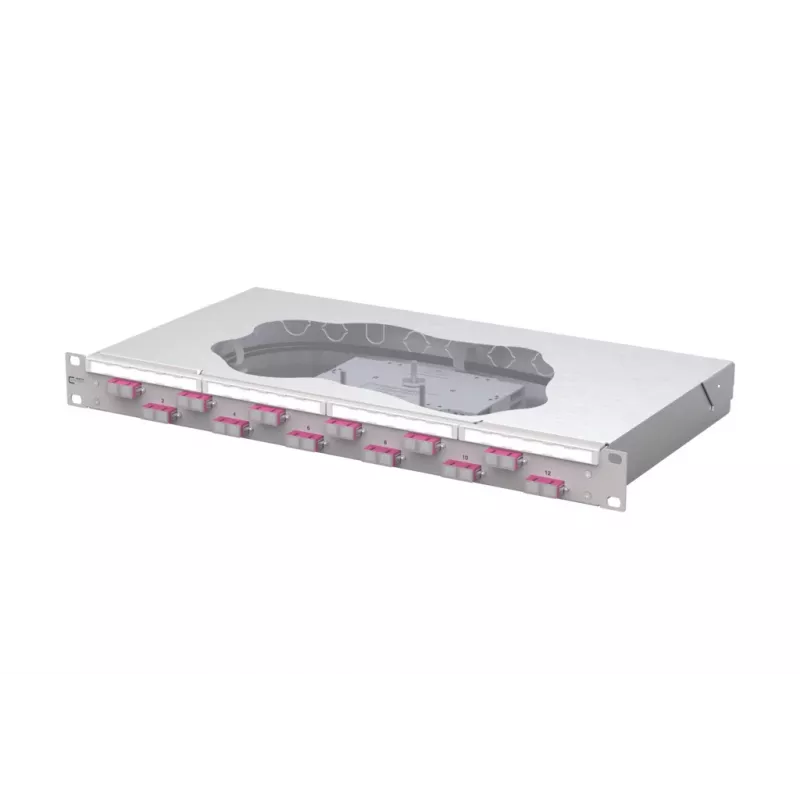

The METZ CONNECT 150457BB12-F is a pre-assembled fiber optic splice patch panel built for 19-inch rack mounting. It comes with 12 SC-duplex adapters on the front and integrated splice cassettes at the rear, allowing quick fusion or mechanical splicing of 24 OM4 multimode fibers. The steel housing is finished in light grey and occupies just 1U of rack space, ideal for high-density fiber distribution in structured cabling systems.

What stands out

• Pre-assembled with OM4 pigtails and splice cassettes for fast deployment
• 12 SC-duplex ports support 24 fibers in a compact 1U footprint
• Low insertion loss (<0.3 dB) and high return loss (>20 dB) ensure reliable performance
• Robust steel construction with IP20 protection for indoor use
• Compliant with IEC 61753-1 and TIA/EIA-568-C.3 standards

Technical details

• Connector type: SC-Duplex
• Number of ports: 12 (24 fibers total)
• Fiber mode: Multimode OM4
• Pigtail length: 2 m
• Pigtail connector: SC
• Insertion loss (typical): < 0.3 dB
• Return loss (typical): > 20 dB
• Operating temperature: -10°C to +60°C
• Housing material: Steel, light grey
• Mounting: 19-inch rack, 1U height
• Protection class: IP20
• Standards: IEC 61753-1, TIA/EIA-568-C.3

Our verdict

A dependable, ready-to-splice panel that combines OM4 performance with practical rack density. The pre-installed pigtails and cassettes cut installation time significantly, while the low insertion loss keeps your network running at full speed.
