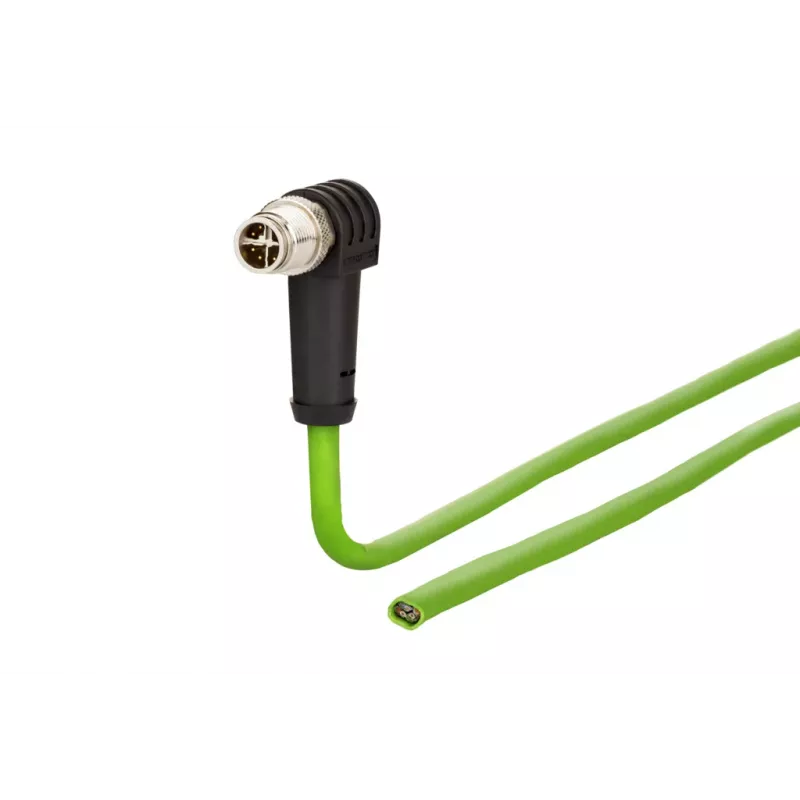

METZ CONNECT 142M2X90100 - 10 m - Cat6a - M12 priemyselný Ethernet patch kábel

The METZ CONNECT 142M2X90100 is a high-performance industrial Ethernet patch cable designed for reliable 10 Gigabit data transmission in harsh environments. With a length of 10 meters and Cat.6A (Class EA) certification, this cable supports PoE++ and is ideal for factory automation, machine vision, and industrial networking applications.

Advantages

Robust S/FTP shielding minimizes electromagnetic interference, ensuring stable data transfer. The PUR jacket provides excellent resistance to oils, chemicals, and mechanical stress, while the IP67-rated M12 X-coded connectors guarantee a secure, dust-tight, and waterproof connection. Halogen-free and flame-retardant materials enhance safety in industrial settings.

Suitable for

• Industrial Ethernet networks requiring 10 Gbit/s data rates
• Automation systems, robotics, and machine vision
• Outdoor or harsh indoor environments with exposure to moisture, dust, or vibration
• Power over Ethernet (PoE, PoE+, PoE++) devices such as cameras, sensors, and access points

Key specifications

• Cable Type: Industrial Ethernet Patch Cable
• Cable Category: Cat.6A (Class EA)
• Transmission Standard: 10 Gigabit Ethernet (IEEE 802.3an)
• Data Rate: 10 Gbit/s

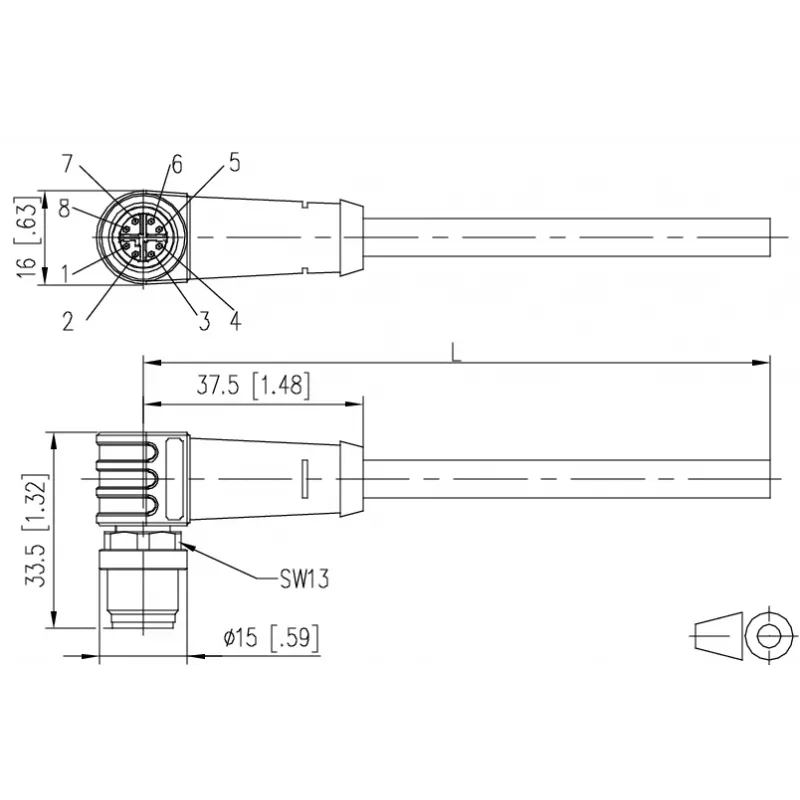

• Connector 1 Type: M12 X-coded (Male)
• Connector 2 Type: M12 X-coded (Male)
• Pin Assignment: 8-pin, X-coded
• Cable Length: 10 m
• Shielding: S/FTP (PiMF)
• Jacket Material: PUR (Polyurethane)
• Jacket Color: Green
• Conductor Material: Copper (Cu)
• Conductor Size: AWG 26/7 (stranded)
• Number of Pairs: 4 pairs
• Impedance: 100 Ohm
• IP Rating (mated): IP67
• Operating Temperature: -40°C to +85°C
• PoE Support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Halogen-free: Yes
• Flame Retardancy: IEC 60332-1-2

Recommendations

For optimal performance, pair this cable with compatible M12 X-coded connectors and switches. Ensure proper strain relief and avoid sharp bends to maintain signal integrity.
