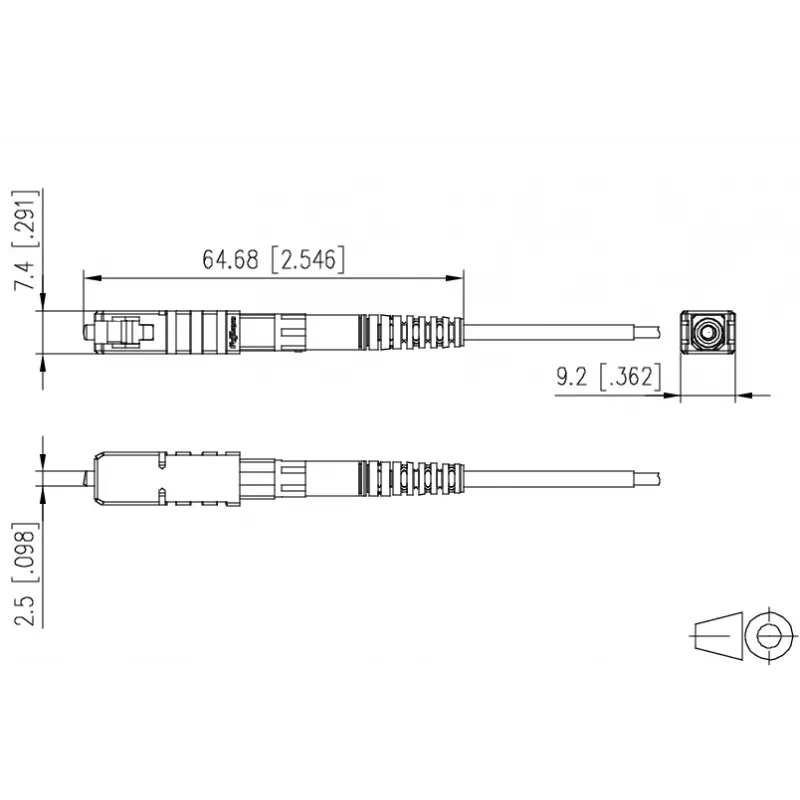

METZ CONNECT 1509QKEA002C-E SC/PC OS2 Singlemode pigtail 2m zelená 20 ks

The METZ CONNECT 1509QKEA002C-E is a high-quality fiber optic pigtail designed for reliable single-mode connections in data centers, telecommunications, and FTTx networks. Each pigtail features an SC/PC connector, OS2 single-mode fiber with 9/125 µm core/cladding, and a 2-meter length, all in a vibrant green connector color for easy identification. The pack includes 20 pieces, making it ideal for bulk installations.

Advantages

Low insertion loss (≤0.3 dB) and high return loss (≥50 dB) ensure excellent signal integrity. The LSZH jacket provides safety in enclosed spaces, while the 0.9 mm buffer diameter offers flexibility. Compliant with RoHS and REACH standards.

Suitable for

• Data center cabling
• Telecommunications networks
• FTTx deployments
• Indoor fiber optic installations

Key specifications

• Connector: SC/PC
• Fiber type: OS2 single-mode
• Core/Cladding: 9/125 µm
• Fiber standard: ITU-T G.657.A1 (G.652.D compatible)
• Cable length: 2 m
• Connector color: Green
• Quantity: 20 pieces
• Jacket material: LSZH
• Buffer diameter: 0.9 mm
• Insertion loss: ≤0.3 dB
• Return loss: ≥50 dB
• Min. bend radius: 10 mm (10 turns)
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Durability: >500 mating cycles
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with compatible OS2 patch panels and splice closures. Ensure proper handling to maintain low loss characteristics.
