METZ CONNECT OpDAT patch kábel SC-S/LC-S OS2 5,0 m

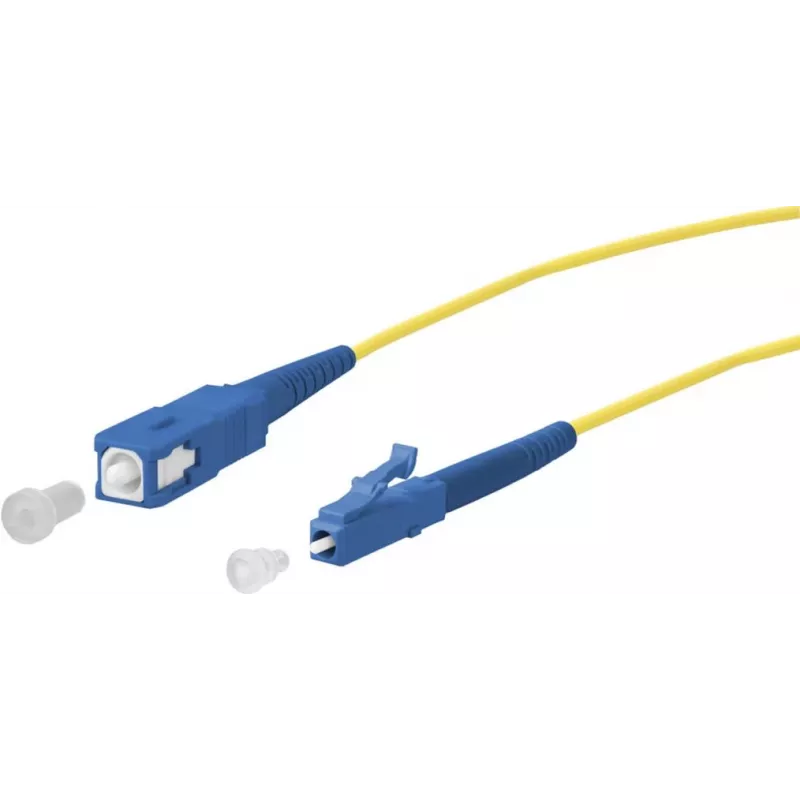

The METZ CONNECT OpDAT Patch Cable SC-S/LC-S OS2 5.0 m is a high-quality fiber optic patch cable designed for reliable singlemode connections in data centers, telecommunications, and enterprise networks. With a length of 5.0 meters, it features SC simplex to LC simplex connectors and OS2 fiber type, ensuring low insertion loss and high return loss for optimal signal integrity.

Advantages

This patch cable offers excellent performance with maximum insertion loss of ≤0.3 dB and minimum return loss of ≥50 dB (UPC). The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, while the yellow color ensures easy identification. The 2.0 mm cable diameter and 9/125 µm core/cladding make it ideal for high-speed data transmission.

Suitable for

• Data center cabling
• Telecommunications networks
• Enterprise LAN and WAN connections
• Fiber-to-the-desk (FTTD) applications
• Test and measurement equipment

Key specifications

• Connector A: SC Simplex
• Connector B: LC Simplex
• Fiber Mode: Singlemode
• Fiber Type: OS2 (G.657.A1/A2 compatible)
• Cable Length: 5.0 m
• Core/Cladding Diameter: 9/125 µm
• Jacket Material: LSZH
• Jacket Color: Yellow
• Cable Diameter: 2.0 mm
• Number of Fibers: 1 (Simplex)
• Insertion Loss (Max): ≤0.3 dB
• Return Loss (Min): ≥50 dB (UPC)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -20°C to +70°C
• Attenuation @ 1310nm: ≤0.4 dB/km
• Attenuation @ 1550nm: ≤0.3 dB/km
• Minimum Bend Radius (Dynamic): 30 mm
• Minimum Bend Radius (Static): 10 mm
• Standards Compliance: IEC 61753-1, IEC 61754-20, RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SC and LC ports. Store in a clean, dry environment within the specified temperature range.
