METZ CONNECT podomietkové puzdro IP44 2 port neosadené pre MC modul čistobiela

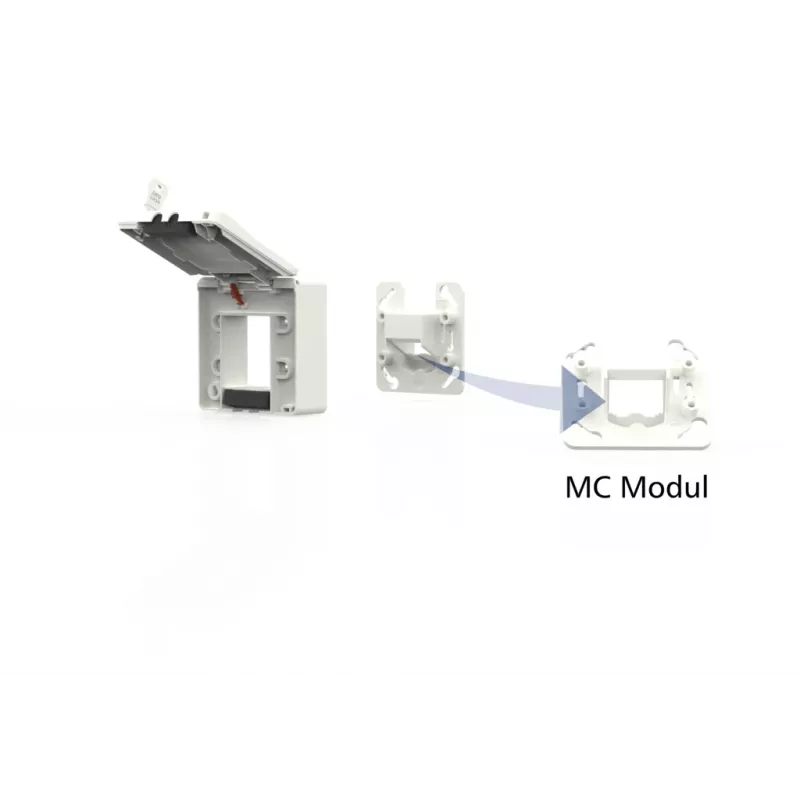

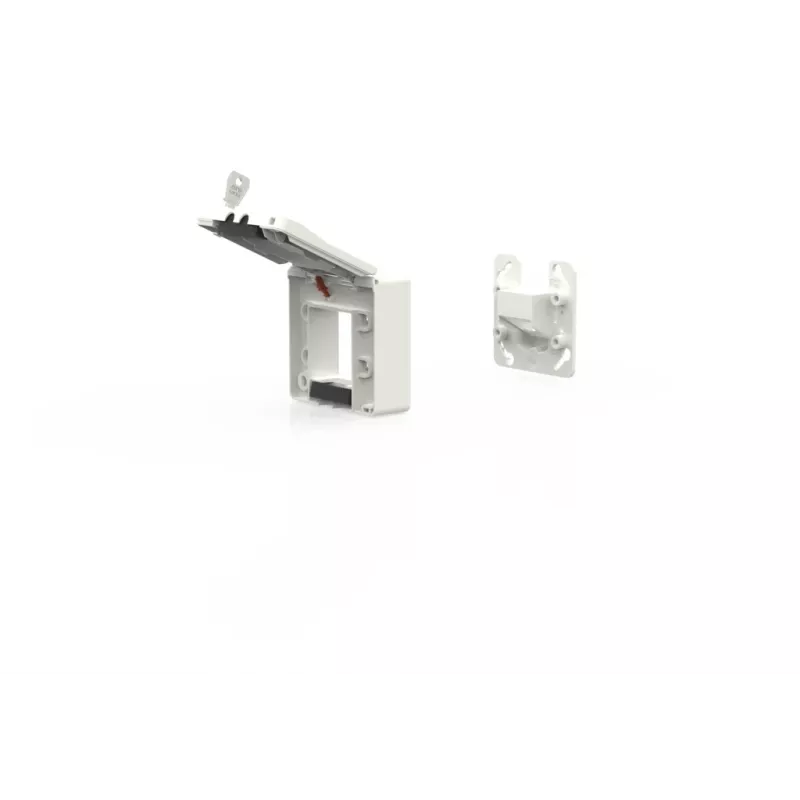

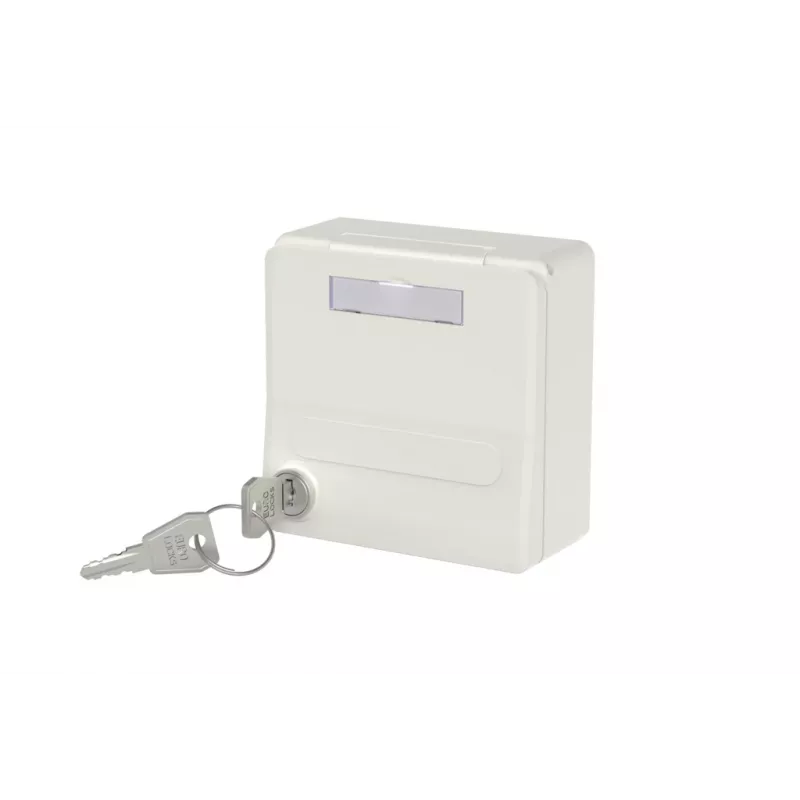

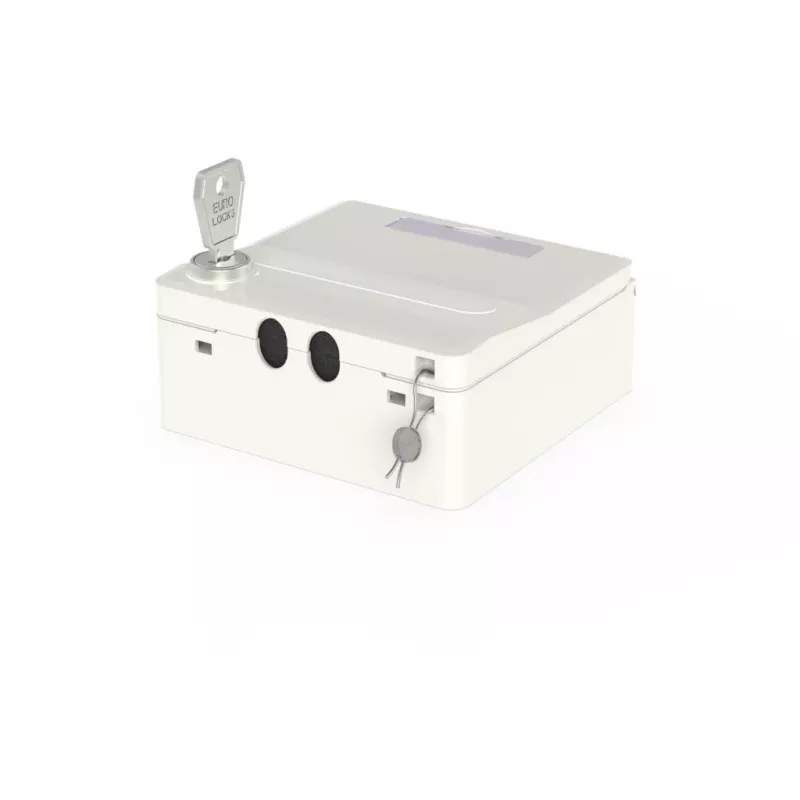

The METZ CONNECT Flush-Mount Housing IP44 is a high-quality, unpopulated enclosure designed for use with METZ CONNECT MC modules. Ideal for structured cabling and data network installations, this housing provides reliable protection and a clean, professional finish.

Advantages

IP44 protection ensures dust and splash water resistance, making it suitable for demanding environments. The flush-mount design integrates seamlessly into walls, while integrated dust protection flaps keep ports clean when not in use. Halogen-free materials contribute to safety and environmental compliance.

Suitable for

• Data outlets and network sockets in commercial and residential buildings
• Structured cabling systems requiring IP44 protection
• Installations with METZ CONNECT MC modules

Key specifications

• Housing Type: Flush-mount (Unterputz)
• Number of Ports: 2
• Module Compatibility: METZ CONNECT MC Modules
• Delivery State: Unpopulated (unbestückt)
• IP Protection Class: IP44
• Color: Pure White (RAL 9010)
• Material: Plastic
• Mounting Depth: 30 mm
• Cable Entry: Rear
• Dust Protection: Integrated dust protection flaps
• Design: Central plate with cover frame
• Operating Temperature: -5 °C to +50 °C
• Storage Temperature: -20 °C to +70 °C
• Halogen-free: Yes
• Standards Compliance: DIN EN 50173-1, ISO/IEC 11801 (system relevant)
• Application Area: Structured cabling, data networks
• Mounting Type: Screw mounting

Recommendations

For optimal performance, pair this housing with genuine METZ CONNECT MC modules. Ensure proper screw mounting for secure installation.
