Kábel BTR NETCOM M12 1m

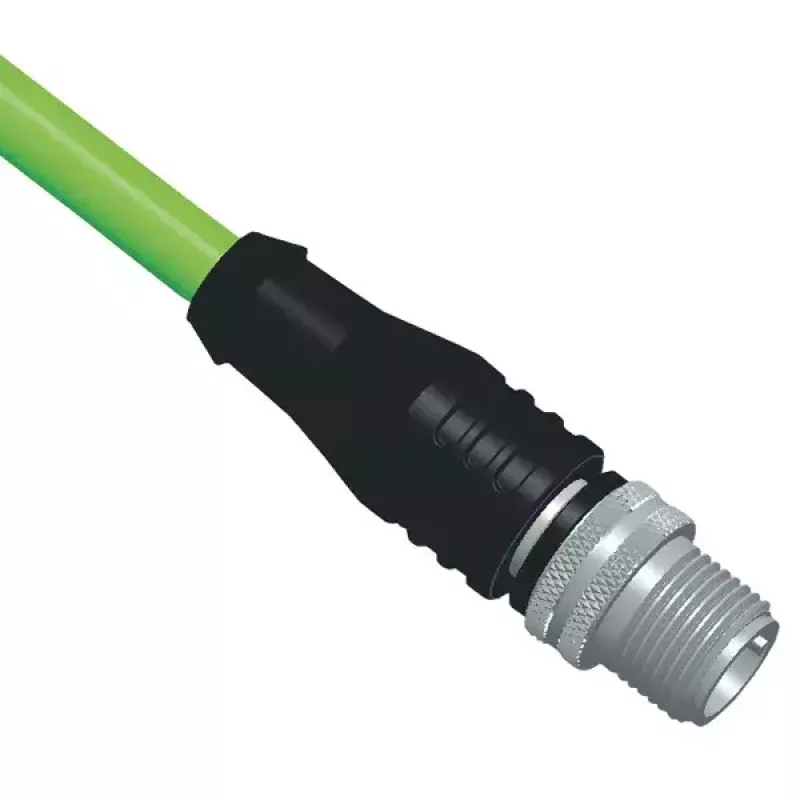

BTR NETCOM M12 1m is a shielded M12 Ethernet connection cable conforming to IEC 61076-2-101. The 1 metre Cat.5e cable uses a D-coded, 4‑pole straight M12 connector and a PUR outer jacket in green. It includes an extrusion-coated connector area and construction suited for industrial Ethernet and Profinet wiring.

Advantages

The cable provides reliable data transmission with overall shielding (tinned copper braid, approx. 85% coverage) and an aluminum-coated plastic foil around the pairs. Its 2x2xAWG22 (0.75 mm) stranded conductors with plastic foil and FRNC inner sheath improve signal integrity and mechanical flexibility. The D-coded M12 straight connector and robust PUR jacket increase durability in industrial environments.

Suitable for

• Industrial Ethernet connections
• Profinet (WS-GE-BL-OR) wiring
• Machines and automation equipment requiring M12 D-coded connectors
• Short-distance device-to-device links (1 m)

Key specifications

• Length: 1 m
• Standard: IEC 61076-2-101
• Category: Cat.5e
• Connector: M12, D-coded, 4‑pole, straight
• Conductor: 2x2xAWG22 (0.75 mm) stranded
• Inner sheath: FRNC with aluminum-coated plastic foil
• Overall shield: tinned copper braid, ~85% coverage
• Cable jacket: green PUR
• Manufacturer: BTR, MPN: 142M1D11010, EAN: 4250184139447

How to use

Connect the straight D-coded M12 connectors to matching M12 D-coded ports on devices or sockets, ensuring the connectors are securely tightened to maintain shielding continuity. Route the 1 m cable so it is not subjected to sharp bends or excessive tensile stress. The cable is ready for use in Cat.5e Ethernet and Profinet installations without additional preparation.

Recommendations

For best performance, avoid repeated tight bending near the connector ends and maintain proper grounding of the shield on both ends where required by the network topology. Use the cable in environments compatible with a PUR jacket and FRNC inner sheath.
