Microconnect FIB441010 InfiniBand/optické vlákno kábel 10 m LC žltý

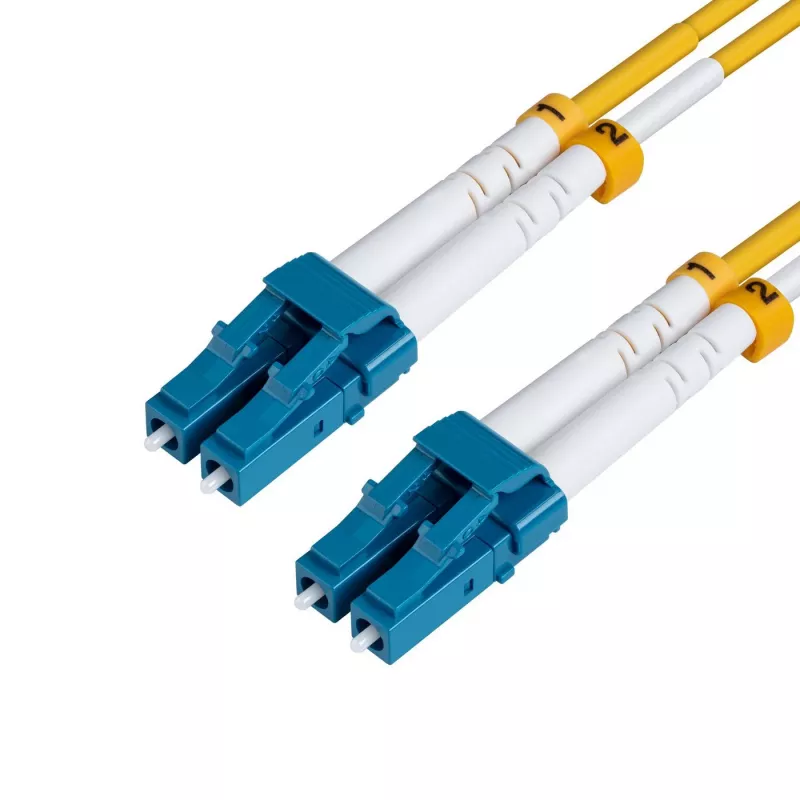

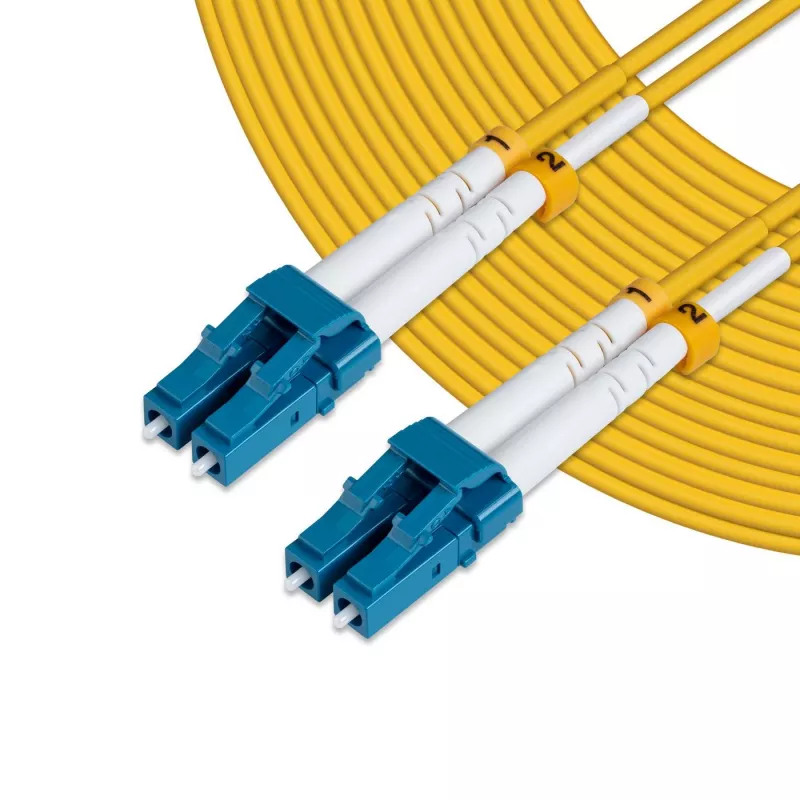

Microconnect FIB441010 is a 10 m single mode fibre optic patch cable with LC–LC connectors and OS2 fibre (9 µm core). Designed for enterprise networks, telecom rooms, server farms and cloud storage networks, this yellow patch cord supports full-duplex 1G/10G/40G/100G Ethernet links and provides visible cable identification in installations. The cable is manufactured with LSZH sheathing and conforms to common industry standards for fibre links.

Advantages

The LC OS2 patch cord enables long-reach data transmission (up to 10 km at 1310 nm and up to 40 km at 1550 nm) and offers low attenuation thanks to the single mode OS2 fibre. Its 10 m length and LC connectors make it compatible with standard networking equipment and high-density panels. The yellow LSZH jacket improves visibility and reduces smoke and toxic emission risk in the event of a fire.

Suitable for

• Enterprise LAN and backbone connections
• Telecom rooms and MDF/IDF racks
• Server farms and data centre interconnects
• Cloud storage networks and high-speed Ethernet links (1G–100G)

Key specifications

• Brand: MicroConnect
• Model / MPN: FIB441010
• Fibre type: Single mode OS2, core 9 µm
• Connectors: LC to LC (duplex)
• Cable length: 10 m
• Colour: Yellow
• Sheath: LSZH
• Weight: 0.08 kg
• Reach: up to 10 km @ 1310 nm, up to 40 km @ 1550 nm

How to use

Connect each LC connector into the corresponding LC port on your transceiver, patch panel or network device, ensuring correct duplex orientation. Route the cable without sharp bends, maintain minimum bend radius recommended by the manufacturer, and secure it to cable management elements to avoid strain. Verify link status and perform optical power or continuity testing if required.

Recommendations

Store and handle the OS2 LC patch cord in a clean environment, avoid contaminating connector endfaces and clean connectors with appropriate fibre cleaning tools before mating. Use in installations where LSZH jacket is required for reduced smoke/toxicity.
