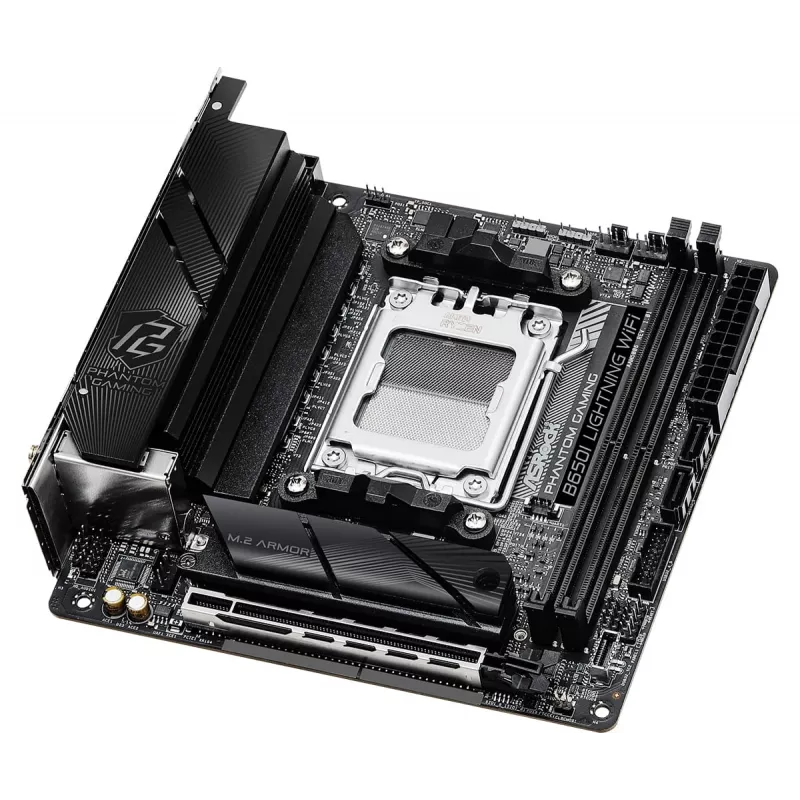

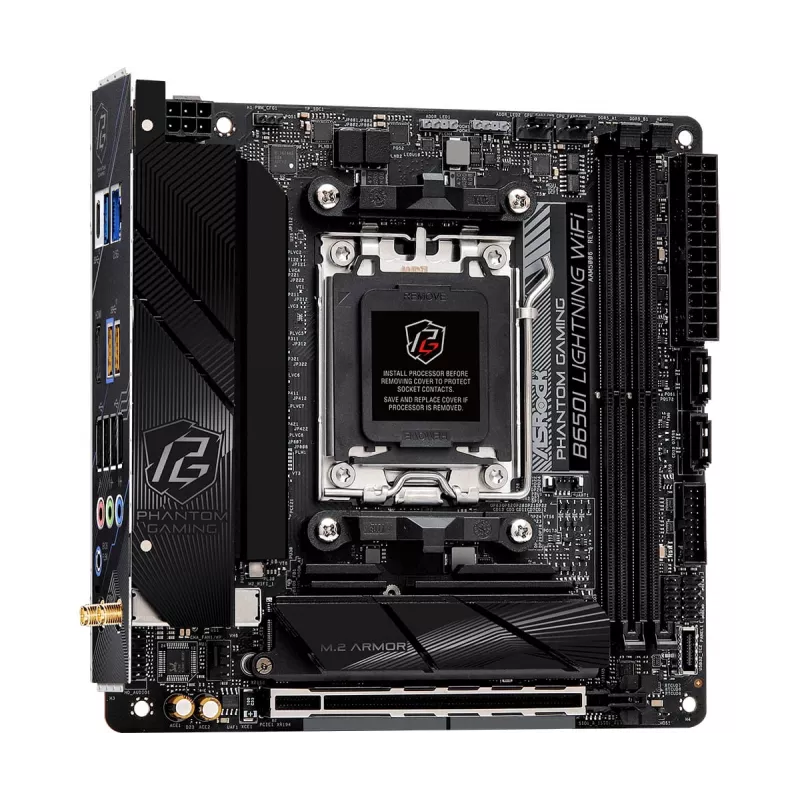

Mini-ITX základná doska ASRock B650I Lightning WiFi — AMD B650, socket AM5, DDR5, 2 DIMM (max. 96 GB), Wi-Fi 6E, 2,5Gb LAN

ASRock B650 series motherboard delivers an optimized VRM design with integrated Dr.MOS power stages for stable synchronous buck conversion, ensuring smooth power delivery and improved thermal performance. The 8-layer PCB provides stable signal traces and better power distribution for enhanced DDR5 memory overclocking. Reinforced steel PCIe slot (PCIe 4.0 version) supports heavy graphics cards with improved anchoring and signal stability. The board supports advanced overclocking features including Blazing OC Tuner and Precision Boost Overdrive (PBO), Nahimic Audio with Sound Tracker, Lightning Gaming Ports for low-latency peripherals, Polychrome RGB headers, high-speed M.2 (PCIe 5.0 ready), Phantom Gaming 2.5 Gb/s LAN, Wi‑Fi 6E, EZ Setting for driver installation and easy BIOS flashing, and an adjustable pre-mounted I/O shield for easier chassis fitting.

Advantages

The integrated Dr.MOS VRM offers higher current per phase and lower thermal loss compared to discrete MOSFET solutions, resulting in stable CPU power delivery. An 8-layer PCB improves signal integrity and energy efficiency for memory overclocking. Reinforced steel PCIe slot increases mechanical support for heavy GPUs and maintains signal stability. Blazing OC Tuner provides automatic switching between manual OC and PBO to combine multi-core overclocking with single-core boost without entering BIOS. Nahimic Audio enhances voice clarity and noise suppression across various output devices. Polychrome RGB headers support addressable and standard LED strips for synchronized lighting. High-speed M.2 (PCIe 5.0 ready) and 2.5 Gb/s LAN increase storage and network throughput while Wi‑Fi 6E provides expanded spectrum and lower latency. EZ Setting simplifies driver installation and USB BIOS Flashback enables BIOS updates without CPU or RAM.

Key specifications

• VRM: Dr.MOS integrated power stage, optimized for synchronous buck converters
• PCB: 8-layer PCB for improved signal traces and thermal performance
• PCIe Slot: Reinforced steel slot (PCIe 4.0 compatible)
• Memory: DDR5 overclocking support, profiles for EXPO/XMP (supports high-frequency OC up to and beyond 7200 MHz depending on modules)
• Overclocking: Blazing OC Tuner, Precision Boost Overdrive (PBO)
• Audio: Nahimic Audio engine with noise suppression, echo cancellation and Sound Tracker
• RGB: Onboard RGB header and addressable RGB header (supports WS2812B, up to 5V/3A, 80 LEDs max; standard 5050 RGB up to 12V/3A)
• Storage: Blazing M.2 supports PCIe 5.0 bandwidth (up to theoretical 128GB/s)
• LAN: Phantom Gaming 2.5 Gb/s Ethernet
• Wi‑Fi: Wi‑Fi 6E (802.11ax, 6 GHz support)
• Convenience: EZ Setting Auto Driver Installer, USB BIOS Flashback (BIOS update without CPU/RAM)

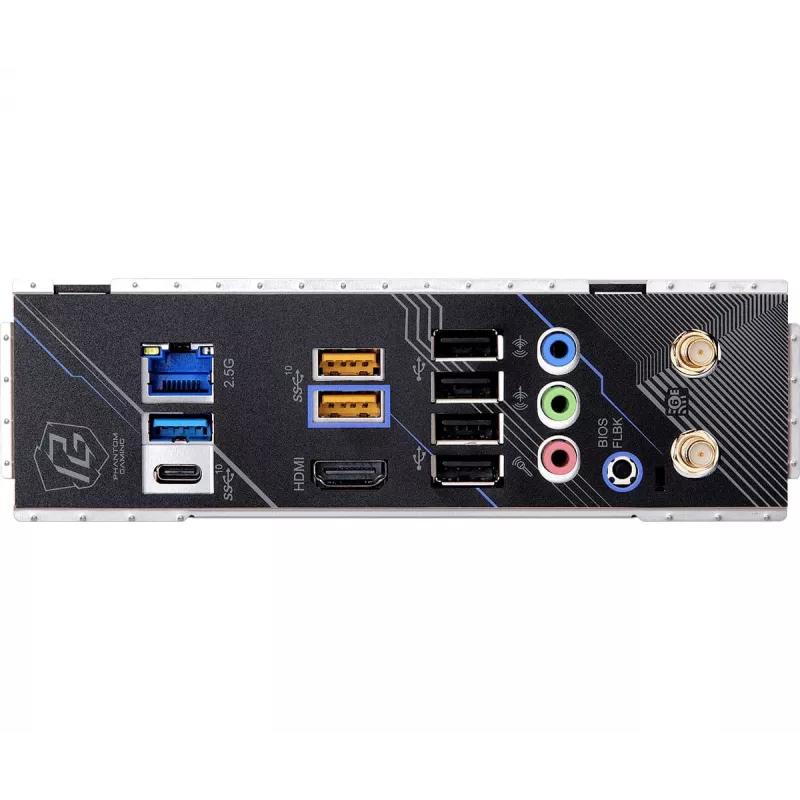

• I/O shield: Adjustable pre-mounted I/O shield for easier installation

How to use

Install the motherboard into the chassis, connect the CPU, memory modules rated for EXPO/XMP if planning to overclock, storage devices and power connectors. For memory overclocking enable the pre-tested EXPO/XMP profiles in BIOS or use the Blazing OC Tuner in the operating system to switch between OC and PBO modes automatically based on CPU current. To update BIOS without CPU or RAM, use the USB BIOS Flashback feature following the motherboard manual. Install network and audio devices normally; EZ Setting’s Auto Driver Installer can download and install necessary drivers after the initial OS setup. Connect RGB and addressable RGB devices to the appropriate headers and configure lighting via Polychrome RGB software.

Recommendations

Ensure adequate cooling before enabling PBO or heavy memory overclocking, verify memory module compatibility with EXPO/XMP and check the motherboard Memory QVL for supported modules. Perform overclocking at your own risk; back up important data and proceed gradually while monitoring system stability and temperatures.
