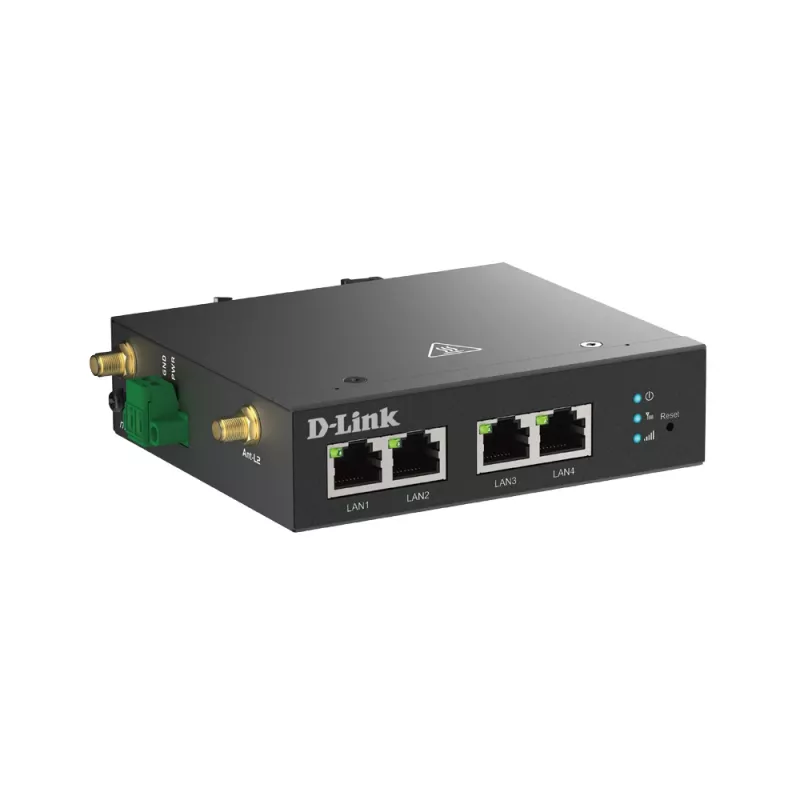

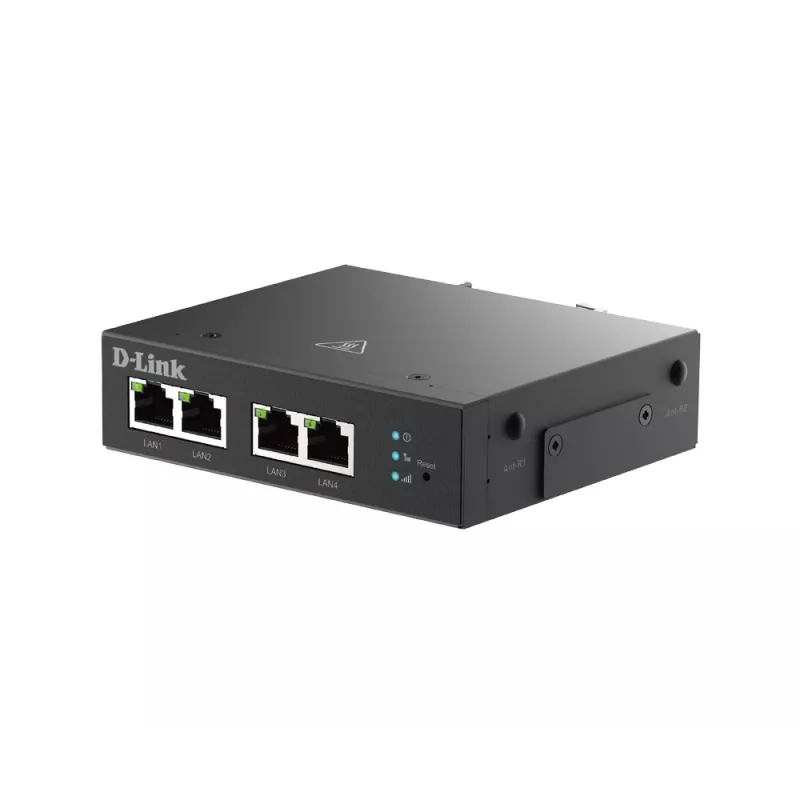

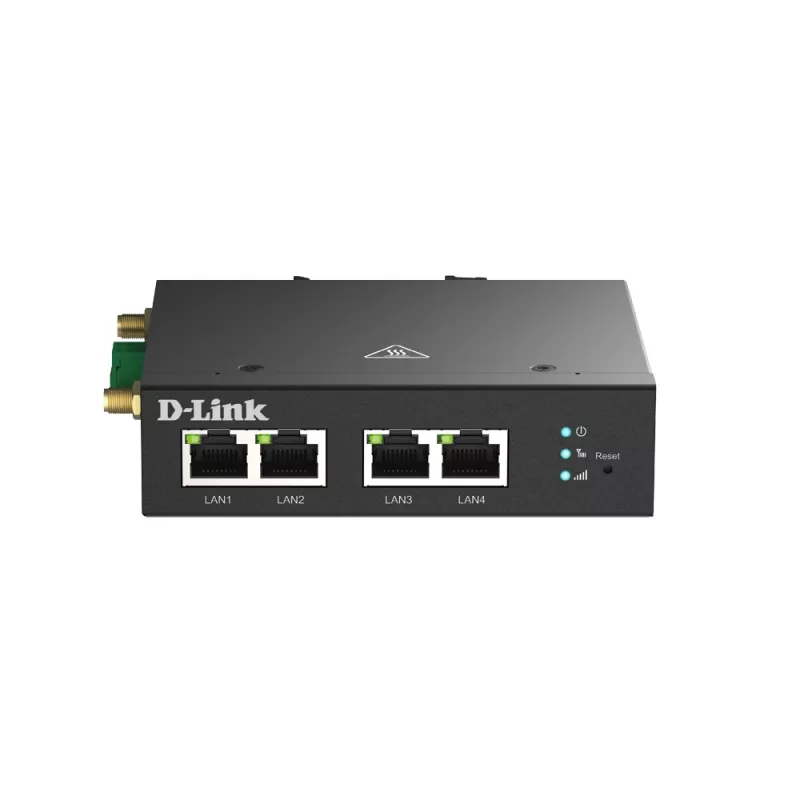

Mobilný router D-Link DWM-314-T 4G LTE VPN čierny montáž na lištu

The D-Link DWM-314-T is a 4G LTE M2M VPN cellular router in a compact, rugged black housing designed for DIN‑rail or wall mounting. It provides reliable 4G connectivity for machine-to-machine applications, includes four Fast Ethernet LAN ports (10/100 Mbps) for local device connections, and supports secure remote access via VPN and SSH. The unit is built with a corrosion‑resistant zinc‑plated steel case and wide operating ranges to ensure continuous operation in harsh environments.

Advantages

The router offers plug-and-play setup with auto‑MDI/MDIX on all ports and a simple Nano‑SIM (4FF) insertion for immediate network access. It integrates SMS event management for remote operation, a built‑in multiport switch to reduce additional equipment, and centralized device control through the D‑ECS management platform. Secure VPN tunnels protect transmitted data, while the industrial-grade casing provides durability and stable performance under demanding conditions.

Suitable for

• Smart parking systems and parking payment terminals
• Remote M2M installations requiring 4G connectivity
• Industrial automation and monitoring in harsh environments
• Deployments needing secure remote access and centralized management

Key specifications

• Model: D-Link DWM-314-T
• Network: 4G LTE
• LAN: 4 × Fast Ethernet ports (10/100 Mbps), auto‑MDI/MDIX
• Security: VPN support, SSH algorithms
• SIM: Nano‑SIM (4FF)
• Mounting: DIN‑rail and wall mount options
• Enclosure: Corrosion‑resistant zinc‑plated steel, black
• Use case: M2M/IoT connectivity

How to use

Install the modem on a DIN‑rail or mount it to a wall in a location with adequate cellular signal. Insert a Nano‑SIM (4FF), connect local devices to the four Fast Ethernet ports, and apply power. Configure VPN, SMS event settings and network parameters either on the device or via the D‑ECS management platform for centralized control. The auto‑MDI/MDIX feature simplifies cabling by allowing either straight or crossover Ethernet cables.

Recommendations

Place the router where it receives stable 4G signal and allow sufficient ventilation. Use secure VPN profiles and keep firmware updated; monitor SMS event alerts and manage devices through D‑ECS to reduce on‑site maintenance in hazardous locations.
