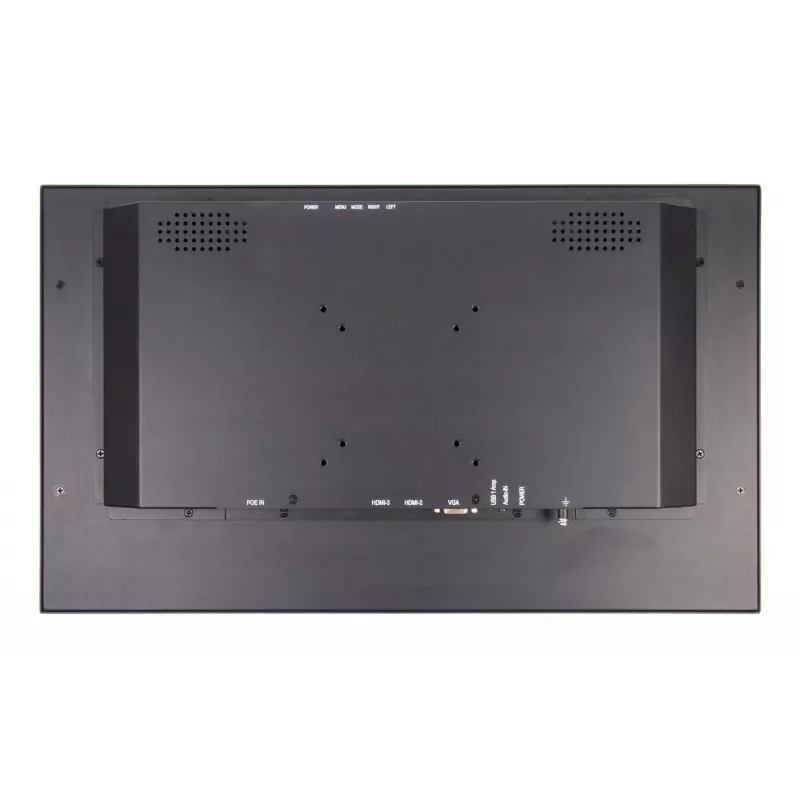

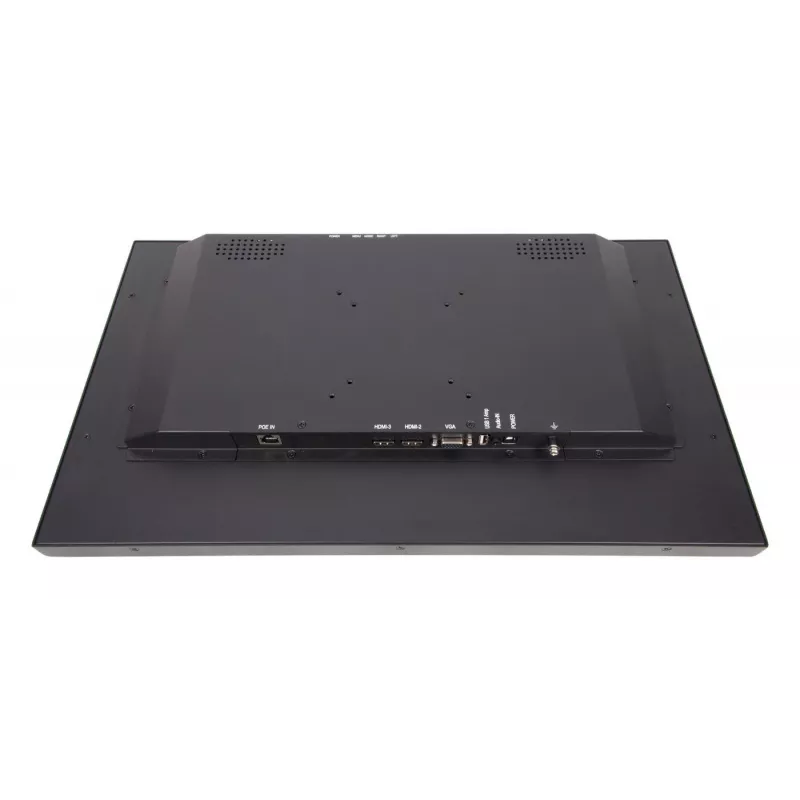

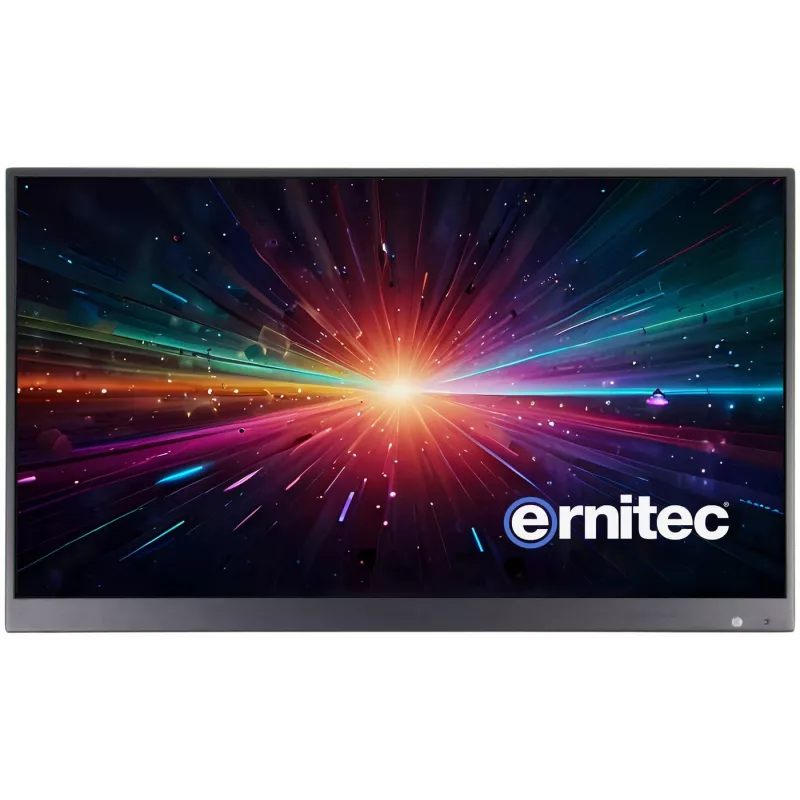

Monitor ERNITEC 0070-24122-HDMIPOE — profesionálny displej s podporou HDMI a PoE

ERNITEC 0070-24122-HDMIPOE is a professional CCTV monitor in the SmartView Series designed for security, control room and industrial applications. The monitor integrates an HDMI-over-IP receiver and supports HDMI video transmission and power delivery over a single CAT5e/6 cable, enabling straightforward integration into existing AV and network setups for continuous video monitoring.

Advantages

The built-in HDMI-over-IP receiver removes the need for external receivers, reducing cable clutter and installation steps. Full HD (1080p) display provides clear and detailed video suitable for surveillance tasks. Plug & Play installation and compatibility with PoE injectors or switches simplify deployment and power management, while support for transmission distances up to 100 meters over standard Ethernet cabling expands placement options in control rooms, retail and industrial environments.

Suitable for

• Security control rooms and monitoring centres
• Retail and commercial surveillance installations
• Industrial monitoring stations and machine vision interfaces
• Remote viewing hubs and distributed video display points

Key specifications

• Model: ERNITEC 0070-24122-HDMIPOE
• Display resolution: Full HD 1080p
• Video interface: HDMI-over-IP receiver (integrated)
• Cable: HDMI video and power over single CAT5e/6 (with Ernitec transmitter)
• Max transmission distance: up to 100 m over standard Ethernet cabling
• Power: PoE compatible (works with PoE injectors or PoE switches)
• Included: Monitor with integrated receiver, HDMI-over-IP transmitter box, PoE injector, quick start guide

How to use

Connect the HDMI-over-IP transmitter box to your video source and link the transmitter to the ERNITEC monitor using a single CAT5e/6 cable. If using PoE, connect the cable to a PoE injector or PoE-capable switch to provide power and video simultaneously. Power on the monitor and source; the integrated receiver will automatically detect the incoming HDMI stream for immediate display. For distances up to 100 metres use standard Ethernet cabling rated CAT5e or CAT6 and verify cable integrity for reliable transmission.

Recommendations

For stable long-distance performance, use high-quality shielded CAT6 cables and keep network traffic on a separate VLAN or dedicated switch when possible. Ensure the HDMI-over-IP transmitter and PoE equipment are compatible with Ernitec specifications and follow the quick start guide for initial setup and firmware updates.
