Montážna sada Ergotron 97-855

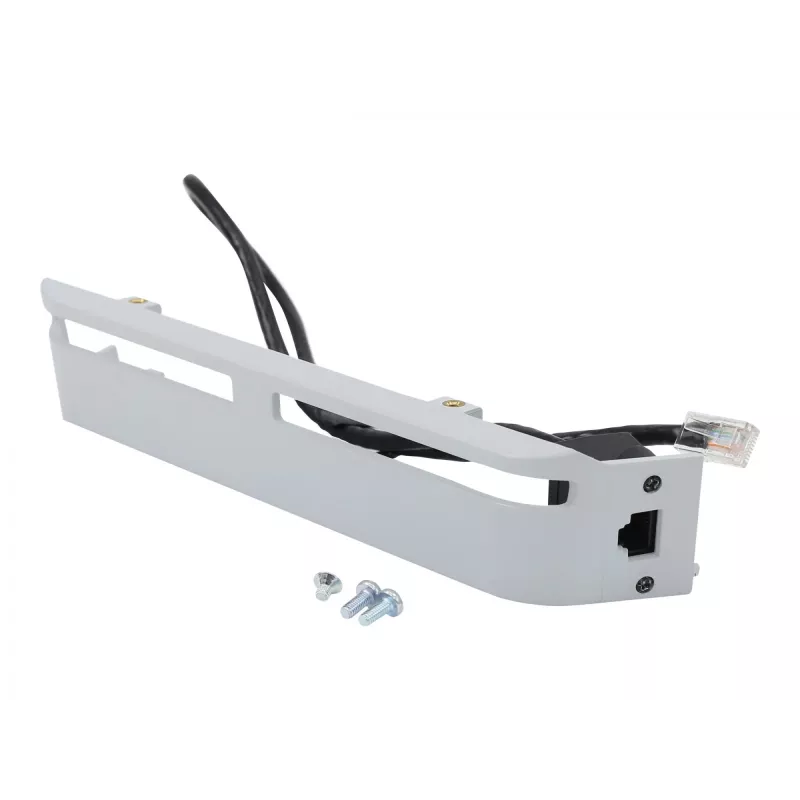

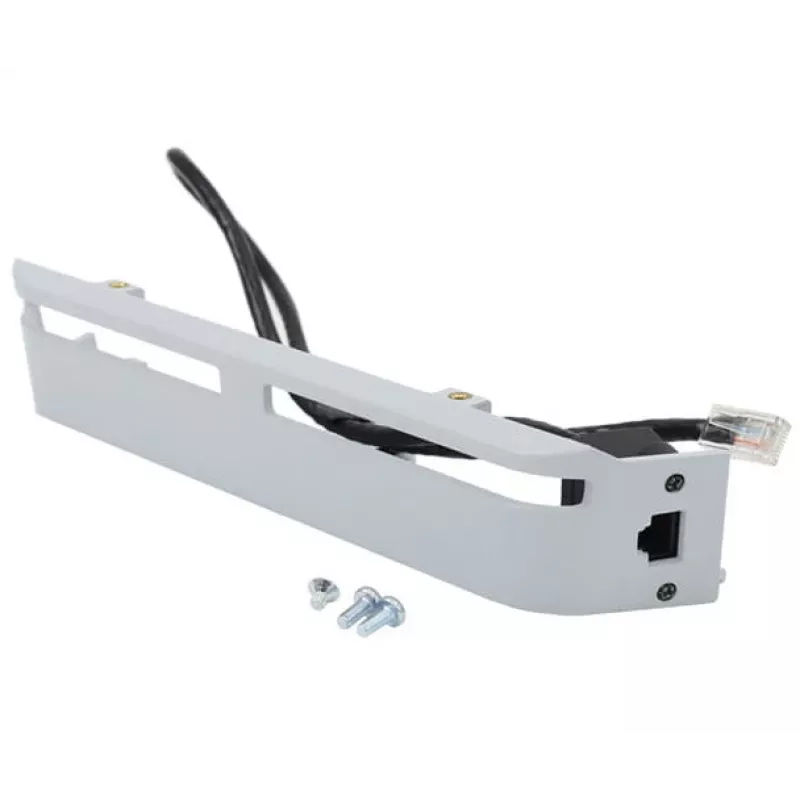

The Ergotron 97-855 mounting kit is a grey side cover panel designed for SV40, SV41, SV43 and SV44 multimedia carts. It provides an external Ethernet interface while keeping the internal computer hardware secured within the cart’s head unit, enabling network access when wireless connections are not available.

Advantages

This mounting kit offers a discreet external network port that preserves internal hardware security and prevents interference with other components. Installation is simple and requires removal and reattachment of only three screws, enabling quick setup or replacement. The grey finish matches the cart’s appearance for a professional, unobtrusive look.

Suitable for

• SV40, SV41, SV43 and SV44 Ergotron multimedia carts
• Situations requiring wired network access for software updates or secure connections
• Environments where preserving internal hardware security is important

Key specifications

• Manufacturer: ERGOTRON
• Model / MPN: 97-855
• Compatible models: SV40, SV41, SV43, SV44
• Colour: Grey
• Package dimensions (W×D×H): 280 mm × 80 mm × 100 mm
• EAN: 0698833046809

How to use

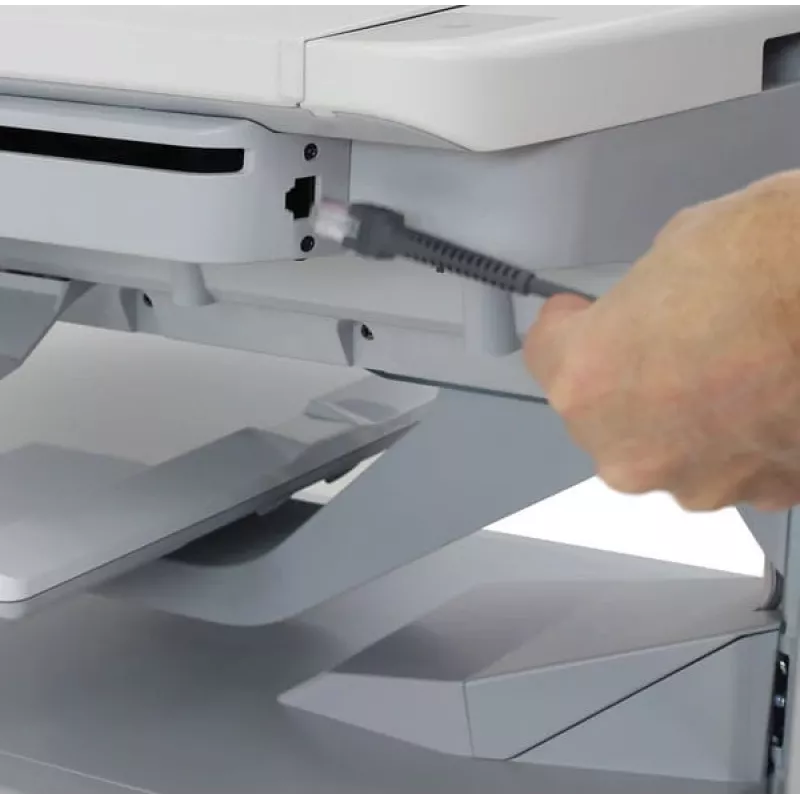

Power down and secure the multimedia cart according to the manufacturer’s safety instructions. Remove the existing side cover by loosening three screws, align the Ergotron 97-855 panel with the mounting points, and fasten the screws to secure the new panel. Connect an Ethernet cable to the external port to establish a wired network connection for the cart’s head unit.

Recommendations

Use only the specified screws and follow Ergotron’s installation guidelines. If performing firmware or software updates, ensure the cart and connected computer are powered appropriately and that network access is configured before starting the update.
