Montážna sada METZ CONNECT 1308895521-I čierna

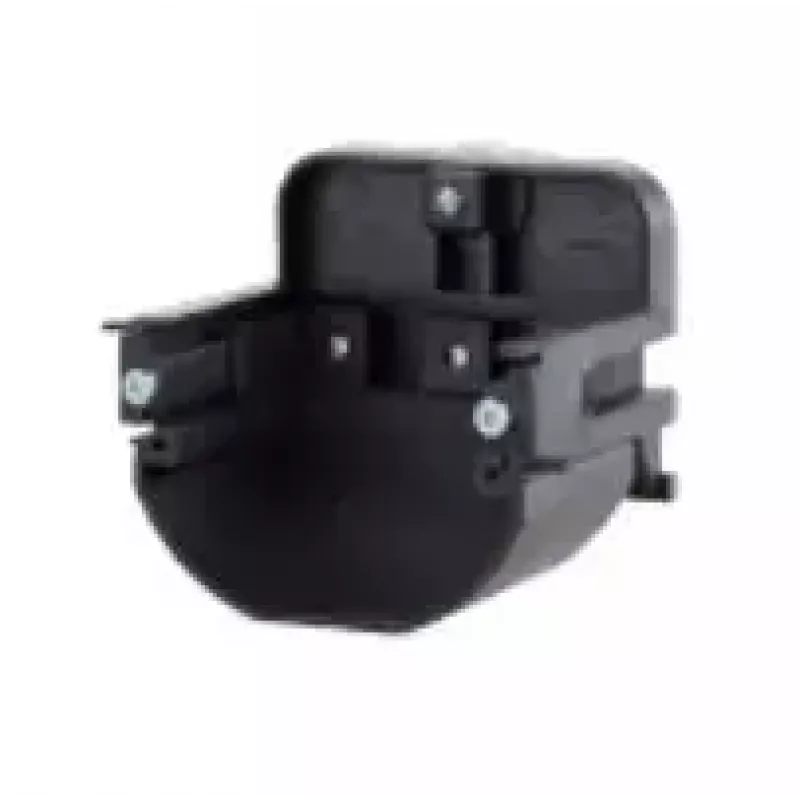

Mounting Kit METZ CONNECT 1308895521-I Black is a mounting bracket designed for compact installation of wall outlets inside wall conduits, providing the required bending radii for copper and fiber optic data cables. The bracket can be supplied with a plug-in separation cup to isolate data outlets from mains voltage-carrying parts. Multiple mounting heights and adapter compatibility allow installation in a range of common cable duct systems.

Advantages

The kit supports secure and space-saving mounting of wall outlets in conduit systems and preserves the maximum bending radii required for copper and fiber optic cables. Available with or without a separation cup for electrical isolation, and offered in several height variants to match different duct manufacturers. Designed for professional installations and compatibility with standard adapters.

Suitable for (tasks / use cases)

• Installing data and communication wall outlets in wall conduits
• Maintaining correct cable bending radii for copper and fiber optic cables
• Separating low-voltage data outlets from mains using the plug-in separation cup
• Retrofit or new-build installations using compatible cable duct systems

Key specifications

• Manufacturer: MetzConnect
• Model / MPN: 1308895521-I
• EAN: 4250184105237
• Color: Black
• Mounting heights and variants: 50 mm (white), 50 mm with separation cup (white), 52 mm (black), 52 mm with separation cup (black), 55 mm (black), 55 mm with separation cup (black)
• Compatible cable ducts: 52 mm mounting height for Niedax, Nowaplast, Rehau (Signo series); 50 and 55 mm mounting heights for Licatec, PROTEC, GGK, Thorsmann Inka series (with adapters TTI-N70 or N215)

How to use

Select the mounting height and variant that matches the target cable duct system. If required, fit the plug-in separation cup to isolate data outlets from mains-voltage parts. Use the appropriate adapter (TTI-N70 or N215) when installing in Licatec, PROTEC, GGK or Thorsmann Inka series ducts. Install the bracket inside the conduit at the recommended position and secure the wall outlet according to standard installation practice, ensuring cable bending radii are maintained.

Recommendations

Check compatibility of the chosen mounting height and adapter with the specific cable duct manufacturer before installation. Use the separation cup when data outlets must be isolated from mains-voltage conductors and follow local electrical installation regulations.
