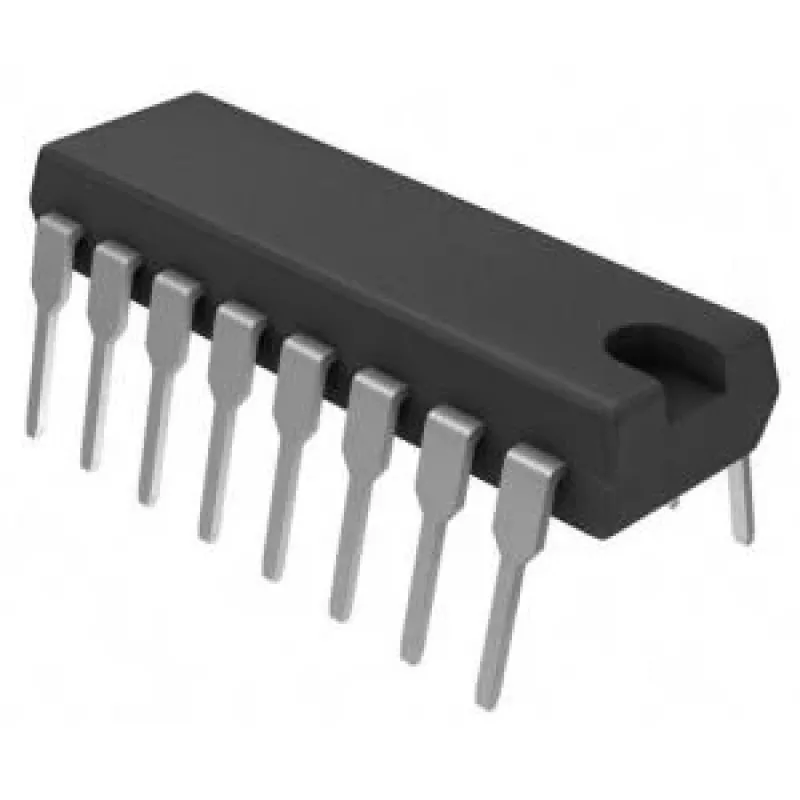

Multiplexer IC Texas Instruments MPC508AP PDIP-16

Texas Instruments MPC508AP is a multiplexer interface integrated circuit in a PDIP-16 package. Designed for routing and selecting signals in electronic systems, this DIP-16 multiplexer is suitable for prototyping on through-hole boards and for use as a replacement in legacy equipment. The device supports both analog and digital signal switching where a compact, industry-standard dual in-line package is required.

Advantages

The PDIP-16 form factor simplifies assembly on breadboards and perfboards and facilitates manual soldering and socketing for rapid replacement. The integrated multiplexer reduces the need for discrete switching components, saving board space and simplifying circuit design. Compatibility with typical logic levels makes the device versatile for a range of control and test applications.

Key specifications

• Package: PDIP-16 (through-hole dual in-line package)
• Function: multiplexer interface for signal routing and channel selection
• Signal type: suitable for analog and digital signals
• Pin count: 16 pins for input/output and control connections
• Mounting style: through-hole for breadboard and perfboard compatibility

How to use

Integrate the PDIP-16 multiplexer into your circuit by inserting it into a compatible socket or soldering it to a through-hole PCB following standard pinout orientation. Connect control lines to the select inputs and route source and destination signals to the multiplexer input/output pins according to your schematic. Ensure supply rails and signal reference levels match the device's required operating conditions, and observe correct power-up sequencing where applicable.

Recommendations

For reliable operation, use a proper socket if you expect frequent replacement or reconfiguration. Verify signal voltage ranges and provide decoupling capacitors on supply pins to minimize noise. When replacing devices in legacy equipment, confirm pin compatibility and check for any required pull-up or pull-down resistors on control lines.
