Nabíjací kábel pre elektromobily ROLINE Type 2 – 5 m, 22 kW (3-fázový), 32 A, 480 V, čierny

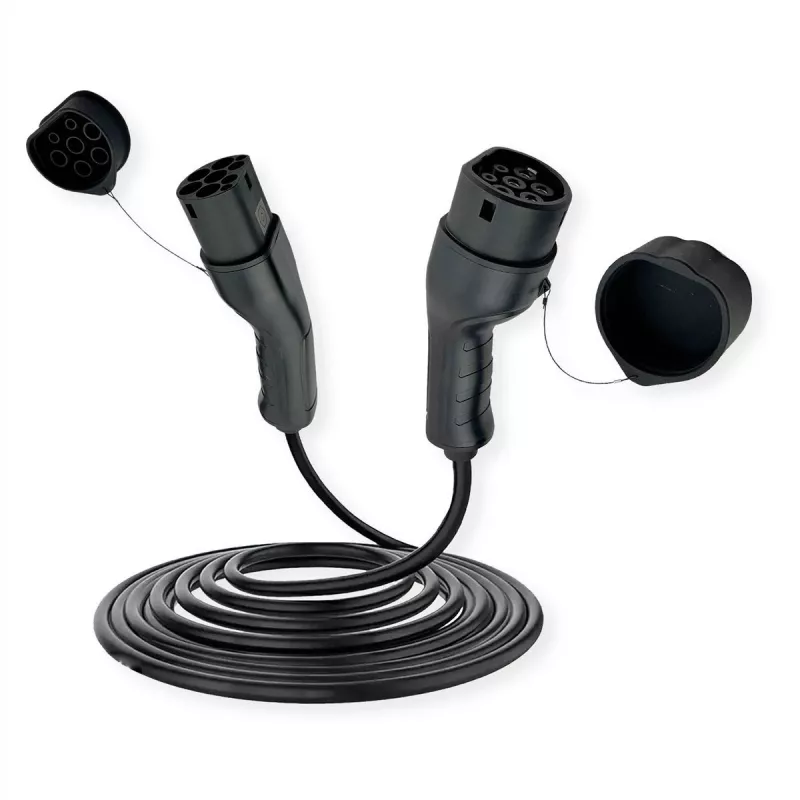

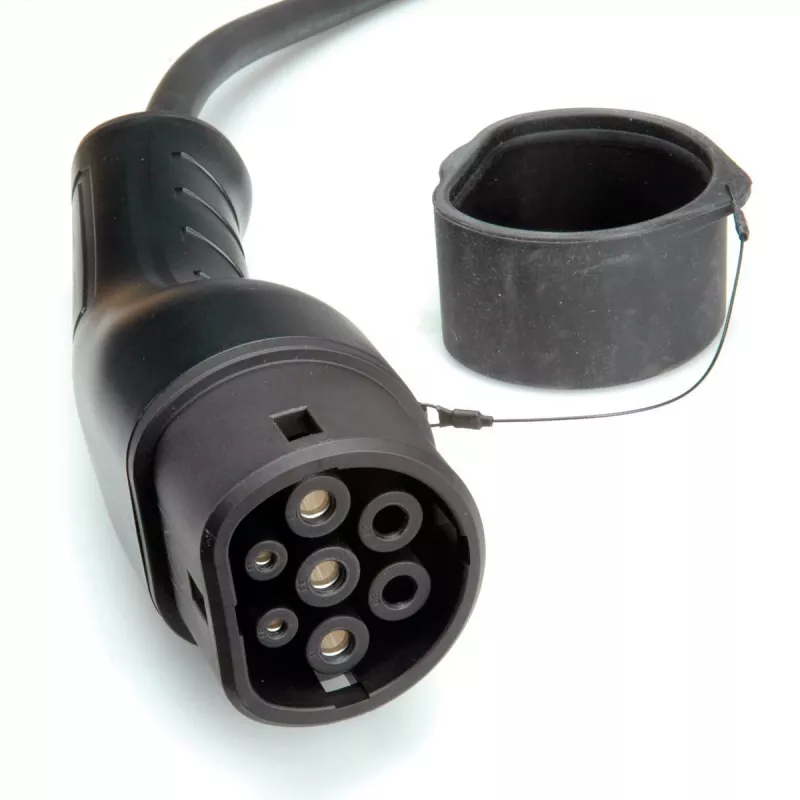

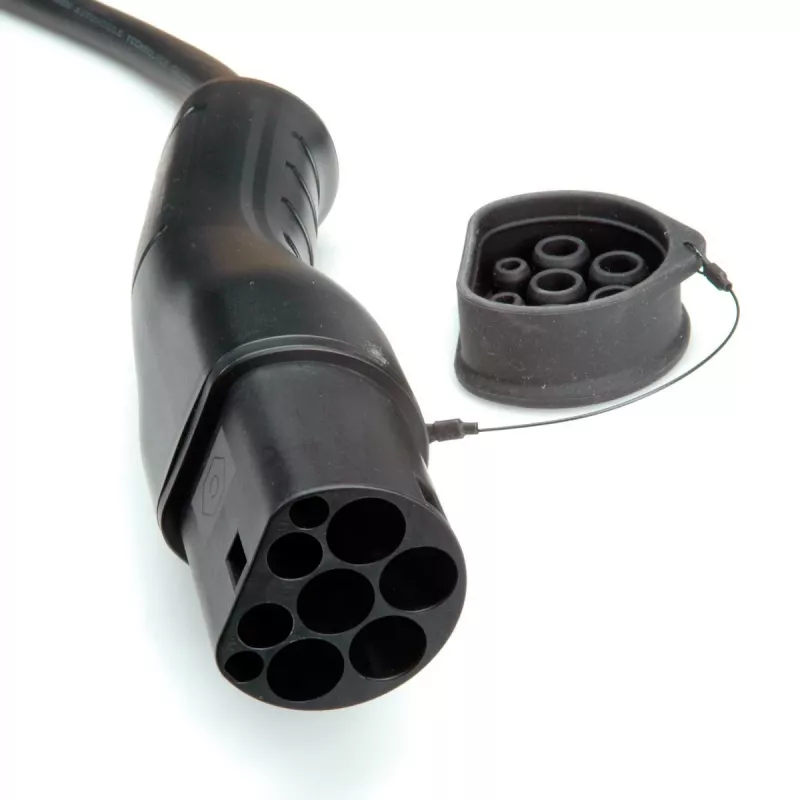

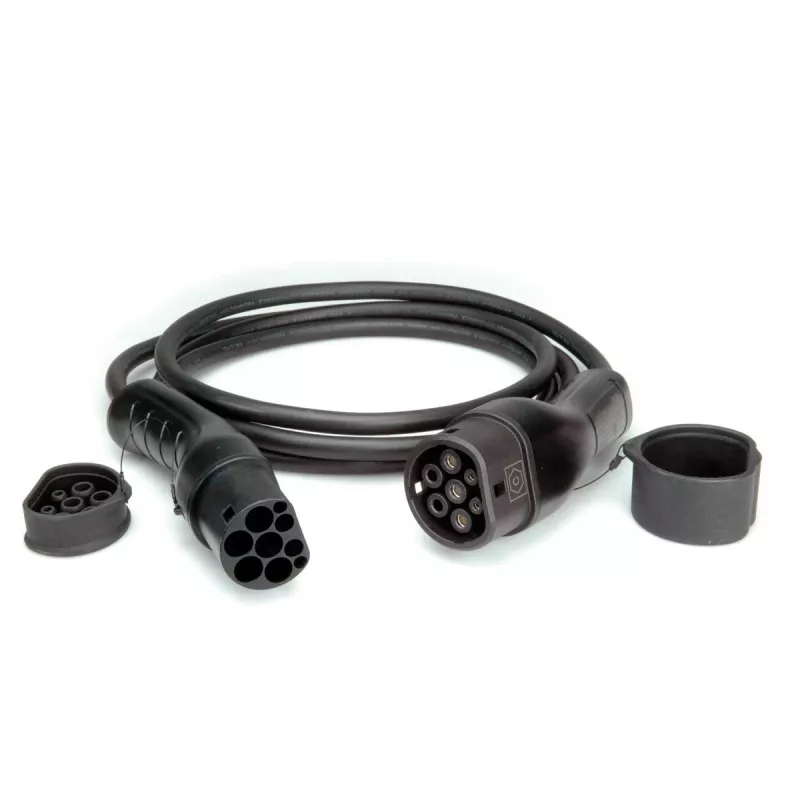

ROLINE Type 2 electric vehicle charging cable, 5 m length, designed for three-phase charging up to 22 kW. The cable features Type 2 connectors on both ends and a robust black insulation suitable for regular use at home, workplace or public charging stations. Rated for continuous operation at up to 32 A and an operating voltage of 480 V, this single-piece cable provides a straightforward connection for compatible EVs and PHEVs with Type 2 inlets.

Advantages

The cable supports three-phase charging to reduce charging time when connected to a compatible charger and vehicle. Construction and insulation materials are selected for outdoor and indoor use, offering resistance to wear and handling during regular plugging and unplugging. A 5 m length balances vehicle reach and portability, enabling flexible positioning relative to charging points without the need for extensions. Compatibility with standard Type 2 interfaces ensures broad vehicle support.

Suitable for

• Charging electric vehicles and plug-in hybrid vehicles equipped with Type 2 inlets
• Home garages and private driveways
• Workplace charging points and shared parking
• Public AC charging stations that accept Type 2 connectors

Key specifications

• Cable length: 5 m

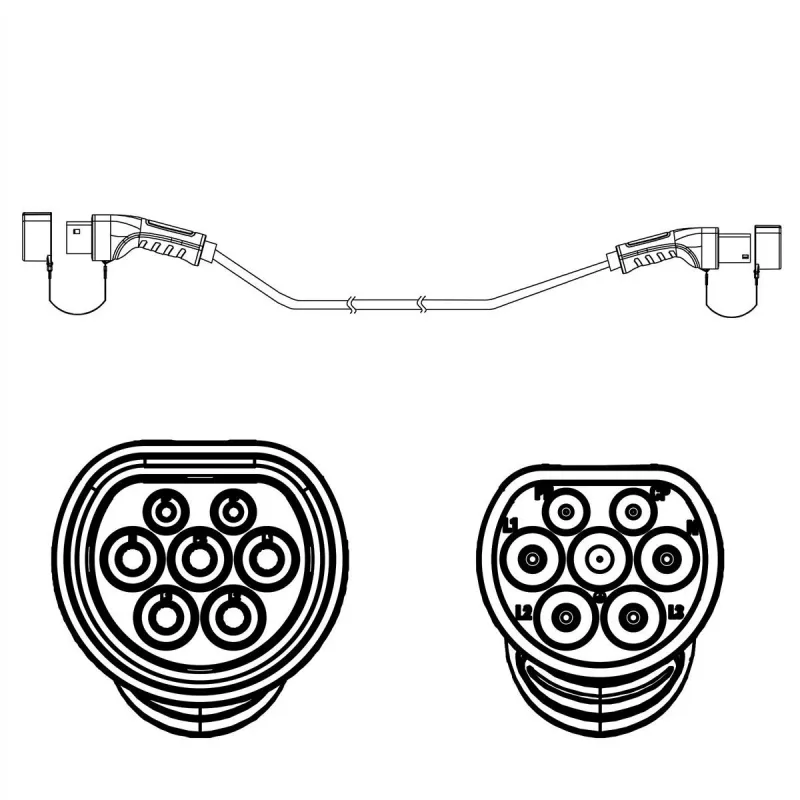

• Connector type: Type 2 on both ends (Mode 3 charging)
• Maximum power: up to 22 kW (three-phase)
• Rated current: 32 A
• Operating voltage: up to 480 V
• Color: black
• Quantity supplied: 1 piece

How to use

Ensure both the charging station and the vehicle support Type 2 connections and the specified current and voltage ratings before use. Park the vehicle within reach of the 5 m cable and turn off the vehicle if required by the manufacturer. Insert the Type 2 connector firmly into the vehicle inlet until it locks, then connect the other end to the charging station. Follow the charger’s display or vehicle indicators to confirm that charging has started. At the end of the session, stop charging via the station or vehicle, unlock the connector if necessary, and remove the cable from both ends, storing it on a suitable hook or in a dry place.

Recommendations

For safe and reliable operation, use the cable within its specified ratings (32 A, 480 V, up to 22 kW) and avoid exposing connectors to prolonged moisture or debris. Inspect the cable and connectors regularly for damage, and do not use if the insulation or connector housing is compromised. When parking on public streets, secure the cable to minimize tripping hazards and follow local regulations for EV charging.
