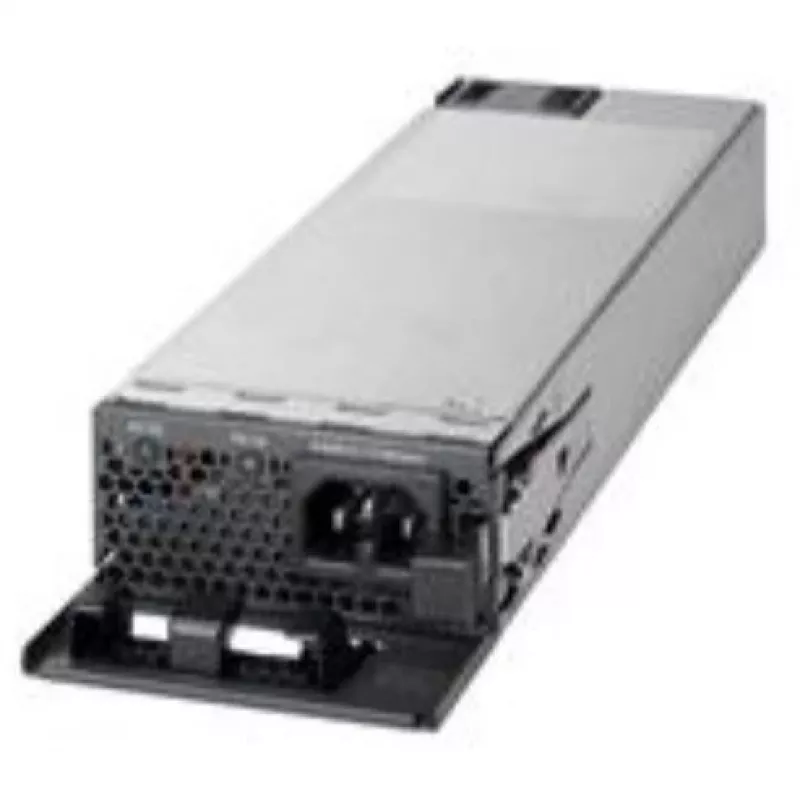

Napájací zdroj Cisco 715W AC 80+ PLATINUM

The Power Supply Unit Cisco 715W AC 80+ PLATINUM (PWR-C1-715WAC-P=) is a compact, high-efficiency replacement power module compatible with Cisco Catalyst 9300 series switches. It provides a total power output of 715 W, accepts AC input from 100–240 V at 50–60 Hz, and carries an 80 PLUS Platinum certification for improved energy efficiency. The unit’s dimensions (40.1 mm × 82.5 mm × 309.9 mm) and 1.2 kg weight make it suitable for space-constrained installations requiring dependable power delivery.

Advantages

The Cisco 715W AC power supply delivers stable 715 W output while reducing energy losses thanks to its 80 PLUS Platinum efficiency rating. Its compact form factor and moderate weight simplify installation and replacement in Catalyst 9300 chassis. As an original Cisco part (MPN PWR-C1-715WAC-P=, EAN 0889728133586), the unit ensures compatibility and supports existing Catalyst 9300 redundancy and power-management features.

Suitable for

• Replacement or spare power module for Cisco Catalyst 9300 series switches
• Environments requiring energy-efficient PSU with 80 PLUS Platinum certification
• Network racks with limited internal space where compact PSU dimensions are beneficial

Key specifications

• Total power: 715 W
• AC input voltage: 100–240 V
• Frequency: 50–60 Hz
• Certification: 80 PLUS Platinum
• Dimensions (W×D×H): 40.1 mm × 82.5 mm × 309.9 mm
• Weight: 1.2 kg
• Brand / MPN: Cisco / PWR-C1-715WAC-P=
• EAN: 0889728133586

How to use

Power down the switch or follow the hot‑swap procedure recommended by Cisco for the Catalyst 9300 series. Remove the existing power supply module if applicable, align the Cisco 715W module with the PSU slot, and insert it until it seats and locks. Reconnect the AC power cord to a suitable power source (100–240 V, 50–60 Hz). Verify that the switch recognizes the new module and that power and status indicators report normal operation.

Recommendations

Use only genuine Cisco power supplies to maintain compatibility, support redundancy features, and preserve warranty and service coverage; ensure the device’s power budget and any StackPower or UPOE+ requirements are accounted for when installing this 715 W unit in Catalyst 9300 systems.
