Napájací zdroj White Shark Colonel 600 W

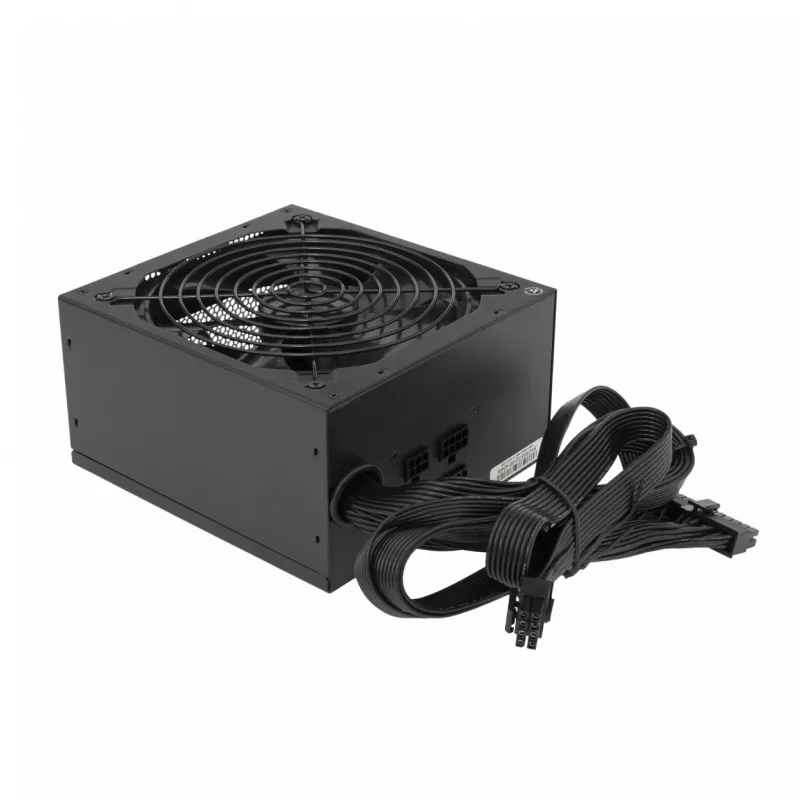

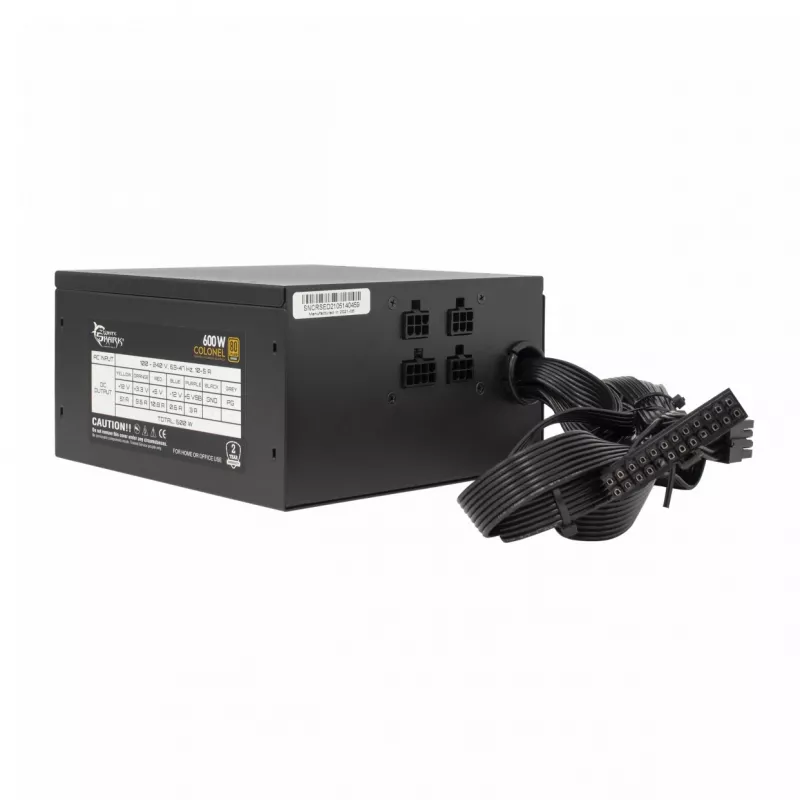

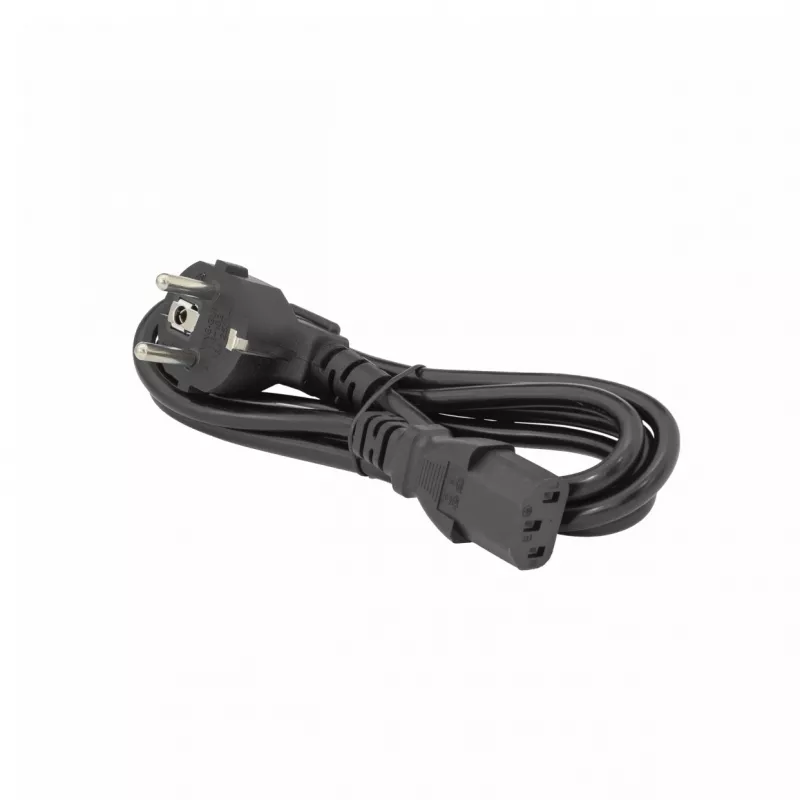

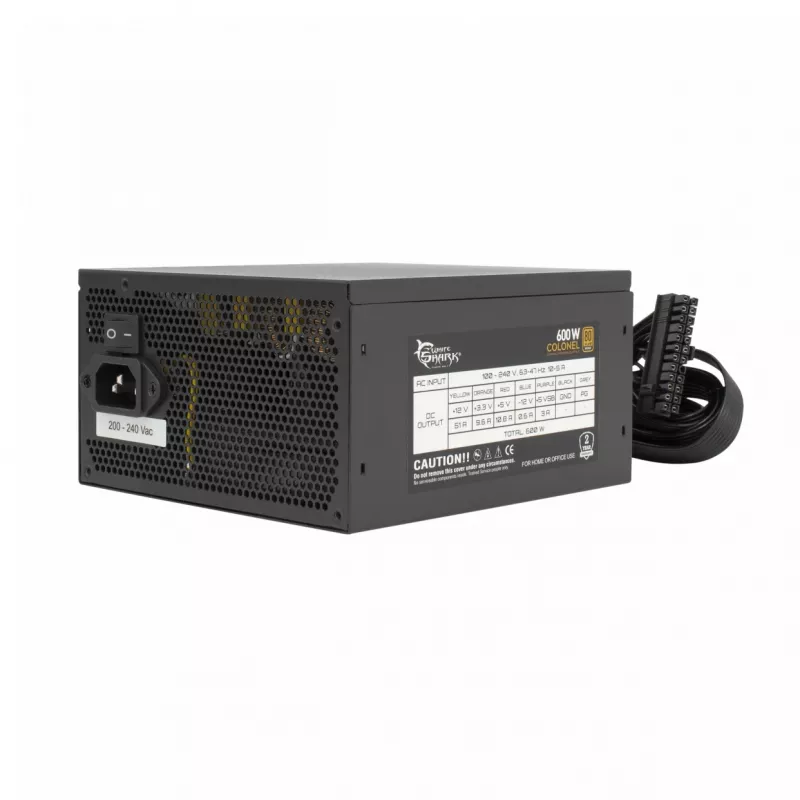

White Shark "COLONEL" ATX power supply delivers 600 W of continuous power in a compact 160 mm length and a weight of 1556 g. This semi-modular unit comes in black, carries an 80 PLUS Bronze efficiency rating and is intended for desktop PCs. It accepts AC input from 100–240 V at 47–63 Hz and includes the main AC cable.

Advantages

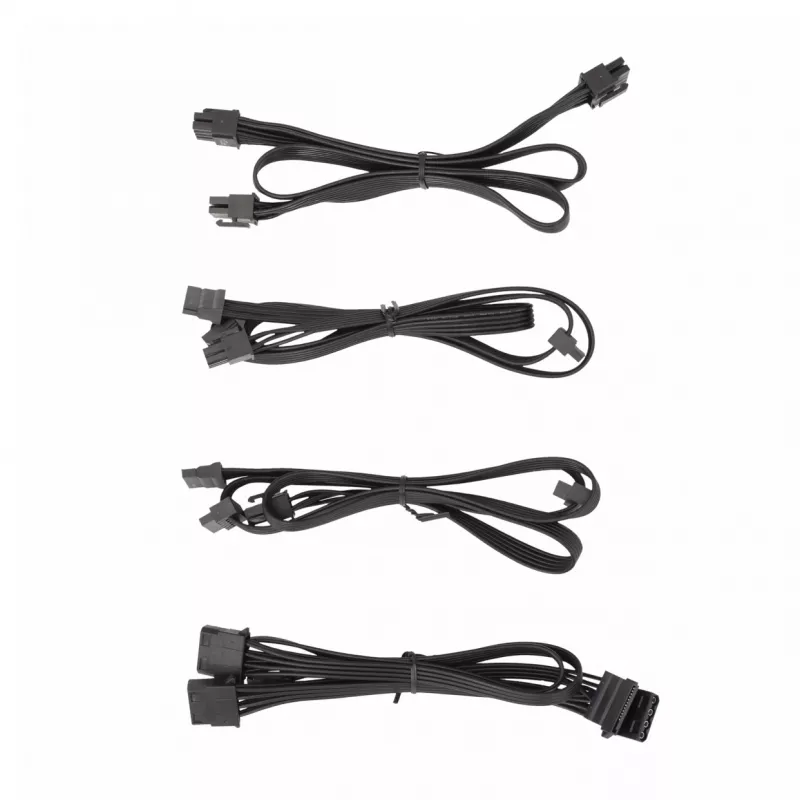

The PSU offers a fully semi-modular cabling layout that simplifies system assembly and cable management while providing multiple connector types: 20+4 pin ATX motherboard connector, one 4/8-pin CPU connector, two PCI‑E 6/8-pin connectors for graphics cards, seven SATA connectors, four Molex connectors and one combined 20+4. Its 140 mm hydraulic bearing fan provides quiet active cooling and reliable airflow. Protection features include OVP (over-voltage), UVP (under-voltage), OPP (over-power), SCP (short-circuit) and SIP, helping to protect connected components. Efficiency is certified by 80 PLUS Bronze to balance performance and energy consumption.

Suitable for

• Home and office desktop PCs requiring up to 600 W supply
• Mid-range gaming systems with one or two graphics cards
• Upgrades where semi-modular cabling and compact PSU length are needed

Key specifications

• Total power: 600 W
• Motherboard connector: 20+4 pin ATX
• CPU connector: 4/8 pin ×1
• PCI‑E connectors: 6/8 pin ×2
• SATA connectors: 7
• Molex connectors: 4
• Fan diameter: 140 mm (hydraulic bearing)
• Efficiency: 80 PLUS Bronze

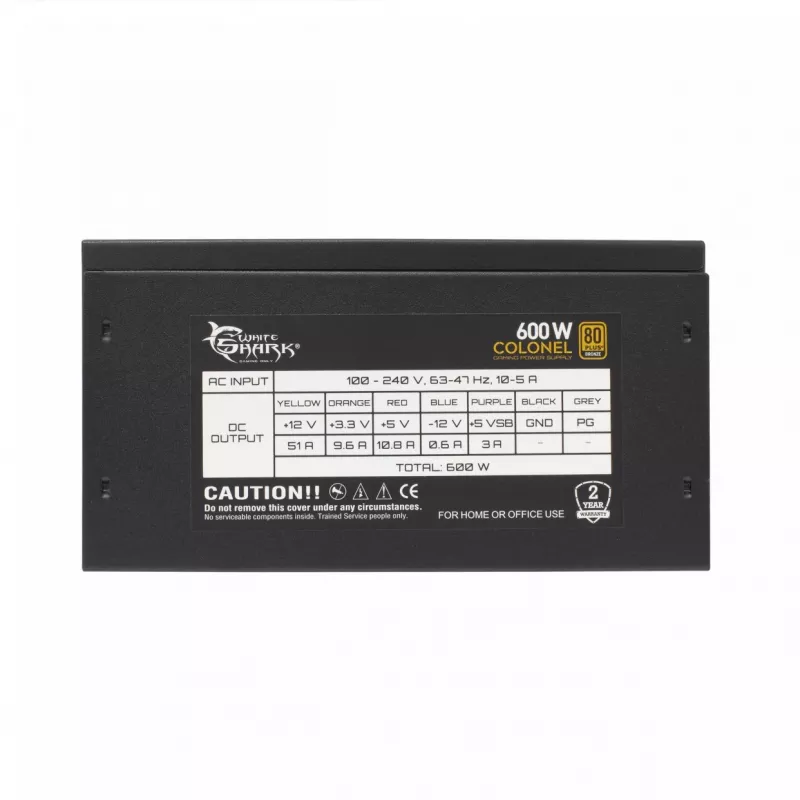

• Input voltage/frequency: 100–240 V, 47–63 Hz
• Form factor/length: ATX, 160 mm
• Weight: 1.556 kg
• Colour: Black

How to use

Install the White Shark Colonel PSU into a compatible ATX case following standard safety precautions: disconnect mains power before installation, secure the PSU to the case using the provided mounting holes, connect the 20+4 pin ATX cable to the motherboard and attach the 4/8 CPU connector and PCI‑E connectors as required by your components. Route SATA and Molex cables to drives and peripherals, fastening loose cables to improve airflow. After connections are complete, reconnect mains power and verify system boots correctly.

Recommendations

Use this 600 W semi-modular unit in systems that match its power and connector profile; avoid exceeding rated loads and ensure adequate case ventilation. For long-term reliability, pair with components whose combined current draw stays within the PSU's rail specifications and follow the manufacturer's safety guidelines.
