Násady na krimpovacie kliešte Cimco 10 6014 čierna robustný dizajn

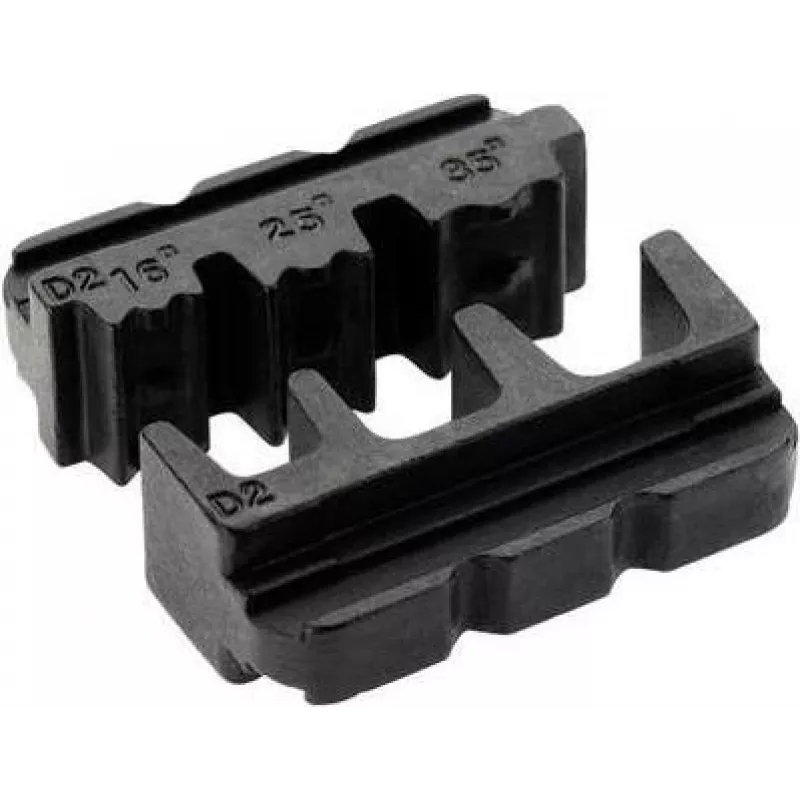

Click 'n' crimp crimping profile inserts for insulated and non-insulated wire end ferrules from 16 mm² to 35 mm² (AWG 5 to AWG 2). Trapezoid-indent crimping (D2) creates an optimised crimp shape and is particularly suitable for thinned-out, finely‑stranded conductors in accordance with IEC 228. Use with the Cimco Cable Crimper 10 6014 to achieve reliable, standard-compliant terminations.

Advantages

The crimping profile inserts provide a secure and repeatable crimp for both insulated and non-insulated ferrules in the specified size range. The trapezoid-indent (D2) geometry delivers an optimised crimp form that improves mechanical retention and electrical contact for finely‑stranded conductors. Quick, tool-compatible click‑inserts enable fast replacement and maintain consistent crimp quality when used with the Cimco 10 6014 cable crimper.

Suitable for

• Insulated wire end ferrules 16 mm²–35 mm² (AWG 5–AWG 2)
• Non-insulated wire end ferrules 16 mm²–35 mm² (AWG 5–AWG 2)
• Thinned-out, finely-stranded conductors according to IEC 228
• Use with Cimco 10 6014 cable crimper for professional electrical terminations

Key specifications

• Compatible ferrule cross-sections: 16 mm²–35 mm² (AWG 5–AWG 2)
• Crimp profile: Trapezoid‑indent (D2)
• Conductor type: Finely‑stranded / thinned‑out conductors per IEC 228
• Compatibility: Click‑inserts for Cimco 10 6014 cable crimper

How to use

Select the insert matching the ferrule size and click it into the die of the Cimco 10 6014 cable crimper. Insert the ferrule with the conductor into the crimping cavity, align as required and operate the crimper according to the tool instructions until the crimp cycle completes. After crimping, inspect the connection for correct deformation and secure mechanical fit before use.

Recommendations

For consistent results, use the inserts only within the specified cross‑section range (16–35 mm²). Replace worn inserts and perform periodic inspection of the crimper and inserts. For use on finely‑stranded conductors, follow IEC 228 preparation guidelines (strip length and conductor manipulation) and use the Cimco 10 6014 in accordance with the manufacturer's instructions.
