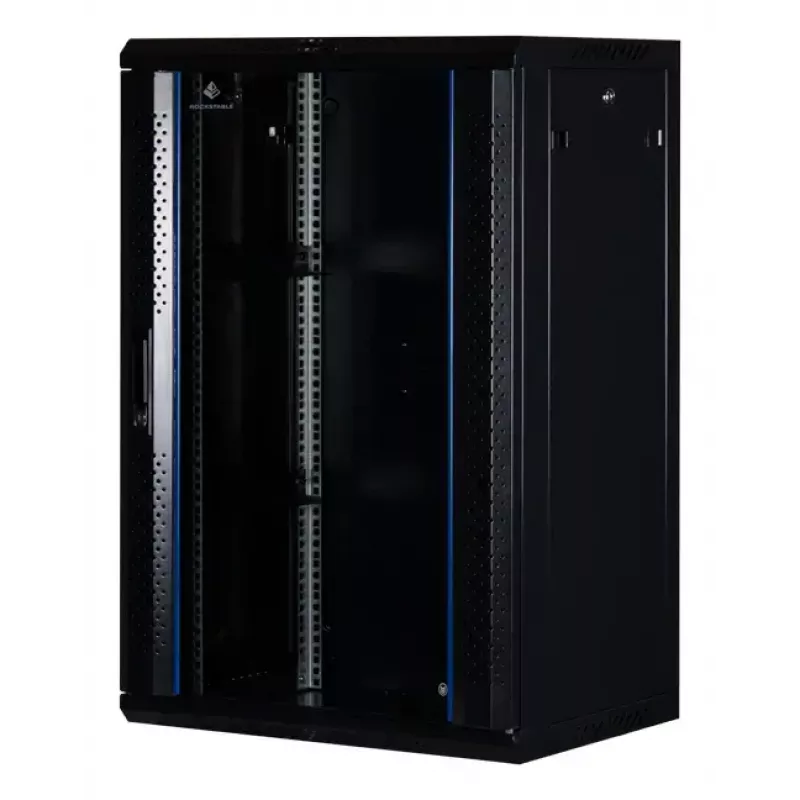

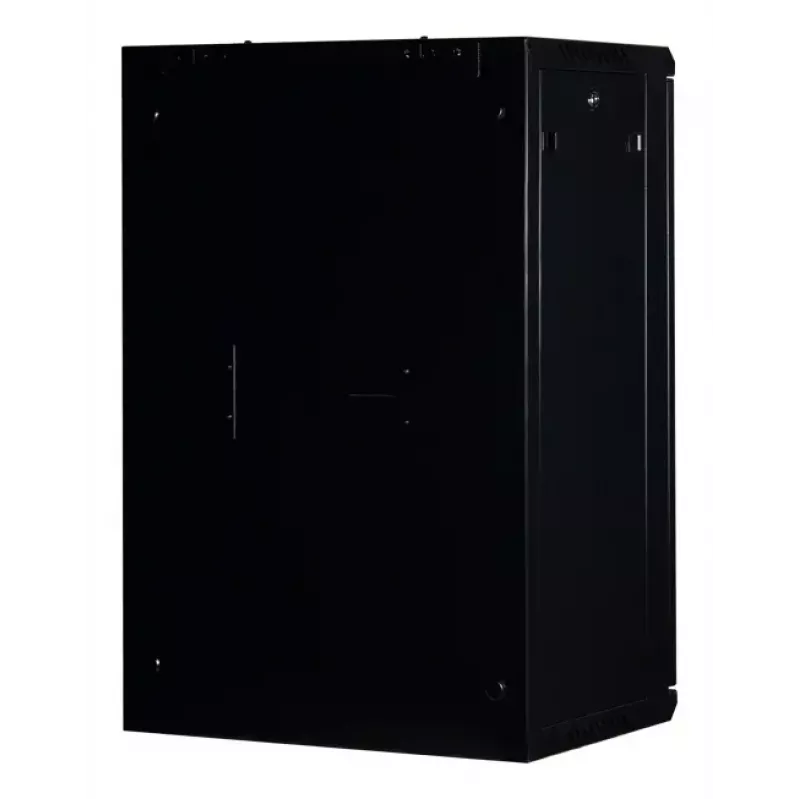

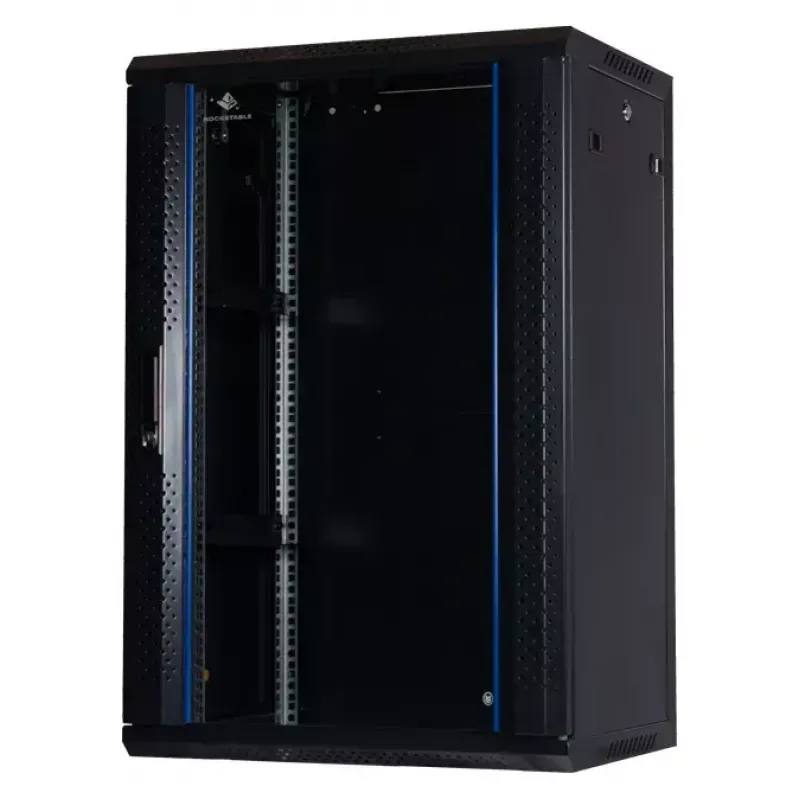

Nástenná skriňa Rockstable RS19-6418 18U 19 palcov bezpečnostné sklo

The Rockstable RS19-6418 is an 18U wall-mounted rack for 19" equipment, combining tempered safety glass and a steel frame to provide secure, visible storage for servers and network devices. Built with galvanized mounting profiles and anti-static (ESD) protection, this pre-assembled cabinet is suitable for home or office installations where compact, stable mounting is required.

Advantages

The cabinet offers high stability and security with a stable steel construction and tempered glass front door. Galvanized mounting profiles include U-division markings front and back for precise mounting, and the unit includes ESD protection. Front and rear doors are lockable and removable, side panels are detachable, and the wide minimum 180° opening angle ensures easy access for installation and maintenance. Airflow is maintained through multiple cut-outs in the front frame and adjustable air shafts at top and bottom. The rack is delivered fully pre-assembled and supports a wide range of Rockstable accessories.

Suitable for

• Small server installations in home or small office environments
• Network switches, patch panels, and 19" rackmount equipment
• Environments requiring visible yet secure equipment access
• Installations where wall-mounted, space-saving racks are needed

Key specifications

• Model: Rockstable RS19-6418
• Capacity: 18U for 19" equipment
• Material: Steel frame with tempered safety glass front
• Mounting: Wall-mounted, pre-assembled

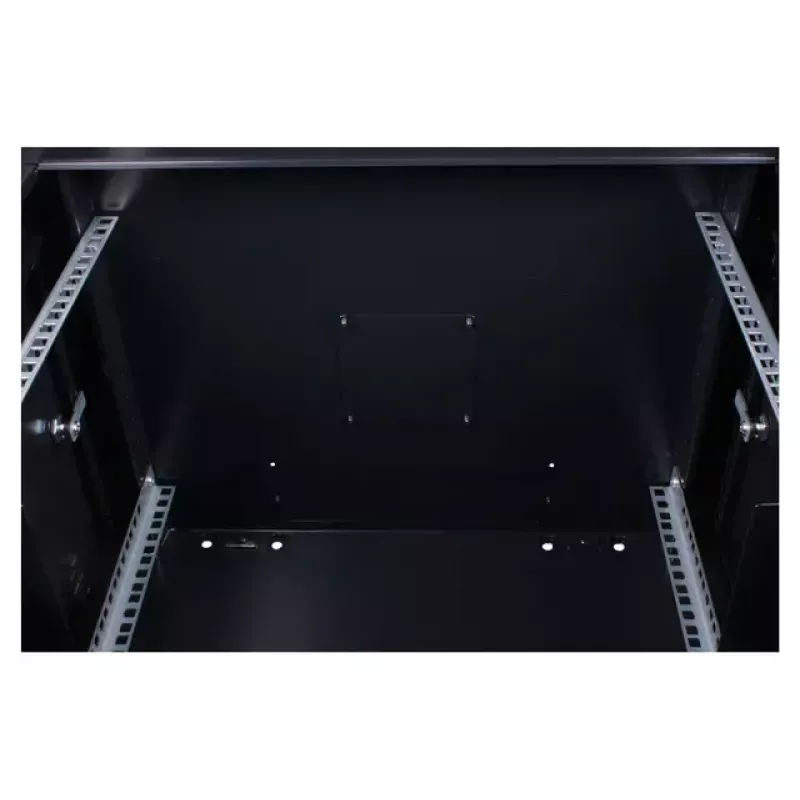

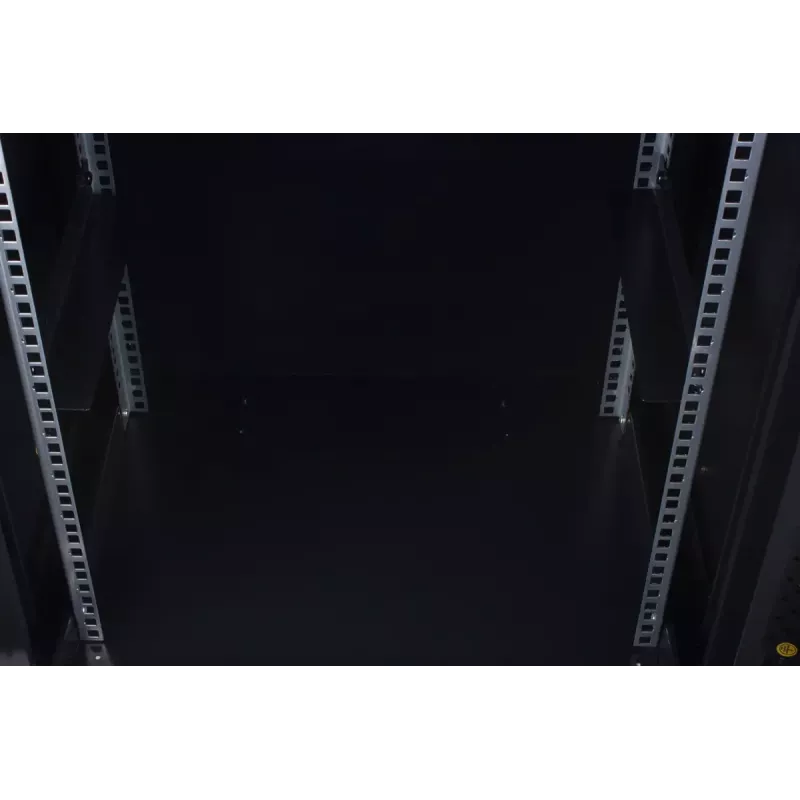

• Mounting profiles: Galvanized with U-division markings and ESD protection

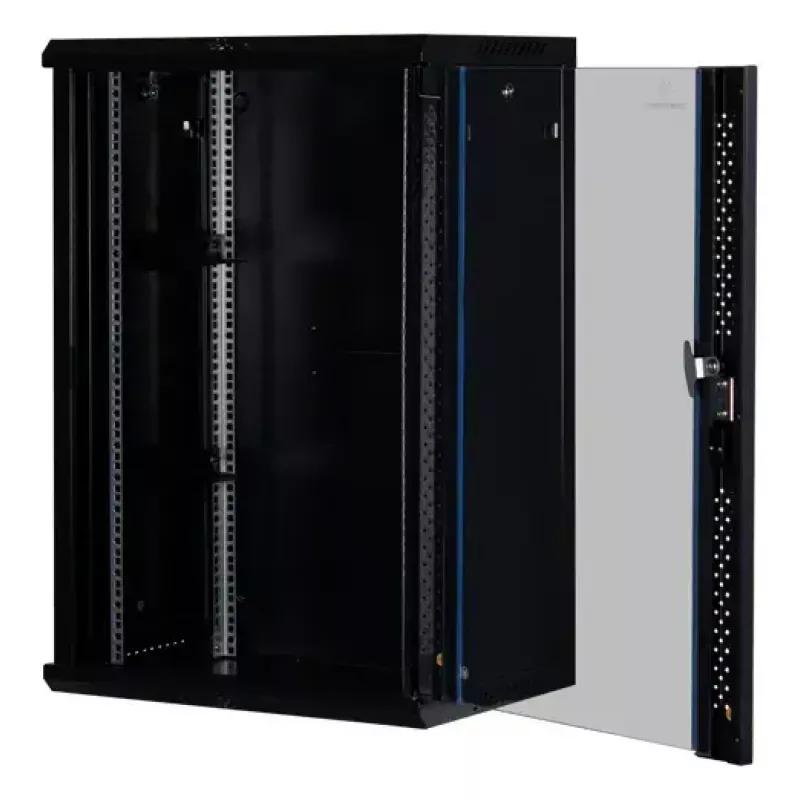

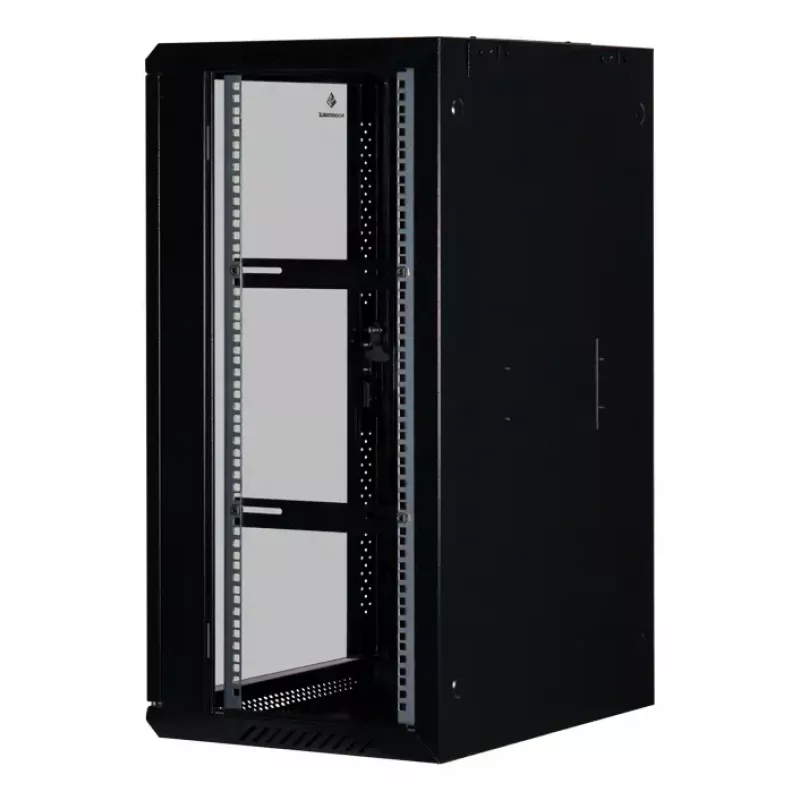

• Doors and panels: Lockable/removable front and rear doors, detachable side walls
• Access: Door hinge reversible (left/right) and opening angle ≥ 180°
• Airflow: Front-frame cut-outs and manually adjustable air shafts top and bottom
• Cable management: Integrated top and bottom cable ducts (cover panels optional)
• Color: Black
• EAN: 4260714310086

How to use

Mount the RS19-6418 securely to an appropriate wall surface following local installation guidelines and the included mounting instructions. Install 19" devices using the galvanized mounting profiles and U-division markings for accurate positioning. Adjust door hinge orientation if needed, open the wide doors for installation and maintenance, and route cables through the integrated top or bottom cable ducts. Use the adjustable air shafts and front-frame cut-outs to maintain appropriate airflow for installed equipment.

Recommendations

For safe operation, ensure the wall and fixings can support the combined weight of the cabinet and mounted equipment (specified load rating: 60 kg). Keep vents unobstructed for proper airflow and consider Rockstable accessories for cable management and additional cooling where required.
